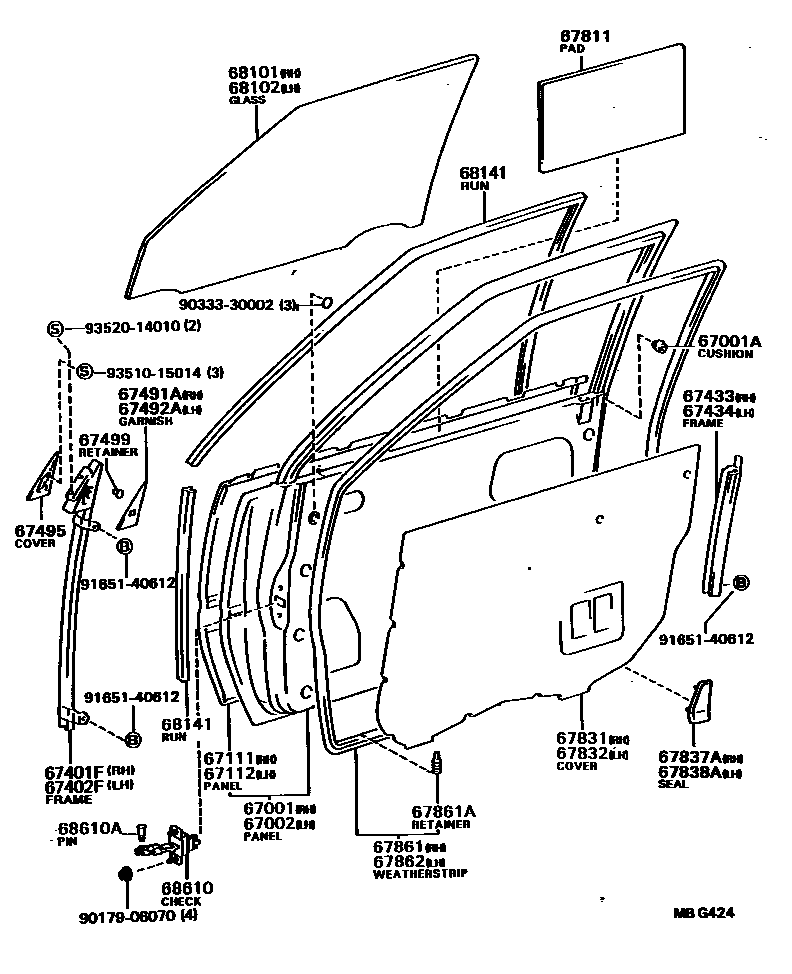

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-32030iCV1#,SV1#..4D198210-198610

main67001-32080iCV1#,SV1#..5D..EUR198210-198610

main67001-32110iSV11..ARL198303-198610

sub67001-32090

67001ACUSHION, FRONT DOOR PANEL

main90541-09006×4iCV1#,SV1#198210-198610

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-32030iCV1#,SV1#..4D198210-198610

main67002-32080iCV1#,SV1#..5D..EUR198210-198610

main67002-32110iSV11..ARL198303-198610

sub67002-32090

67111PANEL, FRONT DOOR, OUTER RH

main67111-32010iSV11..ARL198303-198610

main67111-32020iCV1#,SV1#..EUR198210-198610

67112PANEL, FRONT DOOR, OUTER LH

main67112-32010iSV11..ARL198303-198610

main67112-32020iCV1#,SV1#..EUR198210-198610

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-32020iSV1#..4D198210-198308

main67401-32021iCV1#,SV1#..4D198406-198610

W/MANUAL REMOTE MIRROR

main67401-32030iSV1#..5D198210-198308

main67401-32031iSV1#..5D198308-198406

main67401-32060iCV1#,SV1#..GL,GLI198406-198610

W/ELECTRIC REMOTE MIRROR

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-32020iSV1#..4D198210-198308

main67402-32021iCV1#,SV1#..4D198406-198610

W/MANUAL REMOTE MIRROR

main67402-32030iSV1#..5D198210-198308

main67402-32031iSV1#..5D198308-198406

main67402-32060iCV1#,SV1#..GL,GLI198406-198610

W/ELECTRIC REMOTE MIRROR

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67433-32010iCV1#,SV1#198210-198610

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67434-32010iCV1#,SV1#198210-198610

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-32020iCV1#,SV1#..LHD..4D198210-198610

W/O MIRROR

main67491-32030iCV1#,SV1#..4D198210-198610

W/MANUAL REMOTE MIRROR

main67491-32040iCV1#,SV1#..LHD..5D..(EUG,FRG)198210-198610

W/O MIRROR

main67491-32050iCV1#,SV1#..5D198210-198610

W/MANUAL REMOTE MIRROR

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-32020iCV1#,SV1#..LHD..4D198210-198610

W/O MIRROR

main67492-32030iCV1#,SV1#..4D198210-198610

W/MANUAL REMOTE MIRROR

main67492-32040iSV11..ARL198303-198406

W/ELECTRIC REMOTE MIRROR

main67492-32050iCV1#,SV1#..5D198210-198610

W/MANUAL REMOTE MIRROR

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-32010iSV1#..LHD..4D198210-198308

RH

main67495-32011iCV1#,SV1#..LHD..4D198308-198610

RH

main67495-32020iSV1#..LHD..5D198210-198308

RH

main67495-32021iCV1#,SV1#..LHD..5D198308-198610

RH

main67496-32010iSV10..RHD..4D198210-198308

LH

main67496-32011iCV1#,SV1#..RHD..4D198308-198610

LH

main67496-32020iSV10..RHD..5D198210-198308

LH

main67496-32021iSV10..RHD..5D198308-198310

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iCV10,SV1#198210-198610

67811PAD, FRONT DOOR SILENCER

main67811-32010×2iCV1#,SV1#..EUR198210-198610

sub67812-12010

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-32010iSV1#..EUR198305-198306

main67831-32020iCV1#,SV1#..EUR198306-198610

main67831-32030iSV11..ARL198305-198610

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-32030iSV11..ARL198401-198610

main67832-32010iSV1#198210-198305

main67832-32020iCV1#,SV1#..EUR198306-198610

main67832-32030iSV11..ARL198305-198401

67837ASEAL, FRONT DOOR VENT, RH

main67837-32010iSV11..ARL198305-198610

67838ASEAL, FRONT DOOR VENT, LH

main67838-32010iSV11..ARL198305-198610

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-32010iCV10,SV1#..4D198210-198406

main67861-32030iSV1#..5D198210-198406

main67861-32050iCV1#,SV1#..4D198406-198610

main67861-32070iCV1#,SV1#..5D198406-198610

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×40iCV10,SV1#198210-198610

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-32010iCV10,SV1#..4D198210-198406

main67862-32030iSV1#..5D198210-198406

main67862-32050iCV1#,SV1#..4D198406-198610

main67862-32070iCV1#,SV1#..5D198406-198610

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-32030iCV1#,SV1#..4D198210-198610

*TT,T=4.0

main68111-32040iCV1#,SV1#..(GL,GLI)..4D198210-198610

BRONZE,*TT,T=4.0

main68111-32070iCV1#,SV1#..5D198210-198610

*TT,T=4.0

main68111-32080iCV1#,SV1#..(GL,GLI)..5D..EUR198210-198610

BRONZE,*TT,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-32030iCV1#,SV1#..4D198210-198610

*TT,T=4.0

main68112-32040iCV1#,SV1#..(GL,GLI)..4D198210-198610

BRONZE,*TT,T=4.0

main68112-32070iCV1#,SV1#..5D198210-198610

*TT,T=4.0

main68112-32080iCV10,SV1#..(GL,GLI)..5D..EUR198210-198610

BRONZE,*TT,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-32020×2iCV10,SV1#..4D198210-198406

LONG

main68141-32040×2iSV1#..5D198210-198406

LONG

main68141-32050×2iCV1#,SV1#..4D198406-198610

LONG

main68141-32060×2iCV1#,SV1#..5D198406-198610

LONG

main68143-14020×2iCV10,SV1#198210-198309

SHORT

main68143-32020×2iCV10,SV1#198309-198406

SHORT

main68143-32030×2iCV1#,SV1#198406-198610

SHORT

68610CHECK ASSY, FRONT DOOR

main68610-32010×2iCV10,SV1#198210-198406

sub68610-12030

main68610-32030×2iCV1#,SV1#198406-198610

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iCV10,SV1#198406-198507

main68617-22010×2iCV10,SV1#198210-198406

main68617-90A00×2iCV1#,SV1#198507-198610

sub68617-90A01

9017906070

main90179-06070

9033330002

main90333-30002

9165140612

main91651-40612

9351015014

main93510-15014

9352014010

main93520-14010

31 parts on this diagram · 4 diagrams in section
