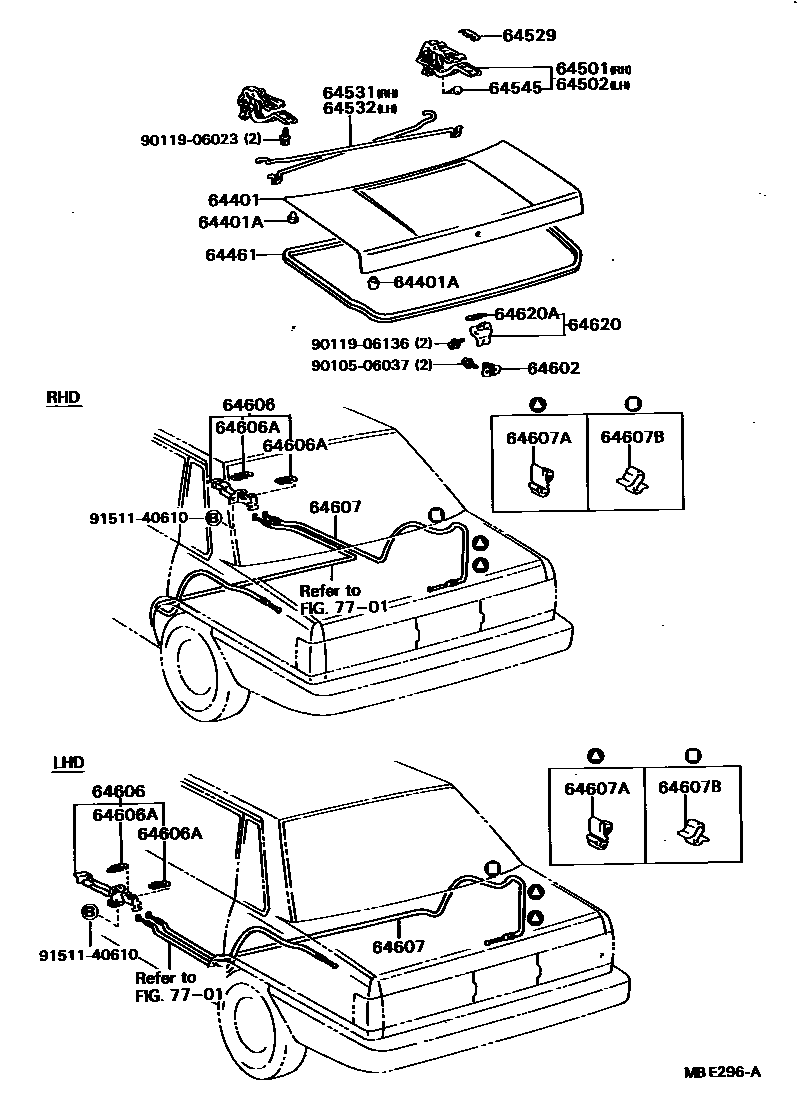

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
sub64461-32011
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64545CUSHION, LUGGAGE DOOR HINGE
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
7701
9010506037
main90105-06037
9011906023
main90119-06023
9011906136
main90119-06136
9151140610
main91511-40610
22 parts on this diagram · 1 diagram in section
