ROOF PANEL & BACK WINDOW GLASS

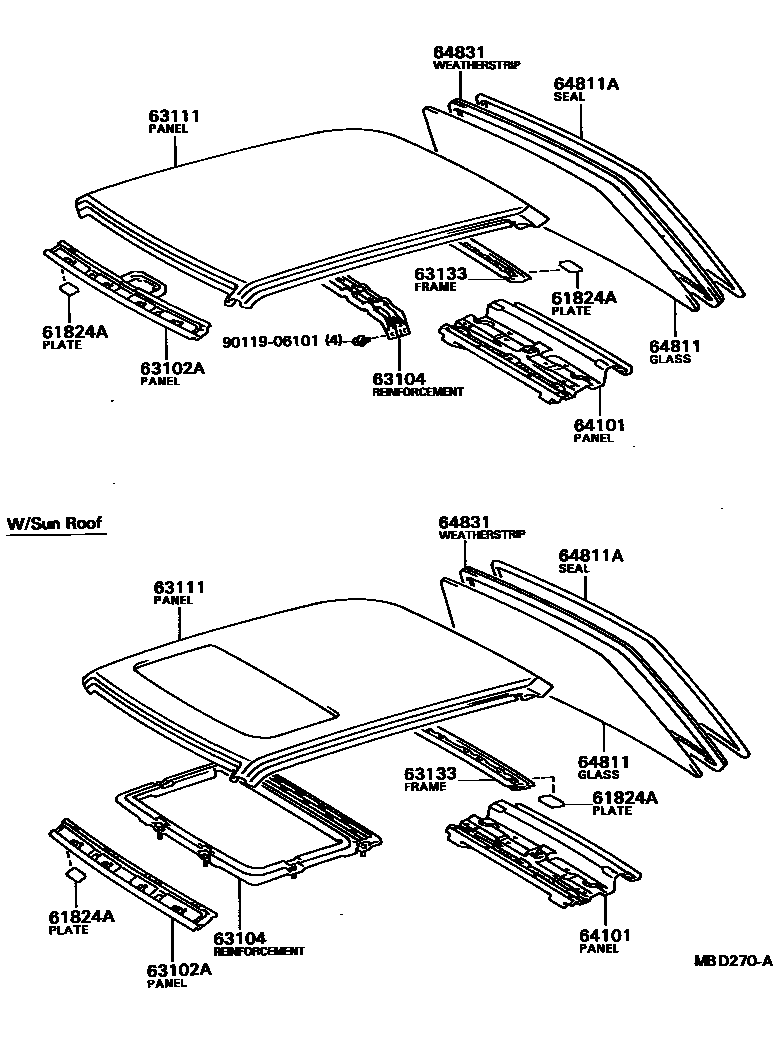

Parts diagram
61824APLATE, NOISE CONTROL, NO.1
main61824-32010i198406-198610
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63102-32010i198210-198508
main63102-32010i198508-198610
W/O MAP LAMP
main63102-32020i198508-198610
W/MAP LAMP
main63102-32030i198303-198610
W/O MAP LAMP
main63102-32030i198210-198508
main63102-32040i198303-198610
W/MAP LAMP
63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
main63141-32010i198210-198610
W/O SUN ROOF
main63141-32020i198210-198610
W/O SUN ROOF
main63142-32010i198210-198610
W/SUN ROOF
63111PANEL, ROOF
main63111-32010i198210-198610
W/O SUN ROOF
main63111-32020i198210-198610
W/SUN ROOF
main63111-32030i198210-198610
W/O SUN ROOF
main63111-32040i198210-198610
W/SUN ROOF
63133FRAME, BACK WINDOW OPENING, UPPER
main63133-32010i198210-198610
64101PANEL SUB-ASSY, UPPER BACK
main64101-32010i198210-198610
64811GLASS, BACK WINDOW
main64811-32010i198210-198508
*EHTT,T=4.0
sub64811-32011
main64811-32011i198508-198610
*EHTT,T=4.0
main64811-32040i198210-198508
*EHTT,HEAVY,T=4.0
sub64811-32041
main64811-32041i198508-198610
*EHTT,HEAVY,T=4.0
main64811-32050i198210-198508
BRONZE,*EHTT,T=4.0
sub64811-32051
main64811-32051i198508-198610
BRONZE,*EHTT,T=4.0
main64811-32060i198210-198508
BRONZE,*EHTT,HEAVY,T=4.0
sub64811-32061
main64811-32061i198508-198610
BRONZE,*EHTT,HEAVY,T=4.0
64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP
main64814-14030i198210-198311
sub64814-20020
main64814-32030i198311-198610
sub64814-32020
64831WEATHERSTRIP, BACK WINDOW GLASS
main64812-32010i198210-198406
sub64812-32020
main64812-32020i198406-198501
sub64812-32021
main64812-32021i198501-198610
9011906101
main90119-06101

10 parts on this diagram · 3 diagrams in section
