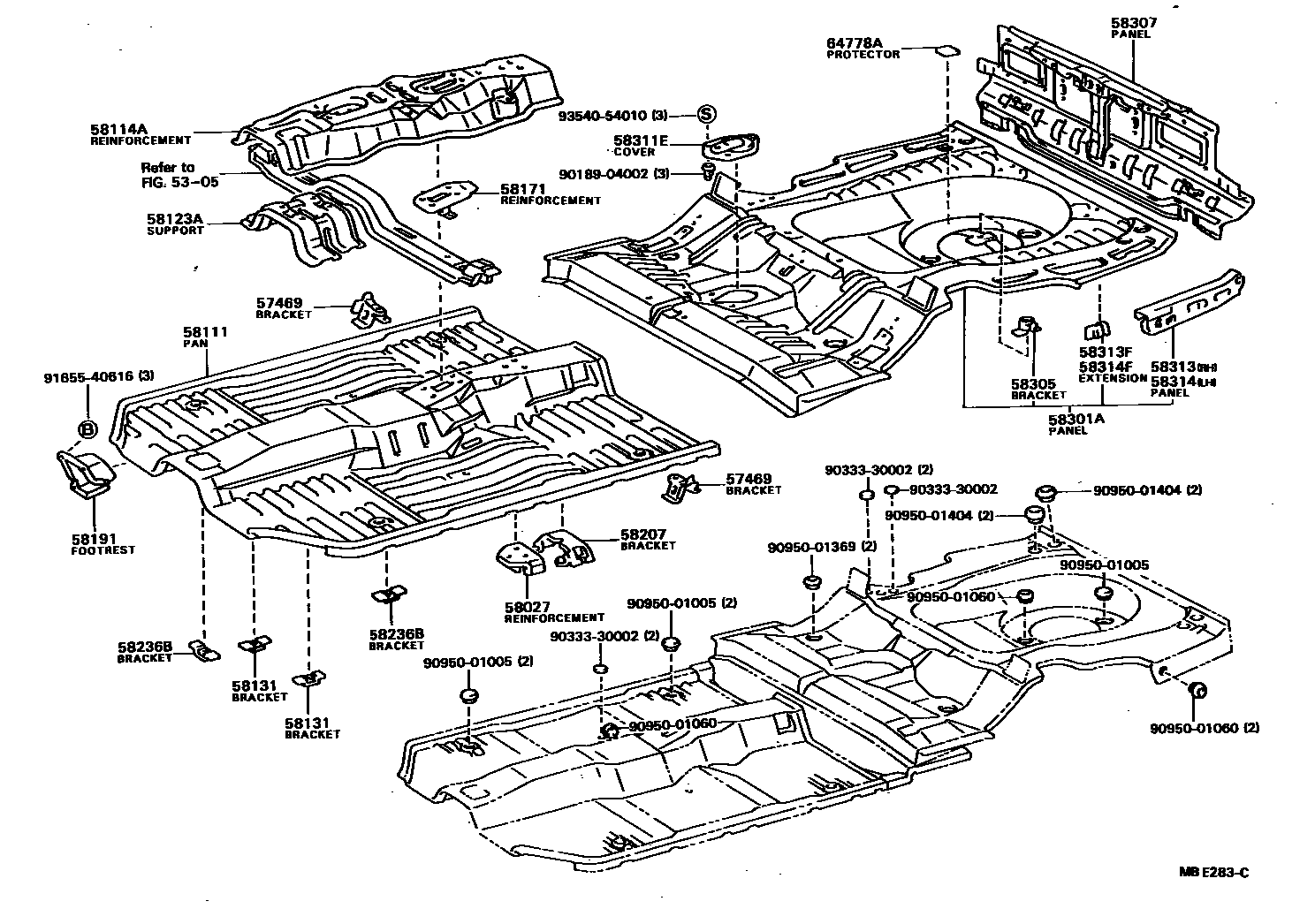

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57469BRACKET, FRONT SEAT, OUTSIDE

main57468-32010iCV1#,SV1#198210-198610

RH

main57469-32010iCV1#,SV1#198210-198610

LH

58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1

main58027-32010iCV1#,SV1#198210-198610

58111PAN, FRONT FLOOR

main58111-32010iCV1#,SV1#198210-198610

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-32900iCV1#,SV1#198210-198610

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-32010iCV1#,SV1#198210-198610

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-32010iCV1#,SV1#198210-198610

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-32010iCV1#,SV1#198210-198610

58191FOOTREST, FRONT FLOOR

main58191-32010iCV10,SV1#..RHD198210-198406

main58191-32020iCV1#,SV1#..RHD198406-198610

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-32010iCV1#,SV1#198210-198610

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iCV1#,SV1#198210-198610

58301APANEL SUB-ASSY, REAR FLOOR

main58301-32050iCV1#,SV10..4D198301-198610

sub58301-32120

main58301-32060iCV1#,SV10..5D198301-198610

main58301-32070iSV10..4D198210-198301

sub58301-32050

sub90950-01060

main58301-32080iSV11..4D198303-198608

sub58301-32902

main58301-32090iSV10..5D198210-198301

sub58301-32060

sub90950-01060

main58301-32100iSV11..5D..EUR198303-198610

main58301-32110iSV11..ARL198303-198610

main58301-32902iSV11..4D198608

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iCV1#,SV1#198210-198610

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-32040iCV1#,SV1#..4D198210-198610

main58307-32070iCV1#,SV1#..5D198210-198610

sub58307-32090

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-32010iCV1#,SV1#198210-198610

58313PANEL, REAR FLOOR SIDE, RH

main58313-32010iCV10,SV1#..4D198210-198408

sub58313-32020

main58313-32020iCV1#,SV1#..4D198408-198610

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-32030iCV1#,SV1#..5D198210-198610

main58315-32010iCV1#,SV1#..4D198210-198610

58314PANEL, REAR FLOOR SIDE, LH

main58314-32010iCV10,SV1#..4D198210-198408

sub58314-32020

main58314-32020iCV1#,SV1#..4D198408-198610

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-32030iCV1#,SV1#..5D198210-198610

main58317-32010iCV1#,SV1#..4D198210-198610

64778APROTECTOR, SPARE WHEEL

main64778-14020iSV1#198210-198406

9018904002

main90189-04002

9033330002

main90333-30002

9095001005

main90950-01005

9095001060

main90950-01060

9095001369

main90950-01369

9095001404

main90950-01404

9165540616

main91655-40616

9354054010

main93540-54010

28 parts on this diagram · 2 diagrams in section
