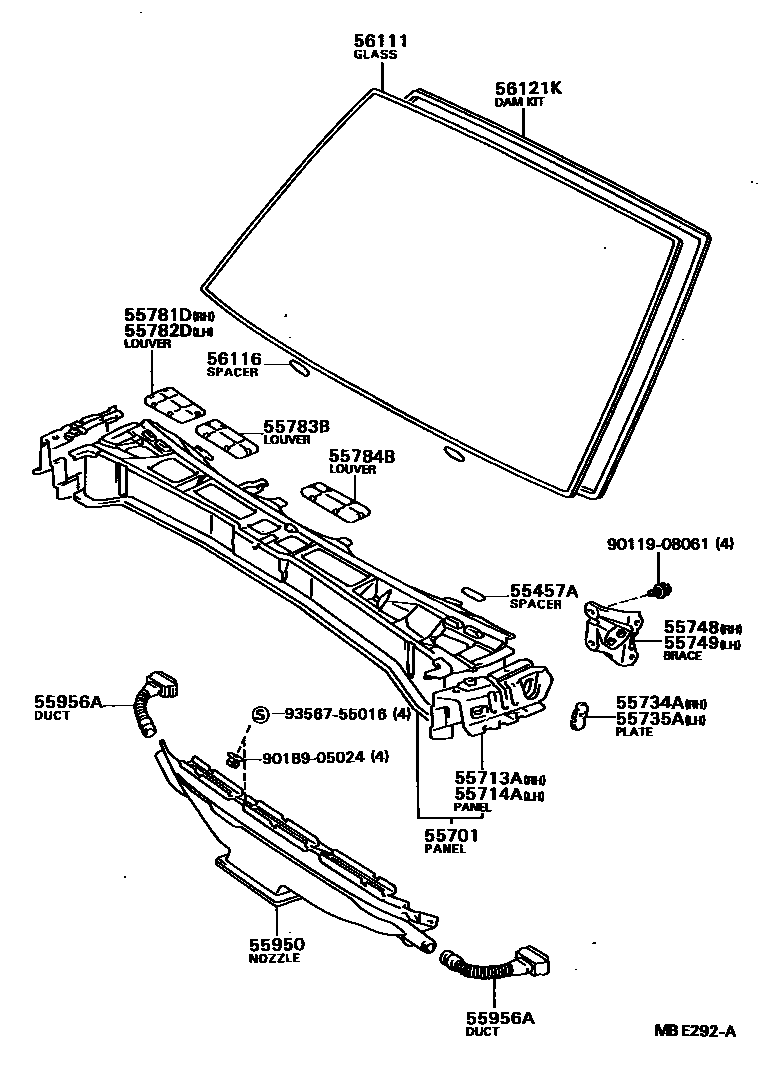

COWL PANEL & WINDSHIELD GLASS

55457ASPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iCV1#,SV1#¥190198210-198610

55701PANEL SUB-ASSY, COWL

main55700-32010iSV10..RHD¥42,900198210-198406

sub55700-32011¥42,500

main55700-32011iSV10..RHD¥42,500198406-198504

sub55700-32021

main55700-32020iSV11..RHD¥42,900198303-198406

sub55700-32021

main55700-32021iSV11..RHD198406-198509

main55700-32040iCV1#,SV1#..LHD198210-198610

main55700-32090iCV10..RHD198312-198406

sub55700-32091

main55700-32091iCV1#..RHD198406-198509

main55700-32110iSV1#..RHD198511-198610

main55700-32120iCV11..RHD198511-198610

55713APANEL, COWL TOP SIDE, RH

main55713-32010iCV1#,SV1#198210-198610

55714APANEL, COWL TOP SIDE, LH

main55714-32010iCV1#,SV1#198210-198610

55734APLATE, WATER GUARD, RH

main55734-32010iCV1#,SV1#198210-198610

55735APLATE, WATER GUARD, LH

main55734-32010iCV1#,SV1#198210-198610

55748BRACE, COWL TOP TO PILLAR, RH

main55748-32010iCV1#,SV1#..LHD198210-198610

55749BRACE, COWL TOP TO PILLAR, LH

main55749-32010iCV1#,SV1#..RHD198210-198610

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-32010iCV1#,SV1#..RHD¥680198210-198609

sub55781-32020

main55781-32020iCV11,SV1#..RHD198601-198609

COLD SPEC

main55781-32020iCV11,SV1#..RHD198609-198610

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-32010iCV1#,SV1#..LHD¥680198210-198609

sub55782-32020¥1,110

main55782-32020iCV11,SV1#..LHD¥1,110198601-198609

COLD SPEC

main55782-32020iCV11,SV1#..LHD¥1,110198609-198610

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32010iCV1#,SV1#¥1,610198210-198609

sub55783-32020¥1,650

main55783-32020iCV11,SV1#¥1,650198601-198609

COLD SPEC

main55783-32020iCV11,SV1#¥1,650198609-198610

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32010iCV1#,SV1#¥1,610198210-198609

sub55784-32020¥1,650

main55784-32020iCV11,SV1#¥1,650198609-198610

main55784-32020iCV11,SV1#¥1,650198601-198609

COLD SPEC

55950NOZZLE ASSY, DEFROSTER

main55950-32011iCV1#,SV1#..RHD198210-198610

main55950-32020iCV1#,SV1#..LHD¥7,100198210-198606

sub55950-32021

main55950-32021iCV11,SV1#..LHD198606-198610

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-32010iCV1#,SV1#198210-198610

56111GLASS, WINDSHIELD

main56111-32010iCV1#,SV1#..4D..EUG¥60,600198210-198610

*TZT,T=5.0

sub56111-32040¥114,000

main56111-32020iSV11..RHD..EUG¥122,000198508-198610

TOP SHADE,*TL,T=5.3

main56111-32030iCV1#,SV1#..(GL,GLI)..4D¥132,000198210-198610

BRONZE,*TL,T=5.3

main56111-32040iCV1#,SV1#..4D¥114,000198210-198610

*TL,T=5.3

sub56111-32020¥122,000

main56111-32050iCV1#,SV1#..5D..EUR¥57,800198210-198610

*TZT,T=5.0

sub56111-32080¥118,000

main56111-32060iCV1#,SV1#..5D..EUR¥104,000198210-198610

*TL,T=5.3

sub56111-32080¥118,000

main56111-32080iCV1#,SV1#..(GL,GLI)..5D..EUR¥118,000198210-198610

BRONZE,*TL,T=5.3

main56111-32090iSV11..ARL¥99,200198303-198610

*LAM,T=5.3

main56111-32100iSV11..RHD..EUG198508-198610

BRONZE,TOP SHADE,*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-14070iCV1#,SV1#¥250198210-198610

sub56116-32030¥250

56121KDAM KIT, WINDSHIELD GLASS

main04562-14010iCV1#,SV1#¥2,220198210-198610

sub04562-30040¥2,390

9011908061

main90119-08061¥70

9018905024

main90189-05024¥130

9356755016

main93567-55016¥110

20 parts on this diagram · 1 diagram in section
