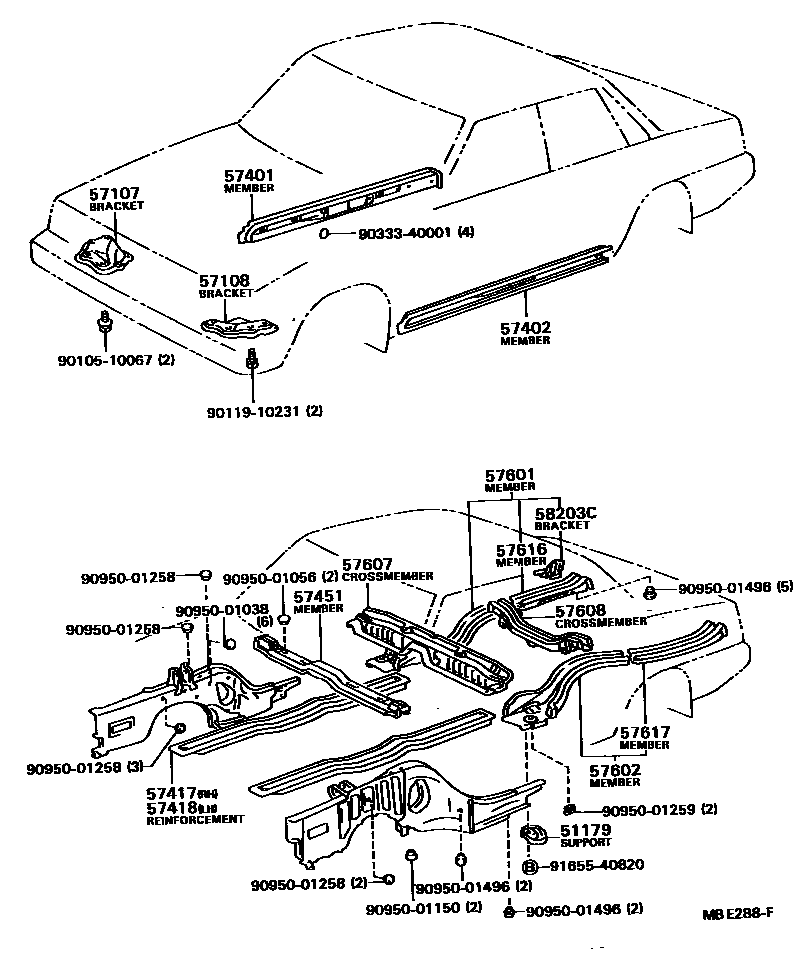

FLOOR SIDE MEMBER
51179SUPPORT, JACK UP
57107BRACKET SUB-ASSY, STRUT BAR, RH
57108BRACKET SUB-ASSY, STRUT BAR, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
sub57401-32020
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451MEMBER, FRONT FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
W/P.P. BUMPER
57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57616MEMBER, REAR FLOOR SIDE, REAR RH
57617MEMBER, REAR FLOOR SIDE, REAR LH
58203CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING
9010510067
9011910231
9033340001
9095001038
9095001056
9095001150
9095001258
9095001259
9095001496
9165540820
25 parts on this diagram · 1 diagram in section
