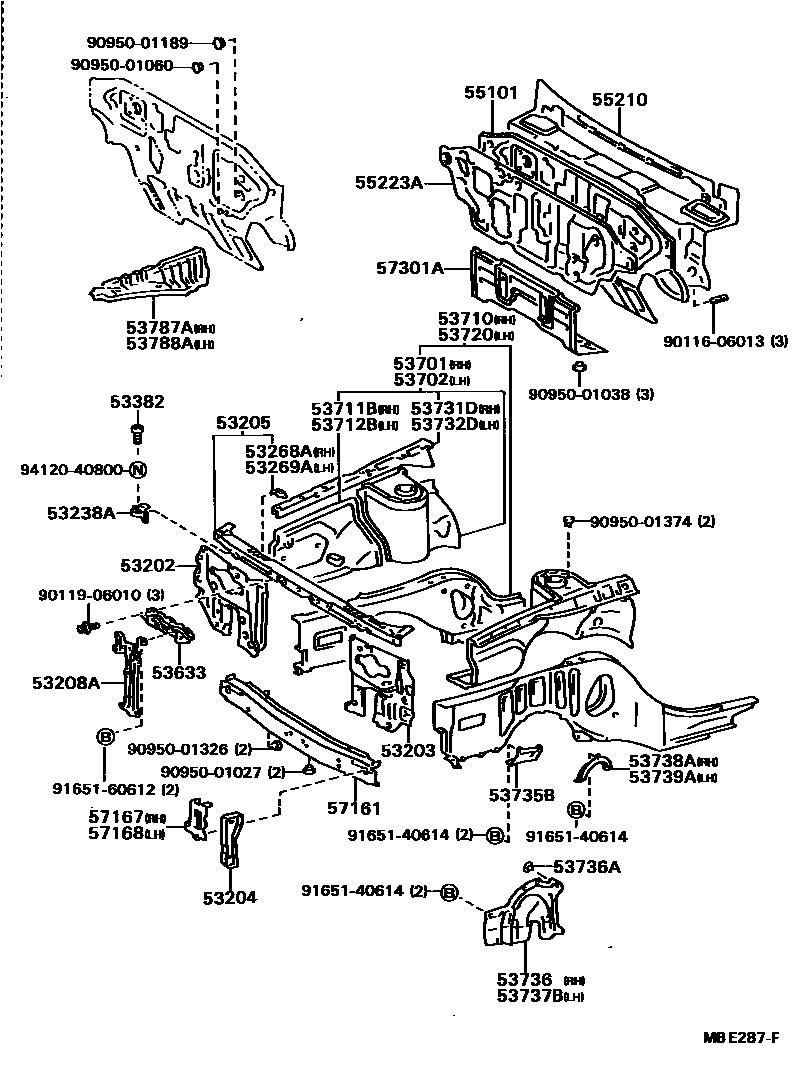

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-32010iCV10,SV1#198210-198406

sub53202-32010

main53211-32011iCV1#,SV1#198406-198610

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-32010iCV10,SV10198210-198406

sub53203-32020

main53212-32011iCV1#,SV10198406-198610

main53212-32020iCV10198308-198406

COLD SPEC

sub53203-32010

main53212-32020iSV11198303-198406

sub53203-32010

main53212-32021iSV11198406-198610

53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER

main53217-32010iCV10,SV1#198210-198408

RH

sub53217-32020

main53217-32020iCV1#,SV1#198408-198610

RH

main53218-32010iCV10,SV1#198210-198408

LH

sub53218-32020

main53218-32020iCV1#,SV1#198408-198610

LH

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-32010iCV10,SV1#198210-198408

sub53216-32020

main53216-32020iCV1#,SV1#198408-198610

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-32010iCV10,SV1#198210-198406

main53208-32011iCV10,SV1#198406-198408

sub53208-32030

main53208-32030iCV1#,SV1#198408-198610

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-32010iCV1#,SV1#198210-198610

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-32010iCV10,SV1#198210-198409

sub53268-32011

main53268-32011iCV1#,SV1#198409-198610

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53268-32010iCV10,SV1#198210-198409

sub53268-32011

main53269-32010iCV1#,SV1#198409-198610

53382BUMPER, HOOD, FRONT

main53382-20011iCV1#,SV1#198210-198610

sub53382-90A00

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-32010iCV10,SV1#198210-198408

sub53633-32020

main53633-32020iCV1#,SV1#198408-198610

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-32902iCV10,SV1#198210-198508

sub53701-32905

main53701-32905iCV11,SV1#198508-198610

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-32901iCV10,SV1#198210-198508

sub53702-32904

main53702-32904iCV11,SV1#198508-198610

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-32030iCV10,SV1#198210-198508

sub53701-32031

main53701-32031iCV11,SV1#198508-198610

53711BAPRON, FRONT FENDER, FRONT RH

main53711-32020iCV1#,SV1#198210-198610

53712BAPRON, FRONT FENDER, FRONT LH

main53712-32020iCV1#,SV1#198210-198610

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-32030iCV10,SV1#198210-198508

sub53702-32031

main53702-32031iCV11,SV1#198508-198610

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-32010iCV1#,SV1#198210-198610

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-32010iCV1#,SV1#198210-198610

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-32010iCV1#,SV1#198210-198610

53736SEAL, FRONT FENDER APRON, RH

main53736-32010iCV1#,SV1#198210-198610

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-09030iCV1#,SV1#198210-198610

53737BSEAL, FRONT FENDER APRON, LH

main53737-32010iCV1#,SV1#198210-198610

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-32010iSV1#198210-198610

53739ASEAL, FRONT FENDER APRON, REAR LH

main53739-32010iCV1#,SV1#198210-198610

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53787-32010iCV1#,SV1#198210-198610

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53788-32010iCV1#,SV1#198210-198610

55101PANEL SUB-ASSY, DASH

main55101-32900iSV1#..RHD..5F198210-198610

main55101-32901iSV1#..RHD..4FC198210-198610

main55101-32902iSV1#..LHD198210-198610

main55101-32903iCV1#..RHD198308-198610

main55101-32904iCV1#..LHD198308-198610

55210INSULATOR ASSY, DASH PANEL

main55210-32010iCV10,SV1#..RHD198210-198404

sub55210-32011

main55210-32011iCV1#,SV1#..RHD198404-198610

main55210-32020iCV10,SV1#..LHD198210-198404

sub55210-32021

main55210-32021iCV1#,SV1#..LHD198404-198610

55223AINSULATOR, DASH PANEL, OUTER

main55223-32010iCV10..RHD198308-198404

sub55223-32011

main55223-32011iCV10..RHD198404-198610

main55223-32020iCV10..LHD198308-198404

sub55223-32021

main55223-32021iCV10..LHD198404-198610

57161CROSSMEMBER, FRONT

main57104-32020iCV10,SV1#198210-198406

main57104-32050iCV1#,SV1#198406-198610

W/*UB

main57104-32060iCV10,SV1#..EUR198406-198610

W/P.P. BUMPER

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-32020iCV1#,SV1#198210-198610

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-32020iCV1#,SV1#198210-198610

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-32010iCV1#,SV1#..RHD198210-198610

main57301-32020iCV1#,SV1#..LHD198210-198610

9011606013

main90116-06013

9011906010

main90119-06010

9095001027

main90950-01027

9095001038

main90950-01038

9095001060

main90950-01060

9095001189

main90950-01189

9095001326

main90950-01326

9095001374

main90950-01374

9165140614

main91651-40614

9165160612

main91651-60612

9412040800

main94120-40800

44 parts on this diagram · 2 diagrams in section
