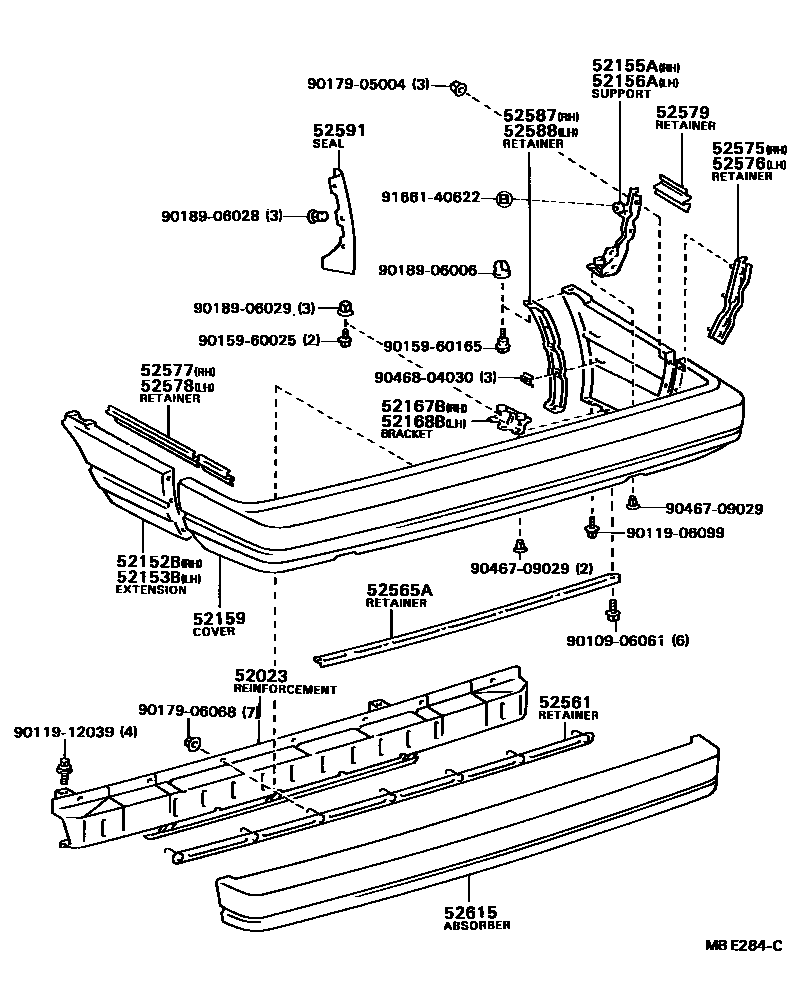

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-32020iCV10,SV1#198210-198406

sub52023-32050

sub90189-04050

main52023-32050iCV1#,SV1#198406-198610

W/*UB

52152BEXTENSION, REAR BUMPER, RH

main52152-32020iCV10,SV1#198210-198406

BLACK

main52152-32901iCV10,SV1#..GL,GLI198210-198406

TREATED FOR PAINTIN

52153BEXTENSION, REAR BUMPER, LH

main52153-32020iCV10,SV1#198210-198406

BLACK

main52153-32901iCV10,SV1#..GL,GLI198210-198406

TREATED FOR PAINTIN

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-32010iCV10,SV1#198210-198406

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-32010iCV10,SV1#198210-198406

52159COVER, REAR BUMPER

main52159-32110iCV1#,SV1#..EUR198406-198610

W/P.P. BUMPER

main52159-32120iCV1#,SV1#198406-198610

W/*UB,BLACK

main52159-32903iCV10,SV1#198210-198406

BLACK

sub52159-32040

main52159-32906iCV10,SV1#..GL,GLI198210-198406

TREATED FOR PAINTIN

main52159-32908iCV1#,SV1#..GL,GLI198406-198610

W/*UB,PAINTING

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-32010iCV1#,SV1#198210-198610

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-32010iCV1#,SV1#198210-198610

52561RETAINER, REAR BUMPER, UPPER CENTER

main52521-32010iCV10,SV1#198210-198406

sub52521-32020

main52521-32040iCV1#,SV1#198406-198610

W/*UB

sub52521-32050

52565ARETAINER, REAR BUMPER, LOWER

main52565-16020iCV1#,SV1#..EUR198406-198610

W/P.P. BUMPER

main52565-32010iCV10,SV1#198210-198406

main52565-32010iCV1#,SV1#198406-198610

W/*UB

52575RETAINER, REAR BUMPER SIDE, RH

main52575-32010iCV10,SV1#198210-198406

52576RETAINER, REAR BUMPER SIDE, LH

main52576-32010iCV10,SV1#198210-198406

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-32010iCV10,SV1#198210-198406

main52577-32020iCV1#,SV1#198406-198610

W/*UB

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-32010iCV10,SV1#198210-198406

main52578-32020iCV1#,SV1#198406-198610

W/*UB

52579RETAINER, REAR BUMPER SIDE, NO.3

main52579-32010iCV10,SV1#198210-198406

main52579-32020iCV1#,SV1#198406-198610

W/*UB

52587RETAINER, REAR BUMPER END, RH

main52587-32010iCV10,SV1#198210-198406

52588RETAINER, REAR BUMPER END, LH

main52588-32010iCV10,SV1#198210-198406

52591SEAL, REAR BUMPER SIDE, RH

main52591-32010iCV1#,SV1#198210-198610

52615ABSORBER, REAR BUMPER ENERGY

main52615-32020iCV10,SV1#198210-198406

main52615-32040iCV1#,SV1#198406-198610

W/*UB

9010906061

main90109-06061

9011906099

main90119-06099

9011912039

main90119-12039

9015960025

main90159-60025

9015960165

main90159-60165

9017905004

main90179-05004

9017906068

main90179-06068

9018906006

main90189-06006

9018906028

main90189-06028

9018906029

main90189-06029

9046709029

main90467-09029

9046804030

main90468-04030

9166140622

main91661-40622

32 parts on this diagram · 3 diagrams in section
