47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040i198210-198610

*12-1.25PX25.8-19.5

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-32010i198210-198501

sub04479-32011

main04479-32011i198501-198508

main04479-32020i198508-198610

sub04479-32021

47710LPAD KIT, DISC BRAKE, FRONT

main04491-32030i198210-198508

sub04491-32031

main04491-32080i198508-198610

sub04491-32081

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i198210-198610

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i198210-198610

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010i198210-198610

sub47716-32031

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010i198210-198610

sub47717-32031

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-32020i198210-198508

sub47721-32030

main47721-32030i198508-198610

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003i198210-198610

*9-1.25PX71-25,*9-1.25PX73-25

main90119-09004i198210-198610

*9-1.25PX91-25,*9-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004i198210-198610

L=12

main90387-15005i198210-198610

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-32020i198210-198508

sub47721-32030

main47721-32030i198508-198610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-32020i198210-198310

sub47730-32021

main47730-32021i198310-198401

sub47730-32022

main47730-32022i198401-198508

main47730-32040i198508-198510

sub47730-32041

main47730-32041i198510-198610

47731PISTON, FRONT DISC BRAKE

main47731-20070i198305-198508

main47731-32010i198210-198305

sub47731-20070

main47731-32020i198508-198610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001i198210-198508

main90522-64003i198508-198610

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-32010i198210-198610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-32020i198210-198310

sub47750-32021

main47750-32021i198310-198401

sub47750-32022

main47750-32022i198401-198508

main47750-32040i198508-198510

sub47750-32041

main47750-32041i198510-198610

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-32010i198210-198610

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010i198210-198610

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-32010i198210-198610

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-32010i198210-198610

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06196i198210-198305

sub91611-G0612

main90119-06227i198305-198610

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-32010i198210-198610

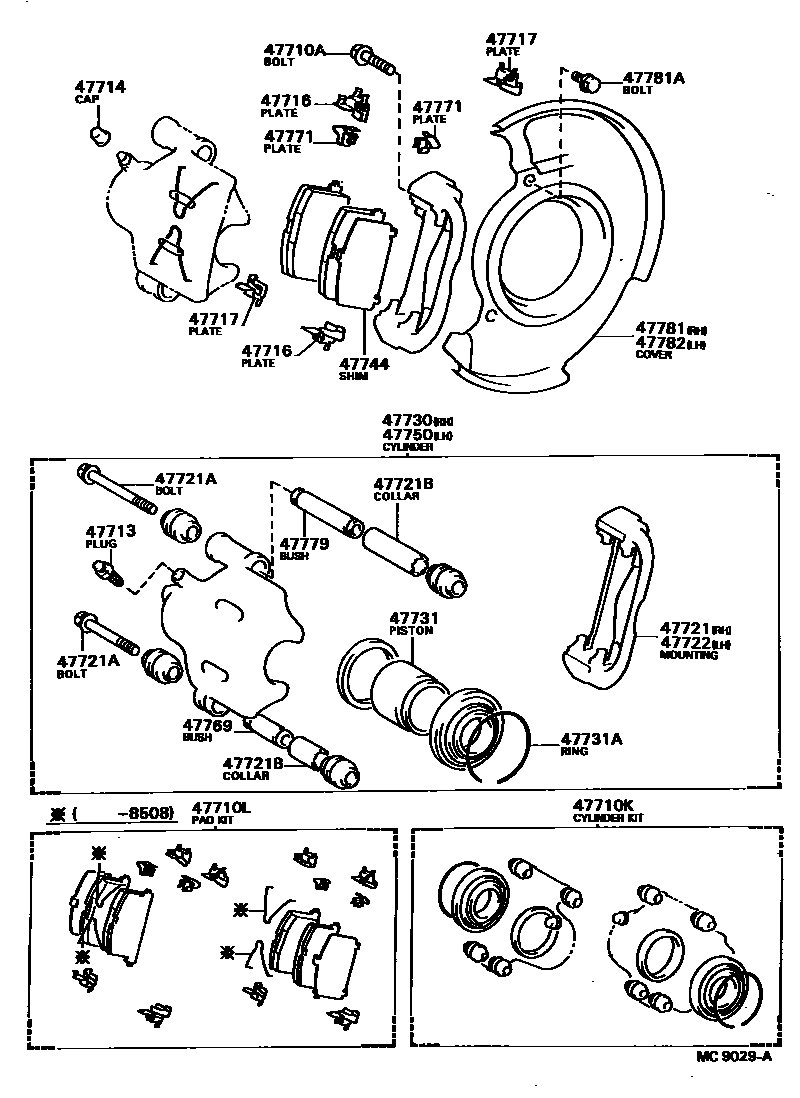

FRONT DISC BRAKE CALIPER & DUST COVER
