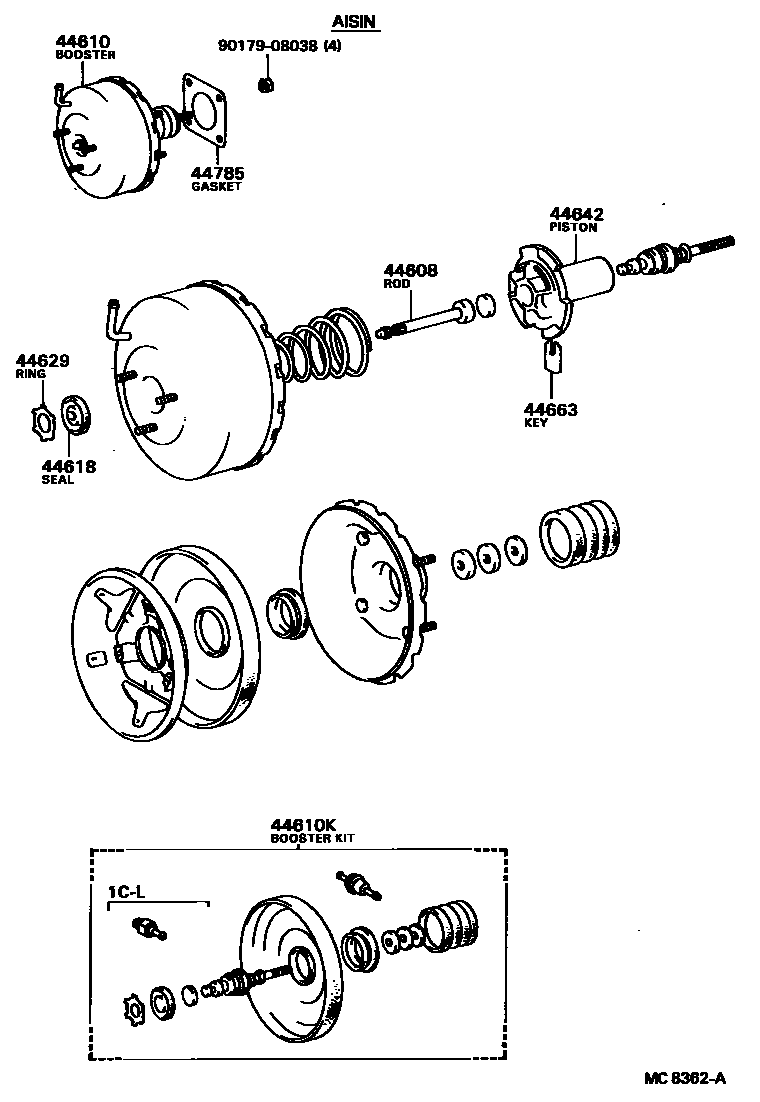

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCV1#,SV1#198406-198610

main44606-32010iCV10,SV1#198210-198406

44610BOOSTER ASSY, BRAKE

main44610-32050iSV10..RHD198210-198301

sub44610-32051

main44610-32051iCV10,SV1#..RHD198301-198406

sub44610-32110

main44610-32070iSV10..LHD198210-198301

sub44610-32071

main44610-32071iCV10,SV1#..LHD198301-198406

sub44610-32130

main44610-32110iCV1#,SV1#..RHD198406-198610

main44610-32130iCV1#,SV1#..LHD198406-198610

44610KBOOSTER KIT, BRAKE

main04443-32030iSV1#198210-198406

sub04443-32031

main04443-32031iSV1#198406-198610

main04443-32120iCV10198308-198406

sub04443-32121

main04443-32121iCV1#198406-198610

44618SEAL, BOOSTER BODY

main44621-28120iCV1#,SV1#198210-198610

44629RING, CIRCULAR INTERNAL

main44628-28120iCV1#,SV1#198210-198610

44642PISTON, BRAKE BOOSTER

main44642-32010iCV1#,SV1#198210-198610

44663KEY, VALVE STOPPER

main44635-28120iCV1#,SV1#198210-198610

44785GASKET, BRAKE BOOSTER

main44785-32010iCV1#,SV1#198210-198610

9017908038

main90179-08038

9 parts on this diagram · 4 diagrams in section
