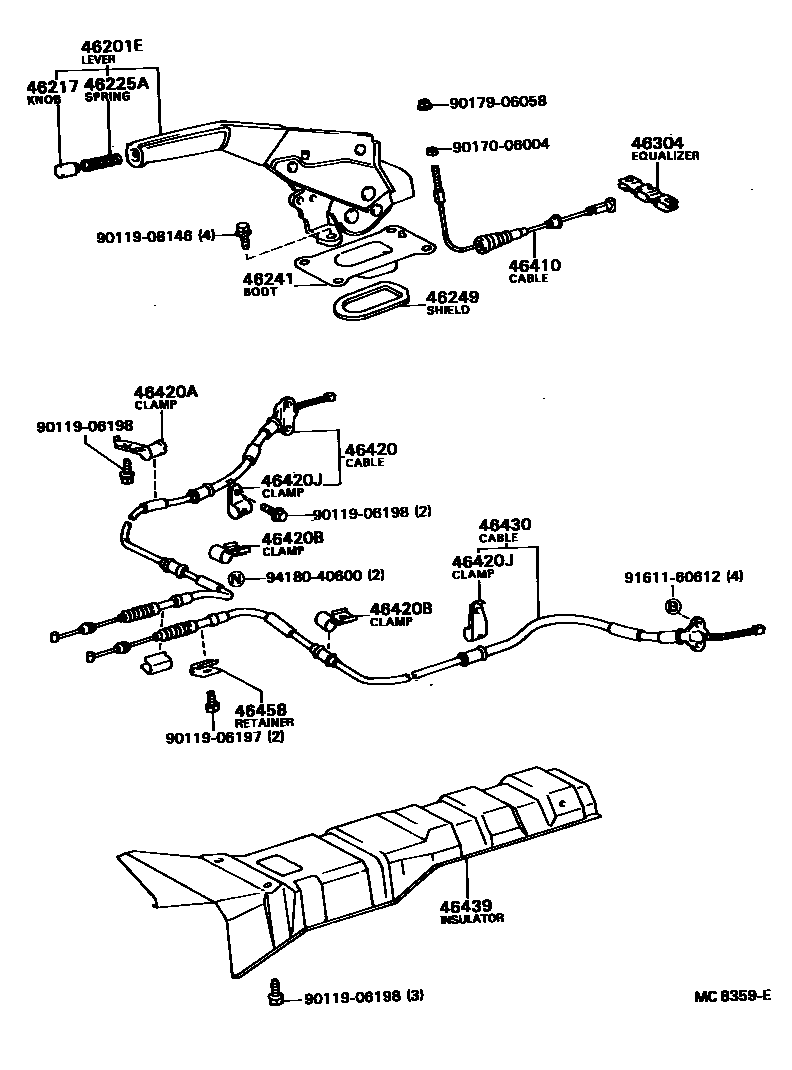

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-32012-01iSV10..DLX198210-198212

BLACK,BLACK,TRIM1#,8#

sub46201-32013

main46201-32012-06iSV10..DLX198210-198212

DEEP BROWN,BROWN,TRIM4#

sub46201-32013

main46201-32013-01iSV10..DLX198212-198305

BLACK,BLACK,TRIM1#,8#

sub46201-32014

sub46201-32013

main46201-32013-03iCV1#,SV10..DLX198406-198610

SHADOW GRAY,GRAY,TRIM1#

sub46201-32014

sub46201-32013

main46201-32013-04iCV1#,SV10..DLX198305-198603

BLUE,BLUE,TRIM8#

sub46201-32014

sub46201-32013

main46201-32013-05iCV1#,SV10..DLX198408-198610

BEIGE,BEIGE,TRIM4#

sub46201-32014

sub46201-32013

main46201-32013-06iSV10..DLX198212-198305

DEEP BROWN,BROWN,TRIM4#

sub46201-32014

sub46201-32013

main46201-32013-13iCV10,SV10..DLX198305-198406

DARK GRAY,GRAY,TRIM1#,8#

sub46201-32014

sub46201-32013

main46201-32013-14iCV11,SV10..DLX198603-198610

BLUE,BLUE,TRIM8#

sub46201-32014

sub46201-32013

main46201-32013-16iCV10,SV10..DLX198305-198406

DARK BROWN,BROWN,TRIM4#

sub46201-32014

sub46201-32013

main46201-32022-01iSV10..GL198210-198212

BLACK,BLACK,TRIM1#,8#

sub46201-32023

main46201-32022-06iSV10..GL198210-198212

DEEP BROWN,BROWN,TRIM4#

sub46201-32023

main46201-32023-01iSV1#..(GL,GLI)..EUR198212-198305

BLACK,BLACK,TRIM1#,8#

sub46201-32023

main46201-32023-03iCV10,SV1#..(GL,GLI)..EUR198305-198406

DARK GRAY,GRAY,TRIM1#

sub46201-32023

main46201-32023-04iCV10,SV1#..(GL,GLI)..EUR198305-198603

BLUE,BLUE,TRIM8#

sub46201-32023

main46201-32023-05iCV1#,SV1#..GL,GLI198408-198610

BEIGE,BEIGE,TRIM4#

sub46201-32023

main46201-32023-06iSV1#..(GL,GLI)..EUR198212-198305

DEEP BROWN,BROWN,TRIM4#

sub46201-32023

main46201-32023-13iCV1#,SV1#..GL,GLI198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub46201-32023

main46201-32023-16iCV10,SV1#..(GL,GLI)..EUR198305-198406

DARK BROWN,BROWN,TRIM4#

sub46201-32023

main46201-32023-24iCV11,SV1#..GL,GLI198603-198610

BLUE,BLUE,TRIM8#

sub46201-32023

main46201-32030-01iSV11..ARL198303-198305

BLACK,BLACK,TRIM1#,8#

sub46201-32030

sub46201-32050

main46201-32030-03iSV11..ARL198305-198406

DARK GRAY,GRAY,TRIM1#

sub46201-32030

sub46201-32050

main46201-32030-04iSV11..ARL198305-198406

BLUE,BLUE,TRIM8#

sub46201-32030

sub46201-32050

main46201-32030-06iSV11..ARL198303-198305

DEEP BROWN,BROWN,TRIM4#

sub46201-32030

sub46201-32050

main46201-32030-16iSV11..ARL198305-198406

DARK BROWN,BROWN,TRIM4#

sub46201-32030

sub46201-32050

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iSV1#198210-198305

BLACK,BLACK,TRIM1#,8#

sub46217-10020

sub46217-20020

main46217-10020-14iCV10,SV1#198305-198405

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-26iCV10,SV1#198305-198405

DARK BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-43iCV10,SV1#198305-198405

DARK GRAY,GRAY,TRIM1#

sub46217-10020

sub46217-20020

main46217-10020-46iSV1#198210-198305

DEEP BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

main46217-20020-03iCV1#,SV1#198406-198610

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub46217-20020

main46217-20020-04iCV1#,SV1#198405-198603

BLUE,BLUE,TRIM8#

sub46217-20020

main46217-20020-05iCV1#,SV1#198408-198610

BEIGE,BEIGE,TRIM4#

sub46217-20020

main46217-20020-13iCV10,SV1#198405-198406

DARK GRAY,DARK GRAY,TRIM1#

sub46217-20020

main46217-20020-16iCV10,SV1#198405-198406

DARK BROWN,DARK BROWN,TRIM4#

sub46217-20020

main46217-20020-44iCV11,SV1#198603-198610

BLUE,BLUE,TRIM8#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iCV1#,SV1#198210-198610

46241BOOT, PARKING BRAKE LEVER

main46241-32010iCV1#,SV1#198210-198610

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iCV1#,SV1#198210-198610

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iCV10,SV1#198210-198411

main46341-32010iCV1#,SV1#198411-198610

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-32010iCV10,SV1#..EUR198210-198610

main46410-32030iSV11..ARL198303-198406

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-39015iCV10,SV1#198210-198406

main46420-39025iCV10,SV1#198406-198411

main46420-39026iCV1#,SV1#198411-198610

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01017iCV1#,SV1#198210-198610

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01016iCV1#,SV1#198210-198610

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01015iCV1#,SV1#198210-198610

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-39015iCV10,SV1#198210-198406

sub46430-39025

main46430-39025iCV10,SV1#198406-198411

main46430-39026iCV1#,SV1#198411-198610

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-32010iSV1#198210-198610

46458RETAINER, CABLE

main46458-20020iCV1#,SV1#198210-198610

sub46458-50010

9011906197

main90119-06197

9011906198

main90119-06198

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9161160612

main91611-60612

9418040600

main94180-40600

21 parts on this diagram · 1 diagram in section
