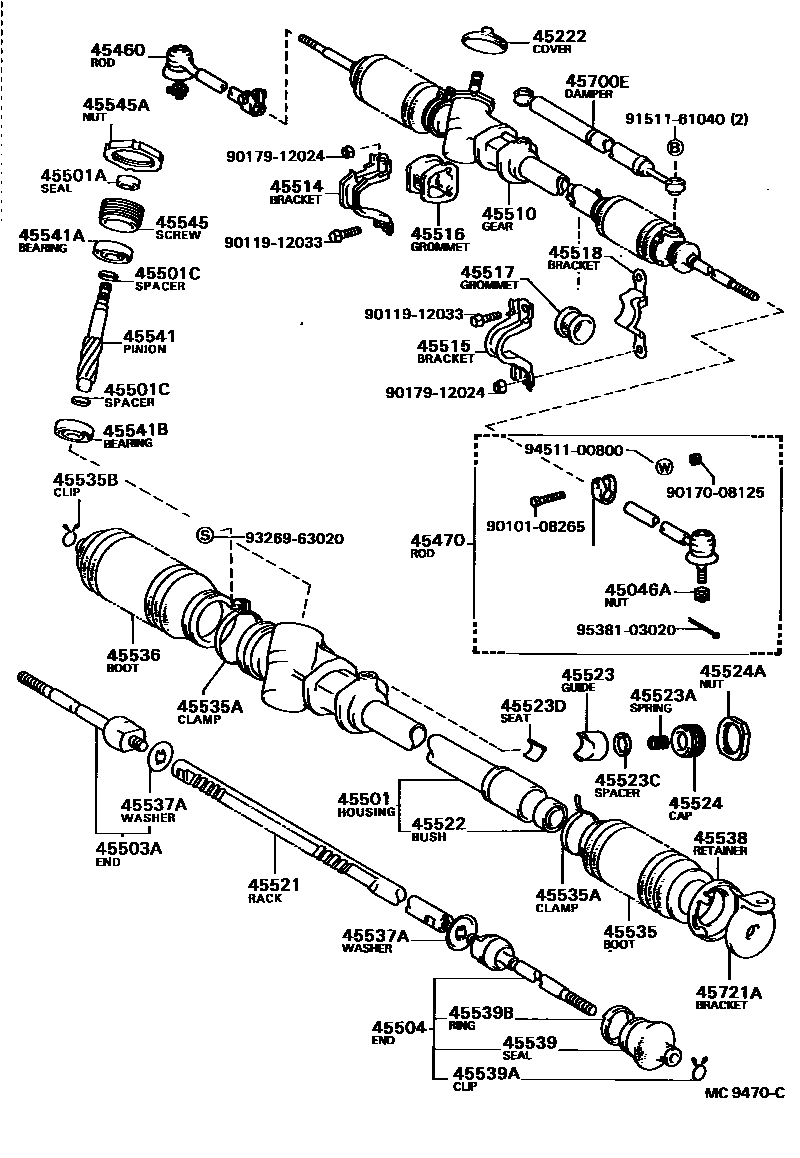

FRONT STEERING GEAR & LINK
45046ANUT, CASTLE(FOR TIE ROD END)
45222COVER, STEERING GEAR DUST
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45501HOUSING SUB-ASSY, STEERING RACK
CONSTANT GEAR RATIO
VARIABLE GEAR RATIO
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45501CSPACER(FOR STEERING RACK HOUSING)
VARIABLE GEAR RATIO
45503AEND SUB-ASSY, STEERING RACK, NO.1
45504END SUB-ASSY, STEERING RACK, NO.2
45510GEAR ASSY, STEERING
CONSTANT GEAR RATIO
VARIABLE GEAR RATIO
45514BRACKET, STEERING RACK HOUSING, NO.1
W/POWER STEERING
W/POWER STEERING
45515BRACKET, STEERING RACK HOUSING, NO.2
W/POWER STEERING
W/POWER STEERING
W/POWER STEERING
W/POWER STEERING
45516GROMMET, STEERING RACK HOUSING, NO.1
45517GROMMET, STEERING RACK HOUSING, NO.2
W/POWER STEERING
W/POWER STEERING
45518BRACKET, STEERING RACK HOUSING, NO.3
45521RACK, STEERING
CONSTANT GEAR RATIO
VARIABLE GEAR RATIO
45522BUSH, STEERING RACK
45523GUIDE, RACK(FOR STEERING GEAR)
CONSTANT GEAR RATIO
VARIABLE GEAR RATIO
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
CONSTANT GEAR RATIO
VARIABLE GEAR RATIO
45523CSPACER(FOR RACK GUIDE)
CONSTANT GEAR RATIO
VARIABLE GEAR RATIO
45523DSEAT, RACK GUIDE
VARIABLE GEAR RATIO
45524CAP, STEERING RACK GUIDE SPRING
CONSTANT GEAR RATIO
VARIABLE GEAR RATIO
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535ACLAMP(FOR STEERING RACK BOOT)
NO.2
NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537AWASHER, CLAW(FOR STEERING RACK END LOCK)
NO.1
NO.2
45538RETAINER, STEERING RACK BOOT
45539GUIDE, REAR STEERING CONTROL CABLE, NO.1
45539ACLIP(FOR RACK END DUST SEAL)
45539BRING, SET(FOR RACK END DUST SEAL)
45541PINION, STEERING
CONSTANT GEAR RATIO
VARIABLE GEAR RATIO
45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)
45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)
45545SCREW, PINION BEARING ADJUSTING
CONSTANT GEAR RATIO
45545ANUT(FOR PINION BEARING ADJUSTING SCREW)
45700EDAMPER ASSY, STEERING
45721ABRACKET, STEERING DAMPER, NO.2
9010108265
9011912033
9017008125
9017912024
9151161040
9326963020
9451100800
9538103020
47 parts on this diagram · 6 diagrams in section
