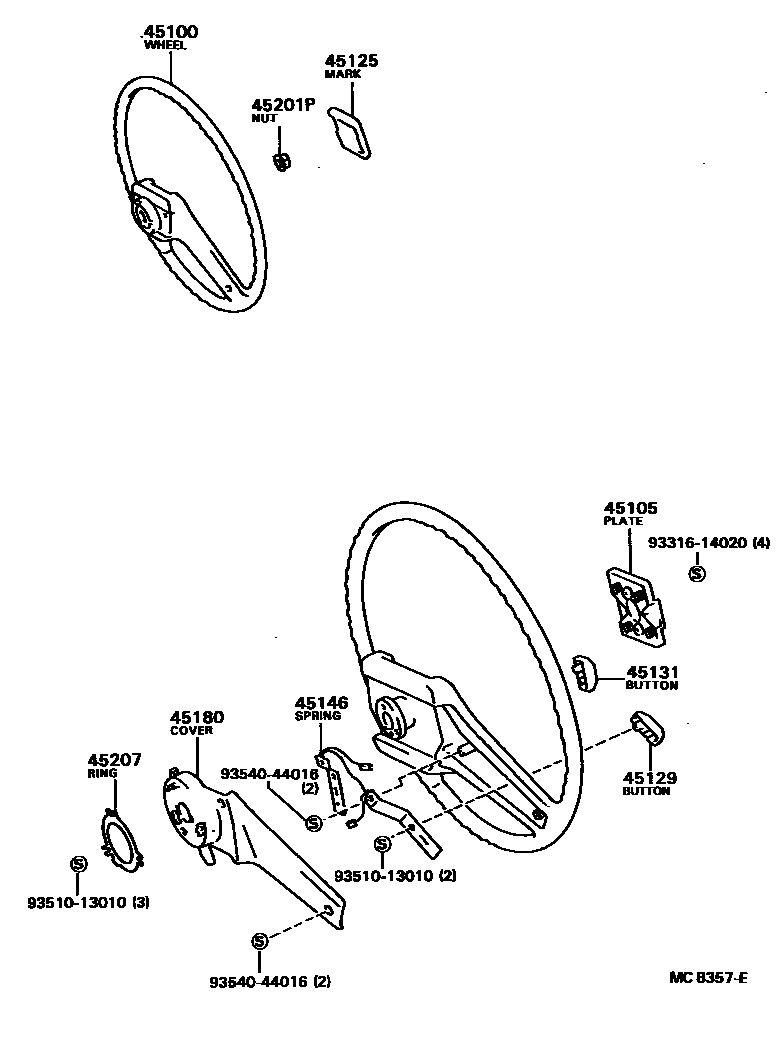

STEERING WHEEL
45100WHEEL ASSY, STEERING
BLUE,TOKAIRIKA,BLUE,TRIM8#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
TOYODA GOSEI
45125MARK, STEERING WHEEL PAD
BLACK,BLACK,TRIM1#,8#
DARK GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
DEEP BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
45129BUTTON, HORN, NO.2
45131BUTTON, HORN, NO.1
45146SPRING, HORN BUTTON CONTACT
TOKAIRIKA
TOKAIRIKA
45180COVER SUB-ASSY, STEERING WHEEL
SHADOW GRAY,TOYODA GOSEI,SHADOW GRAY,TRIM1#,8#
sub45180-32020
45201PNUT, STEERING WHEEL SET
9331614020
main93316-14020
9351013010
main93510-13010
9354044016
main93540-44016
12 parts on this diagram · 3 diagrams in section
