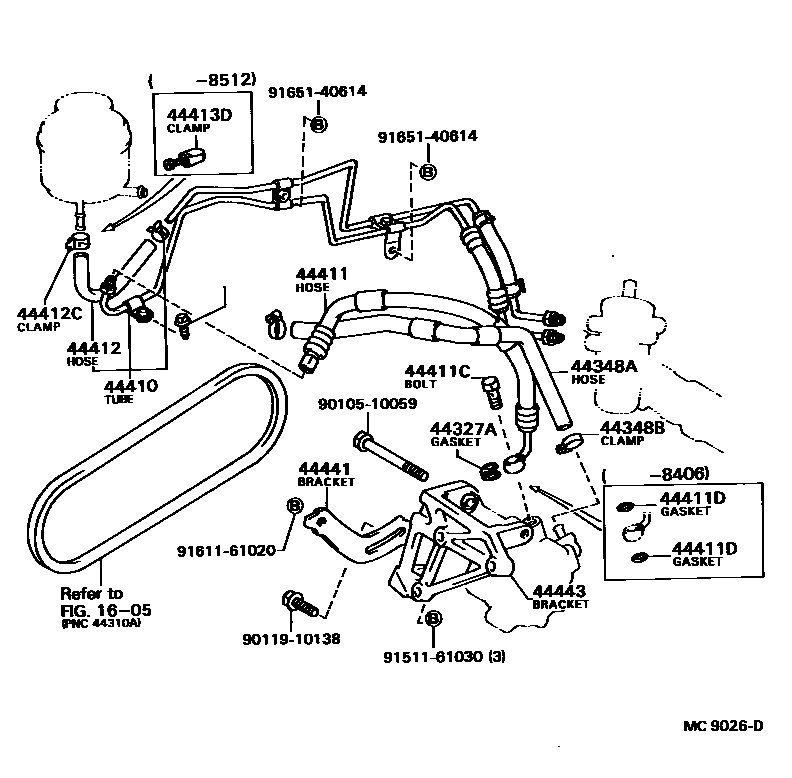

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCV1#,SV1#198406-198610

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32010iSV1#198210-198406

main44348-32020iCV1#198308-198610

main44348-32030iSV1#198406-198610

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iCV1#,SV1#198210-198610

44410TUBE ASSY, PRESSURE FEED

main44410-32020iSV1#..RHD198210-198610

main44410-32030iSV1#..LHD198210-198507

main44410-32031iSV1#..LHD198507-198610

main44410-32040iCV1#..RHD198308-198610

main44410-32050iCV1#..LHD198308-198610

44411HOSE, PRESSURE FEED

main44411-32010iSV1#198210-198610

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16005iSV1#198210-198408

sub90401-16008

main90401-16008iSV1#198408-198610

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242iSV1#198210-198406

44412HOSE, RETURN

main44412-32010iSV1#..RHD198210-198610

sub90445-18137

main90445-18101iSV1#..LHD198504-198610

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iCV11,SV1#198512-198610

sub90467-16019

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001iSV1#198210-198512

44441BRACKET, PUMP, FRONT

main44441-32010iSV1#198210-198610

44443BRACKET, PUMP

main44443-32010iSV1#198210-198610

9010510059

main90105-10059

9011910138

main90119-10138

9151161030

main91511-61030

9161161020

main91611-61020

9165140614

main91651-40614

18 parts on this diagram · 4 diagrams in section
