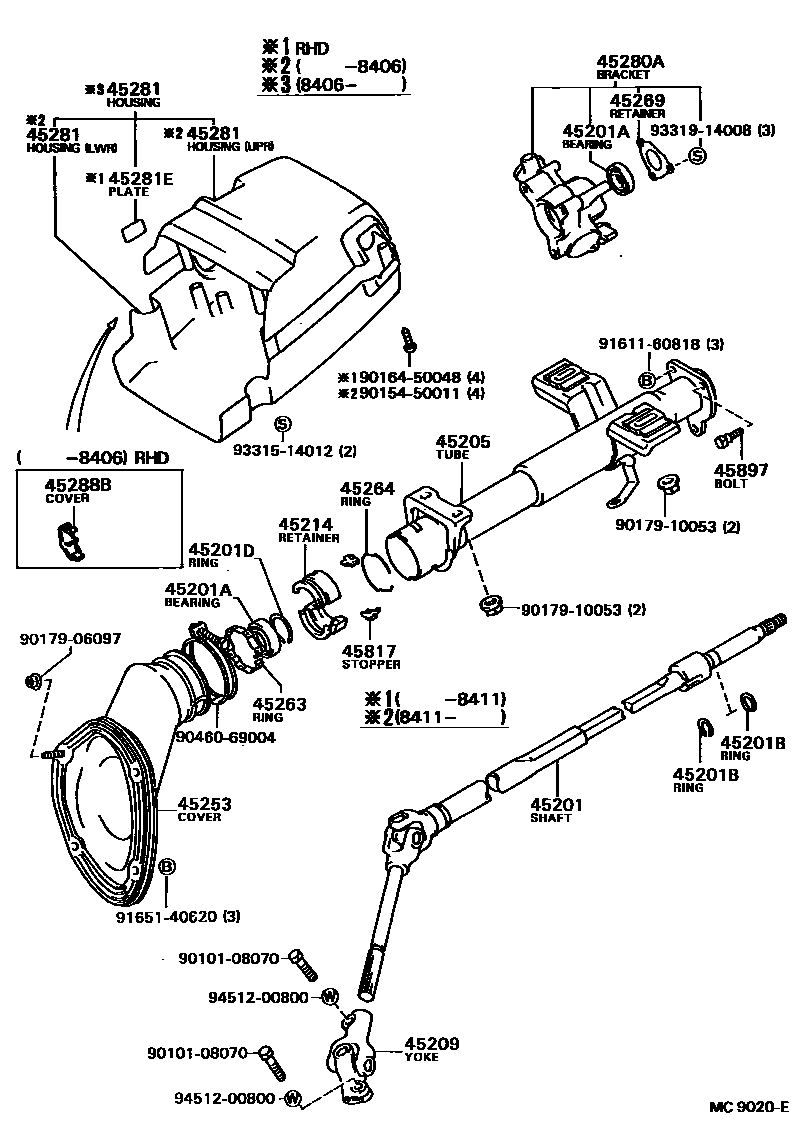

STEERING COLUMN & SHAFT
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201DRING(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
W/PS
W/TILT STRG,W/TILT STRG & PS
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-10020
45214RETAINER, MAIN SHAFT SPRING
45253COVER, STEERING COLUMN HOLE
45263RING, STEERING COLUMN, NO.1
45264RING, STEERING COLUMN, NO.2
45269RETAINER, MAIN SHAFT BEARING
45280ABRACKET ASSY, STEERING COLUMN, UPPER
sub45280-32050
W/UNLOK WARNING
sub45280-32020
W/UNLOK WARNING
45281HOUSING, STEERING COLUMN
SHADOW GRAY,W/TILT STEERING,SHADOW GRAY,TRIM1#
sub45286-32905
SHADOW GRAY,W/TILT STEERING,SHADOW GRAY,TRIM1#
sub45286-32908
45281EPLATE, SAFETY CAUTION
45288BCOVER, STEERING COLUMN, UPPER
BLACK,BLACK,TRIM1#,8#
DEEP BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
DARK GRAY,GRAY,TRIM1#
45817STOPPER, STEERING SHAFT THRUST
45897BOLT, STEERING LOCK SET
9010108070
main90101-08070
9015450011
main90154-50011
9016450048
main90164-50048
9017906097
main90179-06097
9017910053
main90179-10053
9046069004
main90460-69004
9161160818
main91611-60818
9165140620
main91651-40620
9331514012
main93315-14012
9331914008
main93319-14008
9451200800
main94512-00800
28 parts on this diagram · 2 diagrams in section
