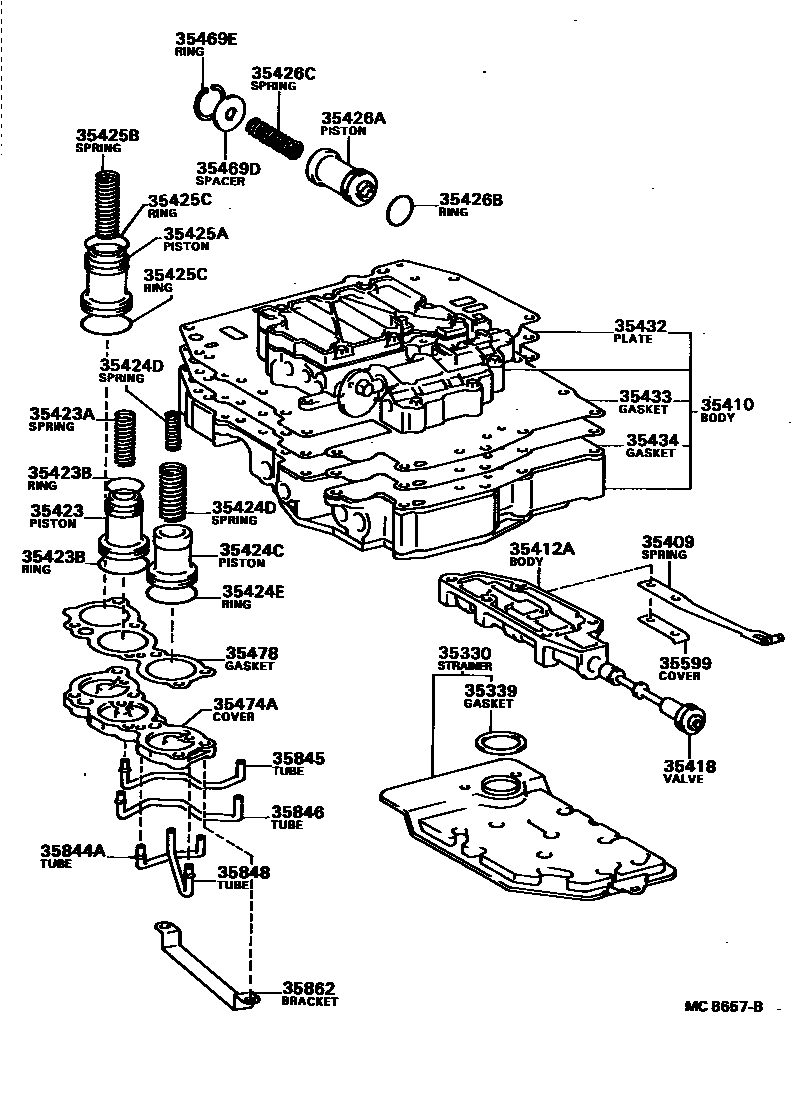

VALVE BODY & OIL STRAINER (ATM)
35330STRAINER ASSY, VALVE BODY OIL
sub35330-20010
35339GASKET, OIL STRAINER
35409SPRING SUB-ASSY, MANUAL DETENT
35412ABODY, MANUAL VALVE
35418VALVE, MANUAL
35423PISTON, B-2 ACCUMULATOR
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPR
LWR
35424CPISTON, C-1 ACCUMULATOR
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
INNER
OUTER
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPR
LWR
35426APISTON, C-0 ACCUMULATOR
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35469ERING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER)
35474ACOVER, ACCUMULATOR
35478GASKET, ACCUMULATOR COVER
35599COVER, MANUAL DETENT SPRING
35844ATUBE, ACCUMULATOR BACK PRESSURE, NO.1
35848TUBE, FORWARD CLUTCH ACCUMULATOR
31 parts on this diagram · 4 diagrams in section
