REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32010iCV10,SV1#..4FC¥2,530198210-198411

sub35145-32011¥2,550

main35145-32011iCV1#,SV1#..4FC¥2,550198411-198610

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iCV1#,SV1#..4FC¥200198210-198610

35149COVER, GOVERNOR

main35149-32010iCV1#,SV1#..4FC¥450198210-198610

35149ARING, O (FOR GOVERNOR COVER)

main90301-67001iCV1#,SV1#..4FC¥590198210-198610

35157AADAPTER, GOVERNOR BODY

main35157-32010iCV10,SV1#..4FC¥1,800198210-198411

sub35157-32011¥1,810

sub90201-25003¥180

main35157-32011iCV1#,SV1#..4FC¥1,810198411-198610

35188ABRACKET, GOVERNOR COVER

main35188-32011iCV1#,SV1#..4FC¥2,740198210-198610

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32010iCV1#,SV1#..4FC¥340198210-198610

sub35189-32011¥350

35480FBODY ASSY, GOVERNOR

main35480-32010iSV1#..4FC¥13,000198210-198412

sub35480-32011¥12,800

main35480-32012iSV1#..4FC¥13,600198412-198610

sub35480-32013¥11,900

main35480-32020iCV10..4FC¥11,100198308-198412

sub35480-32021¥11,600

main35480-32021iCV1#..4FC¥11,600198412-198610

sub35480-32022¥10,100

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iCV1#,SV1#..4FC¥180198407-198610

main90201-26004iCV10,SV1#..4FC¥180198210-198407

35779GEAR, GOVERNOR DRIVE

main35779-32010iCV1#,SV1#..4FC¥2,940198210-198610

9161140814

main91611-40814¥130

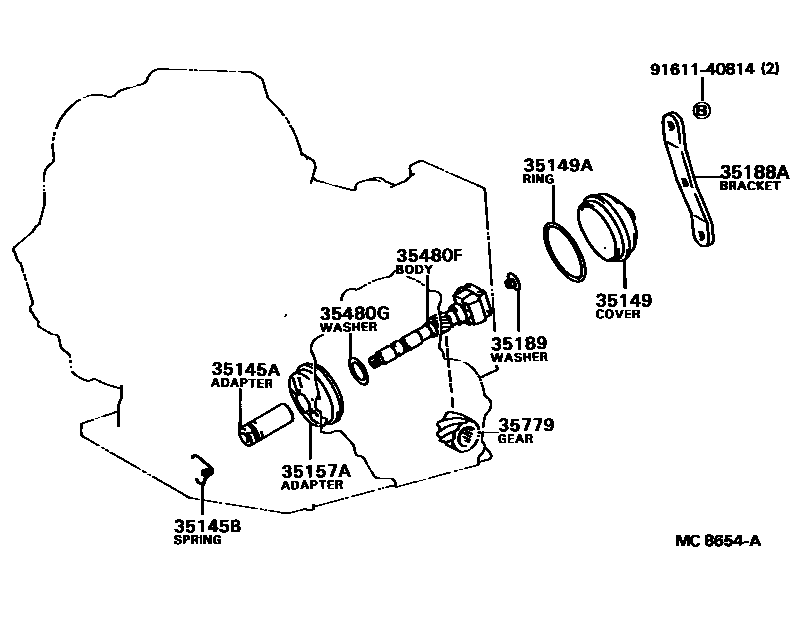

11 parts on this diagram · 1 diagram in section
