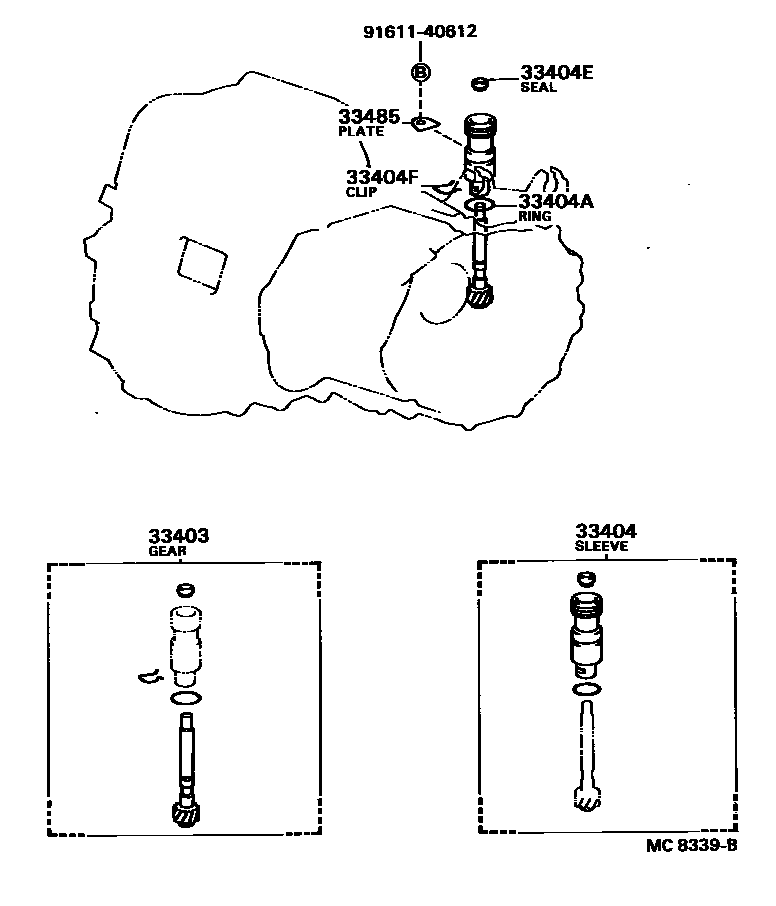

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39085iSV1#..5F..EUR198210-198308

N=21,MARK 21:25,N=21

main33403-39115iSV11..5F..ARL198303-198610

N=22,MARK 22:25,N=22

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iCV1#,SV1#..5F198210-198610

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iCV1#,SV1#..5F198210-198610

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCV1#,SV1#..5F198210-198610

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCV1#,SV1#..5F198210-198610

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iCV1#,SV1#..5F198210-198610

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section
