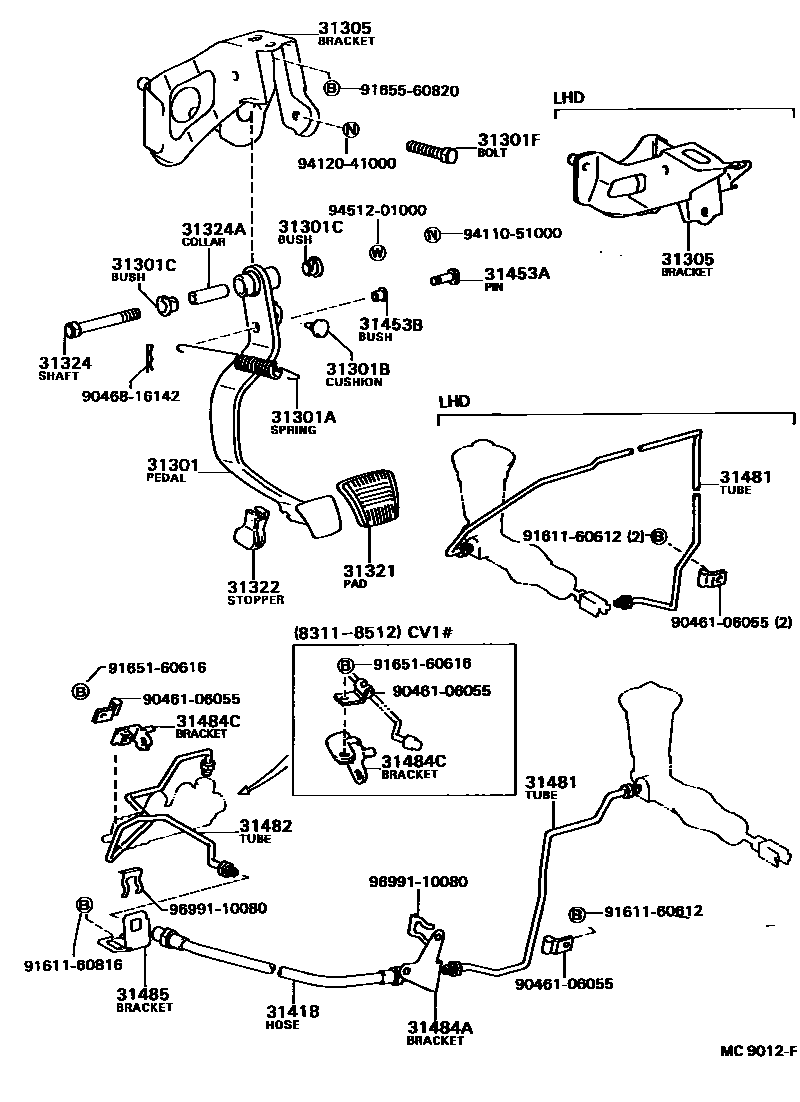

CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31305BRACKET SUB-ASSY, CLUTCH PEDAL
31321PAD, CLUTCH PEDAL
31322STOPPER, CLUTCH PEDAL
31324SHAFT, CLUTCH PEDAL
31324ACOLLAR, CLUTCH PEDAL SHAFT
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
L=29.5
L=30
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484CBRACKET, CLUTCH TUBE, NO.1
31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
9046106055
main90461-06055
9046816142
main90468-16142
9161160612
main91611-60612
9161160816
main91611-60816
9165160616
main91651-60616
9165560820
main91655-60820
9411051000
main94110-51000
9412041000
main94120-41000
9451201000
main94512-01000
9699110080
main96991-10080
28 parts on this diagram · 1 diagram in section
