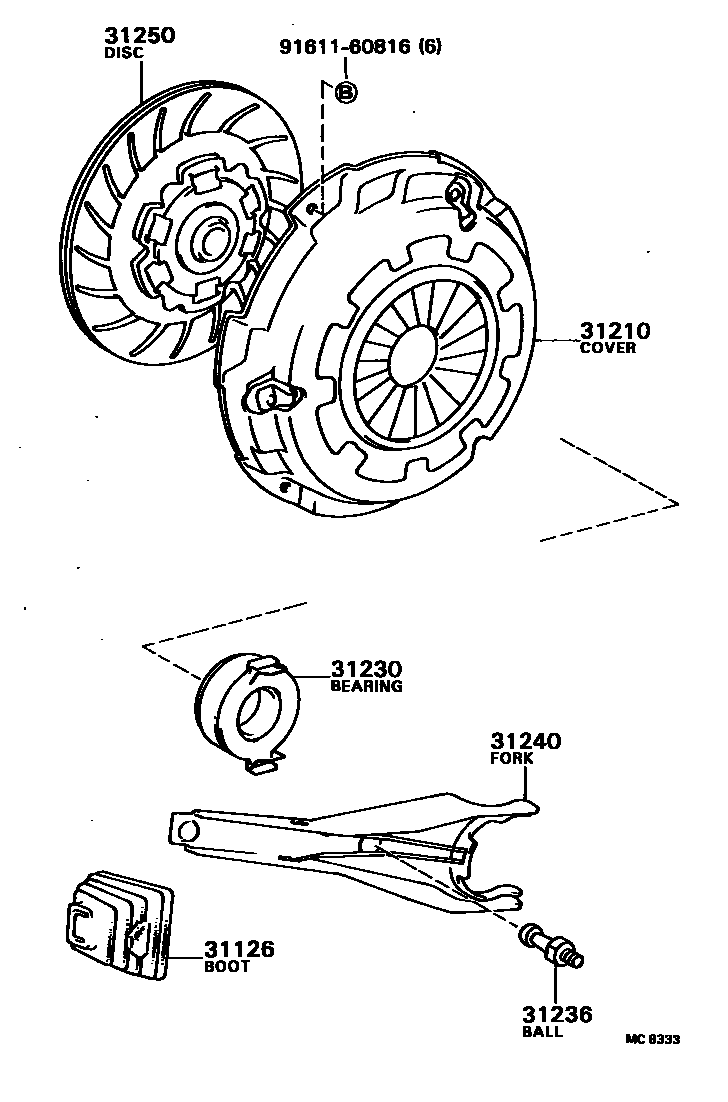

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iCV1#,SV1#..5F198210-198610

31210COVER ASSY, CLUTCH

main31210-32010iSV11..5F198303-198610

sub31210-32060

main31210-32020iSV10..5F198210-198610

sub31210-32030

main31210-32080iCV11..5F198605-198610

sub31210-32062

31230BEARING ASSY, CLUTCH RELEASE

main31230-32020iSV11..5F..SDZ;SV11..5F..ARL198303-198610

sub31230-32100

main31230-32040iCV1#,SV10..5F198210-198610

sub31230-32020

31236BALL, RELEASE FORK

main31236-30030iCV1#,SV1#..5F198210-198610

31240FORK ASSY, CLUTCH RELEASE

main31204-32010iCV1#,SV1#..5F198210-198610

31250DISC ASSY, CLUTCH

main31250-32010iCV10..5F198308-198508

sub31250-32050

main31250-32021iSV10..5F198210-198312

sub31250-32023

main31250-32023iSV10..5F198312-198409

sub31250-32024

main31250-32024iSV10..5F198409-198609

sub31250-32025

main31250-32025iSV10..5F198609-198610

sub31250-32026

main31250-32030iSV11..5F198210-198403

sub31250-32031

main31250-32031iSV11..5F198403-198508

sub31250-32032

main31250-32032iSV11..5F198508-198610

sub31250-32041

main31250-32050iCV11..5F198508-198607

sub31250-32051

main31250-32060iCV11..5F198607-198610

sub31250-32061

9161160816

main91611-60816

7 parts on this diagram · 1 diagram in section
