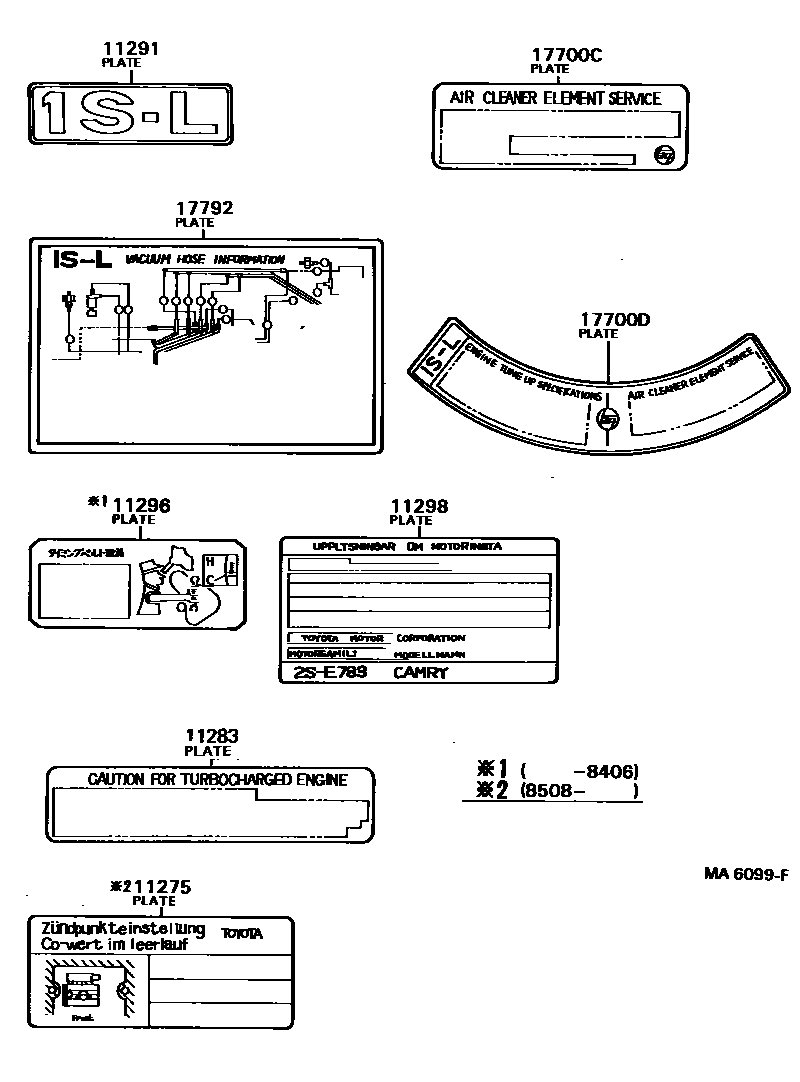

CAUTION PLATE & NAME PLATE (ENGINE)

11275PLATE, IGNITION TIMING ADJUSTING CAUTION

main11275-74030i2SELC..SV11..FRG198508-198610

11283PLATE, TURBOCHARGER CAUTION

main11294-64020i1CTL,2CTL..CV1#198308-198610

sub11294-64050

11291PLATE, ENGINE NAME

main11291-63030i1SL..SV10198210-198610

1S-L

main11291-64020i1CTL..CV10198308-198508

1C-T

main11291-64050i2CTL..CV11198508-198610

2C-T

main11291-74010i2SE#..SV11198303-198610

2S-E

11296PLATE, TIMING BELT CAUTION

main11296-54010i1CTL..CV10198308-198406

11298PLATE, EMISSION CONTROL INFORMATION

main11298-74030i2SELC..SV11..SDZ198303-198310

SWITZERLAND SPEC

sub11298-74031

main11298-74031i2SELC..SV11..SDZ198310-198406

SWITZERLAND SPEC

main11298-74032i2SELC..SV11..SDZ198406-198610

SWITZERLAND SPEC

main11298-74040i2SELC..SV11..4D198303-198406

SWEDEN SPEC

main11298-74041i2SELC..SV11..SDZ198406-198607

SWEDEN SPEC

main11298-74042i2SELC..SV11..SDZ198607-198610

SWEDEN SPEC

main11298-74050i2SELC..SV11..ARL198303-198508

main11298-74100i2SELC..SV11..ARL198508-198610

main11298-74190i2SELC..SV11..FRG198508-198610

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-28010i2SELC..SV11198303-198508

sub17791-16040

main17791-74010i2SELC..SV11198508-198610

17700DPLATE, ENGINE CAUTION

main11293-63020i1SL..SV10198210-198610

main11293-64030i1CTL,2CTL..CV1#198308-198610

main11293-74030i2SEL..SV11198310-198610

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-63040i1SL..SV10198210-198312

main17792-63041i1SL..SV10198312-198610

main17792-74031i2SELC..SV11198303-198610

main17792-74050i2SELC..SV11..FRG;2SELC..SV11..ARL198508-198610

8 parts on this diagram · 1 diagram in section
