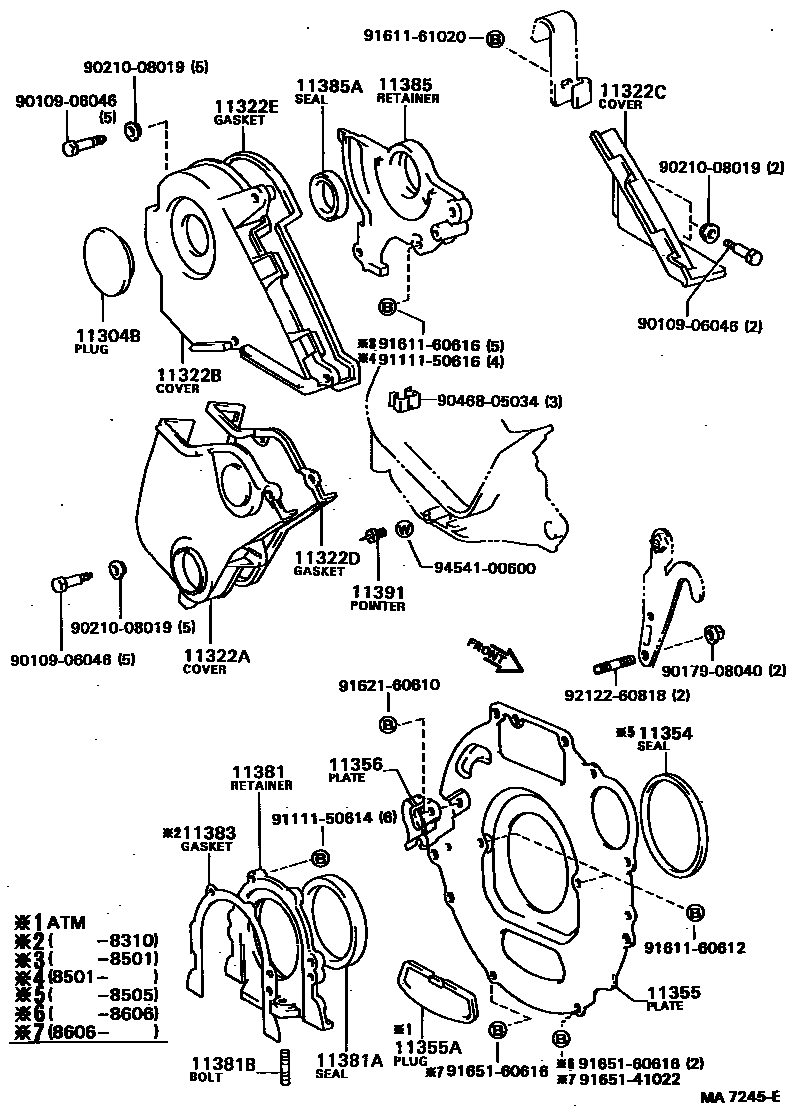

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-63010i1SL,2SE#..SV1#198210-198610

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01334i1SL,2SE#..SV1#198210-198610

main90950-01357i1CTL,2CTL..CV1#198308-198610

OD=64

11322ACOVER, TIMING BELT, NO.1

main11321-64010i1CTL,2CTL..CV1#198308-198610

sub11321-64011

11322BCOVER, TIMING BELT, NO.2

main11322-64010i1CTL,2CTL..CV1#198308-198610

11322CCOVER, TIMING BELT, NO.3

main11323-64010i1CTL,2CTL..CV1#198308-198602

sub11323-64011

main11323-64011i2CTL..CV11198602-198610

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i1CTL,2CTL..CV1#198308-198610

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i1CTL,2CTL..CV1#198308-198610

11354SEAL, FLYWHEEL HOUSING DUST

main11354-64010i1CTL..CV10198308-198505

11355PLATE, REAR END

main11355-63020i1SL,2SE#..SV1#198210-198606

sub11355-63021

main11355-63021i1SL,2SE#..SV1#198606-198610

main11355-64030i1CTL..CV10..5F198308-198505

sub11355-64031

main11355-64031i1CTL,2CTL..CV1#..5F198505-198606

sub11355-64032

sub91661-60616

main11355-64032i2CTL..CV11..5F198606-198610

sub11355-64050

sub11356-64040

main11355-64040i1CTL..CV10..4FC198308-198505

sub11355-64041

main11355-64041i1CTL,2CTL..CV1#..4FC198505-198606

sub11355-64060

sub11356-64040

sub91661-60612

main11355-64042i2CTL..CV11..4FC198606-198610

sub11355-64060

sub11356-64040

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01358i1CTL,2CTL..CV1#..4FC198308-198606

sub90950-01548

main90950-01548i2CTL..CV11..4FC198606-198610

11356PLATE, REAR END, NO.2

main11356-63020i1SL,2SE#..SV1#198210-198606

sub11356-63030

main11356-63030i1SL,2SE#..SV1#198606-198610

sub11356-63031

main11356-64010i1CTL,2CTL..CV1#198308-198610

11381RETAINER, ENGINE REAR OIL SEAL

main11381-63010i1SL,2SE#..SV1#198210-198607

main11381-63011i1SL,2SE#..SV1#198607-198610

sub11381-63012

main11381-64010i1CTL..CV10198308-198310

sub11381-64011

main11381-64011i1CTL..CV10198310-198505

sub11381-64012

main11381-64012i1CTL,2CTL..CV1#198505-198610

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-85003i1SL,2SE#..SV1#198210-198610

sub90311-85006

main90311-90002i1CTL..CV10198308-198505

sub90311-90003

main90311-90003i1CTL,2CTL..CV1#198505-198610

sub90311-90005

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90116-06022i1SL,2SE#..SV1#198210-198607

main90116-06033i1CTL,2CTL..CV1#198308-198610

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-63010i1SL,2SE#..SV1#198210-198610

sub11383-63011

main11383-64010i1CTL..CV10198308-198310

sub11383-64011

11385RETAINER, CAMSHAFT OIL SEAL

main11382-63010i1SL,2SE#..SV1#198210-198610

main11382-64010i1CTL..CV10198308-198501

main11382-64011i1CTL,2CTL..CV1#198501-198610

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38017i1SL,2SE#..SV1#198210-198610

sub90311-38046

main90311-38025i1CTL,2CTL..CV1#198501-198610

11391POINTER, TIMING

main11391-64020i1CTL,2CTL..CV1#198308-198610

9010906046

main90109-06046

9017908040

main90179-08040

9021008019

main90210-08019

9046805034

main90468-05034

9111150614

main91111-50614

9111150616

main91111-50616

9161160612

main91611-60612

9161160616

main91611-60616

9161161020

main91611-61020

9162160610

main91621-60610

9165141022

main91651-41022

9165160616

main91651-60616

9212260818

main92122-60818

9454100600

main94541-00600

32 parts on this diagram · 2 diagrams in section
