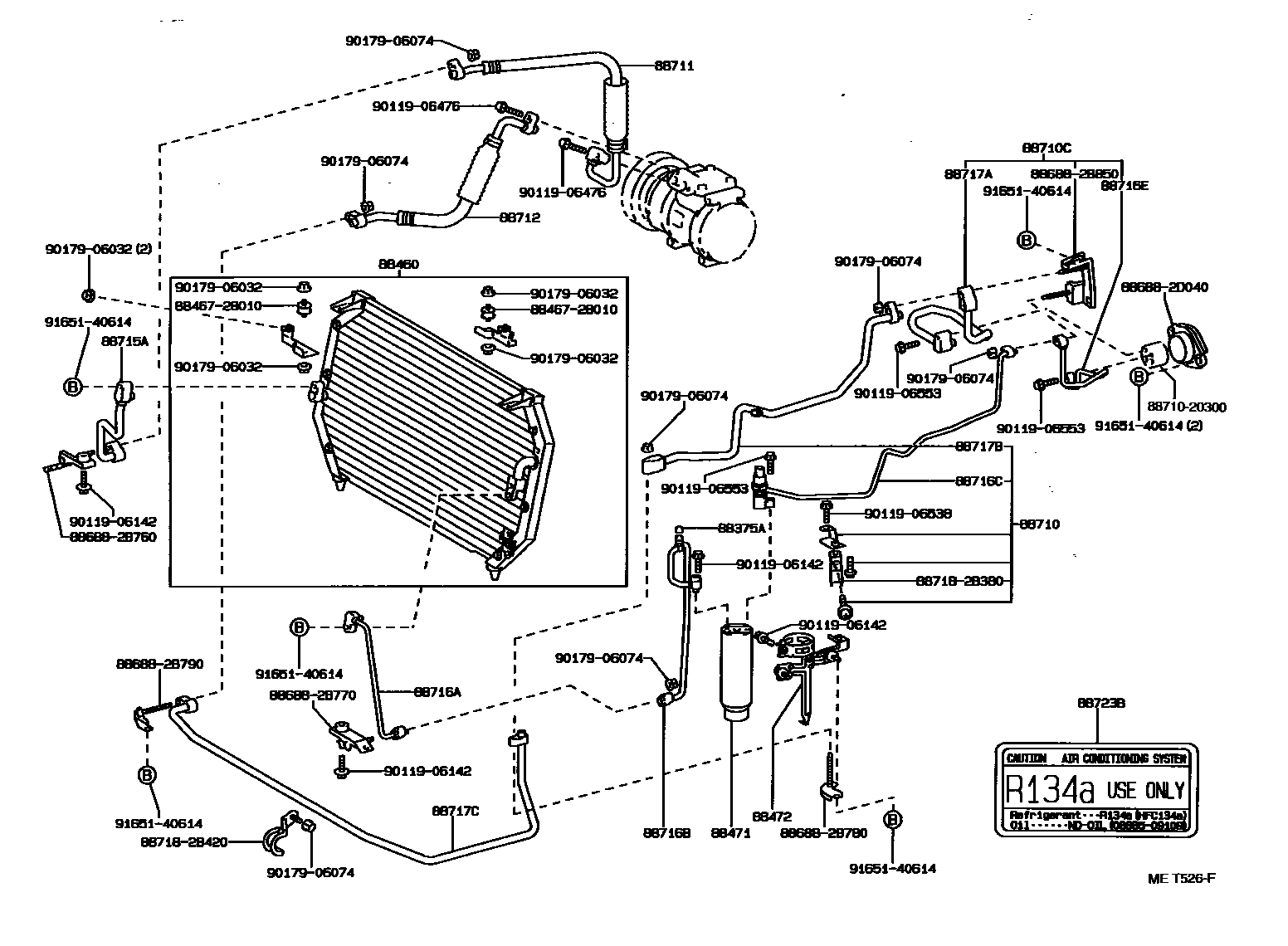

HEATING & AIR CONDITIONING - COOLER PIPING
88375ACAP, SERVICE VALVE (FOR COOLER PIPE)
MAKER OPTION
DEALER OPTION,NO.1
NO.1
DEALER OPTION
MAKER OPTION
NO.2
DEALER OPTION,NO.2
88460CONDENSER ASSY, COOLER
88471TANK, RECEIVER AIR CONDITIONER
sub88471-34010
88472BRACKET, RECEIVER TANK, NO.1
DEALER OPTION
MAKER OPTION
MAKER OPTION
88710TUBE ASSY, AIR CONDITIONER
W(*66) & MAKER OPTION OR DEALER OPTION
88710CTUBE ASSY, AIR CONDITIONER
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
DEALER OPT
MAKER OPT
MAKER OPT
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
DEALER OPTION
MAKER OPTION
DEALER OPTION
MAKER OPTION
88715APIPE, COOLER REFRIGERANT DISCHARGE, A
sub88715-20170
88716APIPE, COOLER REFRIGERANT LIQUID, A
DEALER OPTION
88716BPIPE, COOLER REFRIGERANT LIQUID, B
sub88716-2D151
MAKER OPTION
NORWAY OR WEST GERMANY OR AUSTRIA OR DENMARK OR FINLAND,DEALER OPT OR MAKER OPT
WEST GERMANY OR DENMARK OR FINLAND,DEALER OPT OR MAKER OPT
sub88716-2D181
MAKER OPTION
88716CPIPE, COOLER REFRIGERANT LIQUID, C
DEALER OPTION
88716EPIPE, COOLER REFRIGERANT LIQUID, E
DEALER OPTION
DEALER OPTION
MAKER OPTION
DEALER OPTION
MAKER OPTION
88717APIPE, COOLER REFRIGERANT SUCTION, A
W(*66)
88717BPIPE, COOLER REFRIGERANT SUCTION, B
W(*66) & MAKER OPTION OR DEALER OPTION
88717CPIPE, COOLER REFRIGERANT SUCTION, C
DEALER OPT
MAKER OPT
88723BLABEL, COOLER SERVICE CAUTION
8846728010CUSHION, COOLER CONDENSER, NO.1
main88467-28010
886882B760BRACKET, COOLER DIAPHRAGM
main88688-2B760
886882B770BRACKET, COOLER DIAPHRAGM
main88688-2B770
886882B780BRACKET, COOLER DIAPHRAGM
main88688-2B780
886882B790BRACKET, COOLER DIAPHRAGM
main88688-2B790
886882B850BRACKET, COOLER DIAPHRAGM
main88688-2B850
886882D040BRACKET, COOLER DIAPHRAGM
main88688-2D040
8871020300TUBE ASSY, AIR CONDITIONER
main88710-20300
887182B380PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2B380
887182B420PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2B420
9011906142
main90119-06142
9011906476
main90119-06476
9011906538
main90119-06538
9011906553
main90119-06553
9017906032
main90179-06032
9017906074
main90179-06074
9165140614
main91651-40614
34 parts on this diagram · 5 diagrams in section
