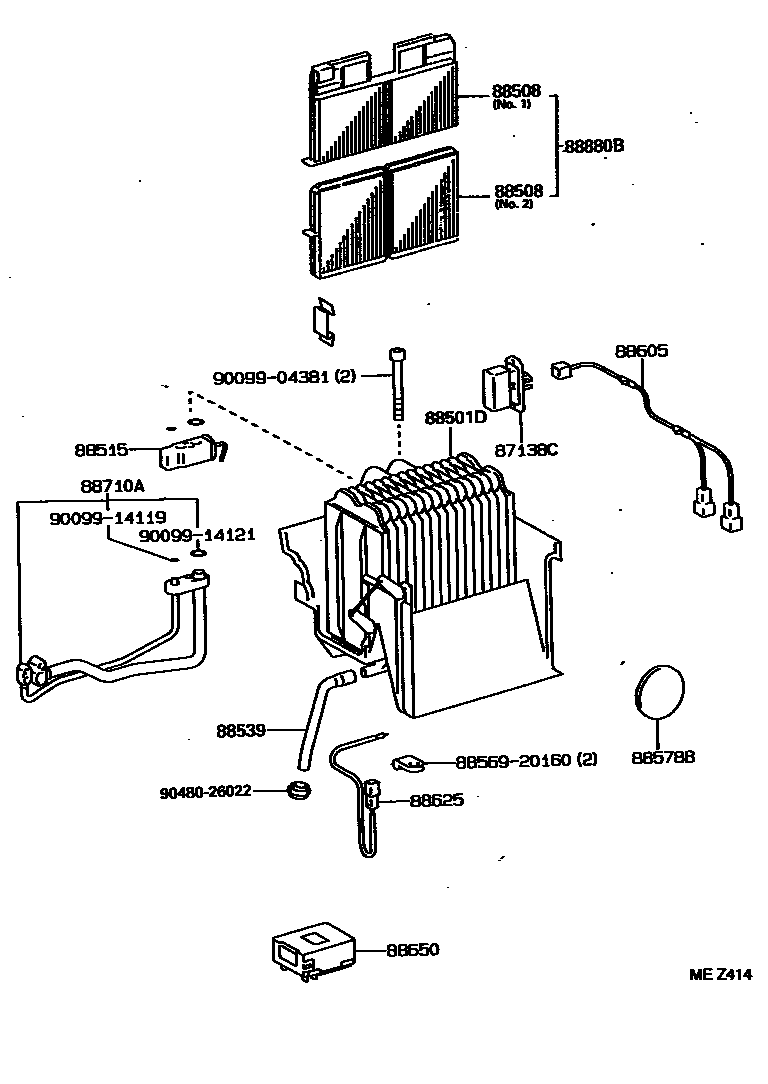

HEATING & AIR CONDITIONING - COOLER UNIT
88508FILTER SUB-ASSY, CLEAN AIR
NO.1
NO.2
88515VALVE, COOLER EXPANSION
sub88515-22240
88539HOSE, COOLER UNIT DRAIN, NO.1
88578BPACKING, COOLING UNIT, NO.1
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
88625THERMISTOR, COOLER, NO.1
MAKER OPTION
88650AMPLIFIER ASSY, COOLER STABILIZER
MAKER OPTION,NORWAY OR WEST GERMANY OR AUSTRIA OR DENMARK OR FINLAND SPEC
MAKER OPT
88710ATUBE ASSY, AIR CONDITIONER
DEALER OPTION
8856920160CLAMP (FOR COOLER RELAY)
main88569-20160
9009904381
main90099-04381
9009914119
main90099-14119
9009914121
main90099-14121
9048026022
main90480-26022
16 parts on this diagram · 2 diagrams in section
