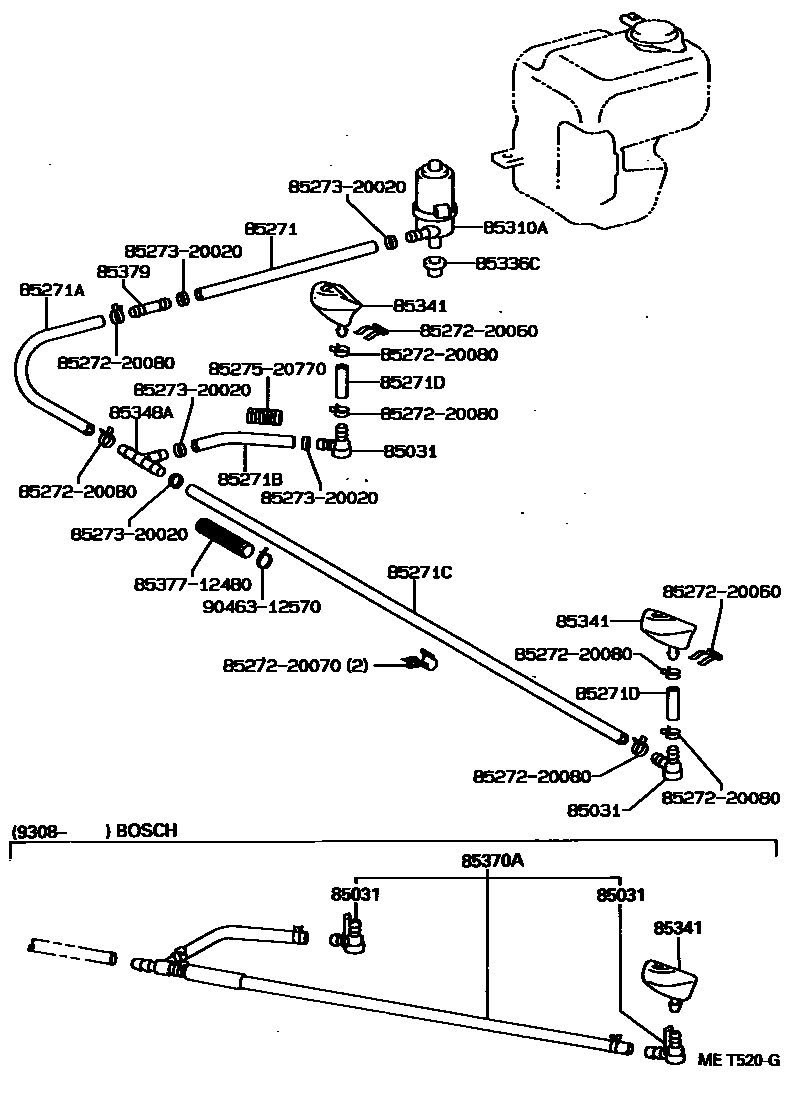

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iAT19#,ST191..JPP..RHD199211-199601

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-2B010iAT19#,CT190,ST191..JPP..LHD199211-199601

L=410

85271AHOSE, HEADLAMP CLEANER, NO.2

main85375-22061iAT190,ST191..JPP..RHD199211-199305

L=640

main85375-22150iAT19#,CT190,ST191..JPP..LHD199305-199601

L=300

85271BHOSE, HEADLAMP CLEANER, NO.3

main85343-95700iAT19#,CT190,ST191..JPP..LHD199305-199601

L=135

main85375-14400iAT190,ST191..JPP..RHD199211-199305

L=170

85271CHOSE, HEADLAMP CLEANER, NO.4

main90445-14042iAT190,ST191..JPP..RHD199211-199305

L=850

main90445-14072iAT19#,ST191..JPP..RHD199305-199601

L=1320

85271DHOSE, HEADLAMP CLEANER, NO.5

main85375-16020iAT19#,ST191..JPP..RHD199305-199601

L=40

main90445-14071iAT190,ST191..JPP..RHD199211-199305

L=50

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85330-20420iAT19#,ST191..JPP..RHD199307-199601

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iAT190,ST191..JPP..RHD199211-199307

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-20050iAT19#,CT190,ST191..JPP..LHD199211-199601

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iAT19#,ST191..JPP..RHD199211-199601

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

85379JOINT

main85379-22080iAT19#,CT190,ST191..JPP..LHD199211-199601

8527220060CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20060

8527220070CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20070

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8527520770WIRING SUB-ASSY, HEADLAMP CLEANER

main85275-20770

8537712480

main85377-12480

9046312570

main90463-12570

19 parts on this diagram · 1 diagram in section
