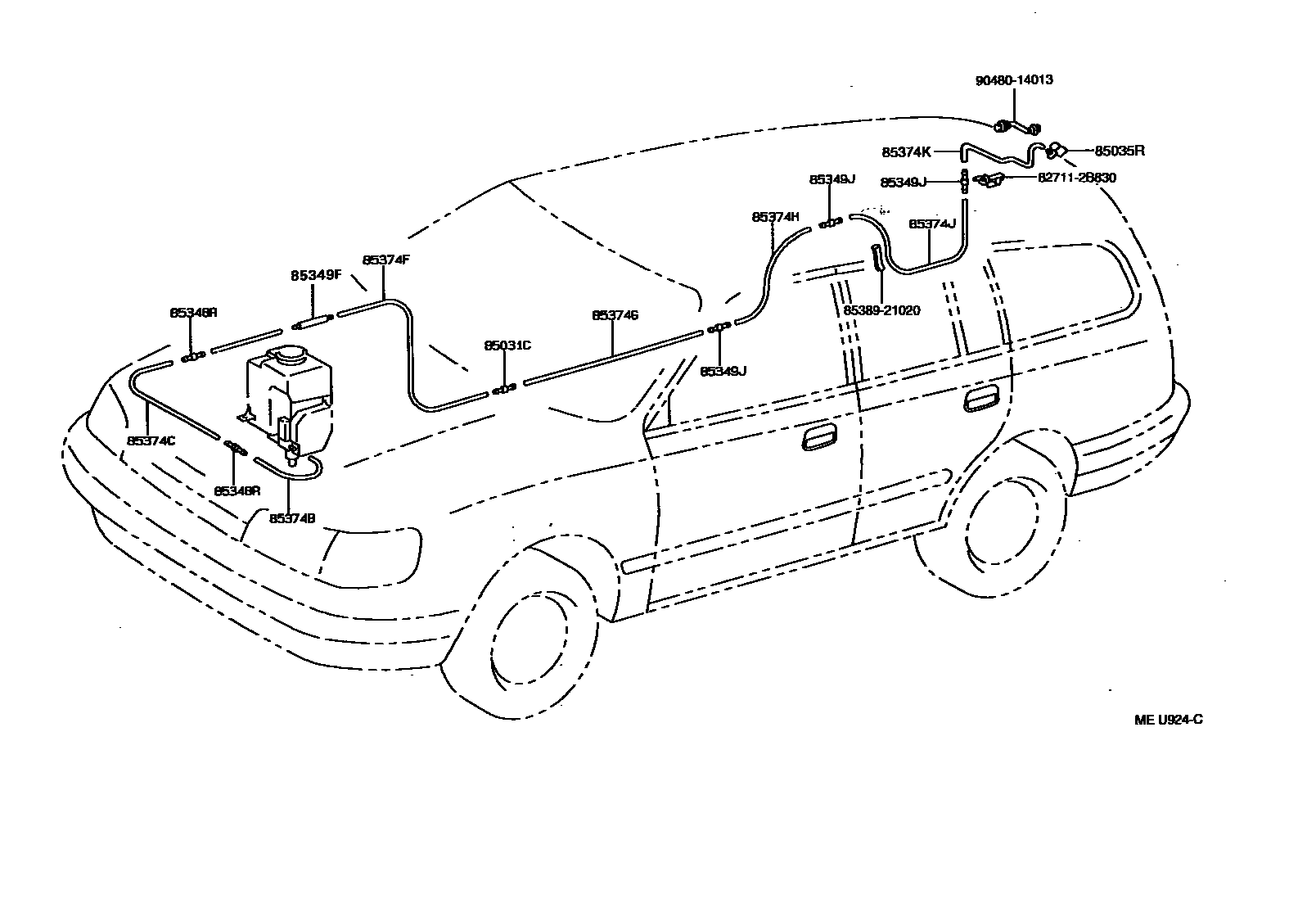

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iAT19#,CT190,ST191..JPP199211-199601

sub85375-12520

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-21010iAT19#,CT190,ST191..JPP199211-199601

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iAT19#,CT190,ST191..JPP199211-199601

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-32150iAT19#,CT190,ST191..JPP199211-199601

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-89122iAT19#,CT190,ST191..JPP199211-199601

85374BHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.1)

main90446-07001iAT19#,CT190,ST191..JPP199211-199601

L=1800

85374CHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.2)

main90099-33080iAT19#,CT190,ST191..JPP199211-199601

L=1450

85374FHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.5)

main90099-33651iAT19#,CT190,ST191..JPP199211-199601

L=1800(*H,L=1730)

sub90446-07001

85374GHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.6)

main90446-06006iAT19#,CT190,ST191..JPP199211-199601

L=2000

85374HHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.7)

main90099-33080iAT19#,CT190,ST191..JPP199211-199601

L=1450

85374JHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.8)

main90099-59074iAT19#,CT190,ST191..JPP199211-199601

L=1800(*H,L=1350)

sub90446-07001

85374KHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.9)

main90099-33080iAT19#,CT190,ST191..JPP199211-199601

L=1450

827112B830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B830

8538921020PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-21020

9048014013

main90480-14013

15 parts on this diagram · 1 diagram in section
