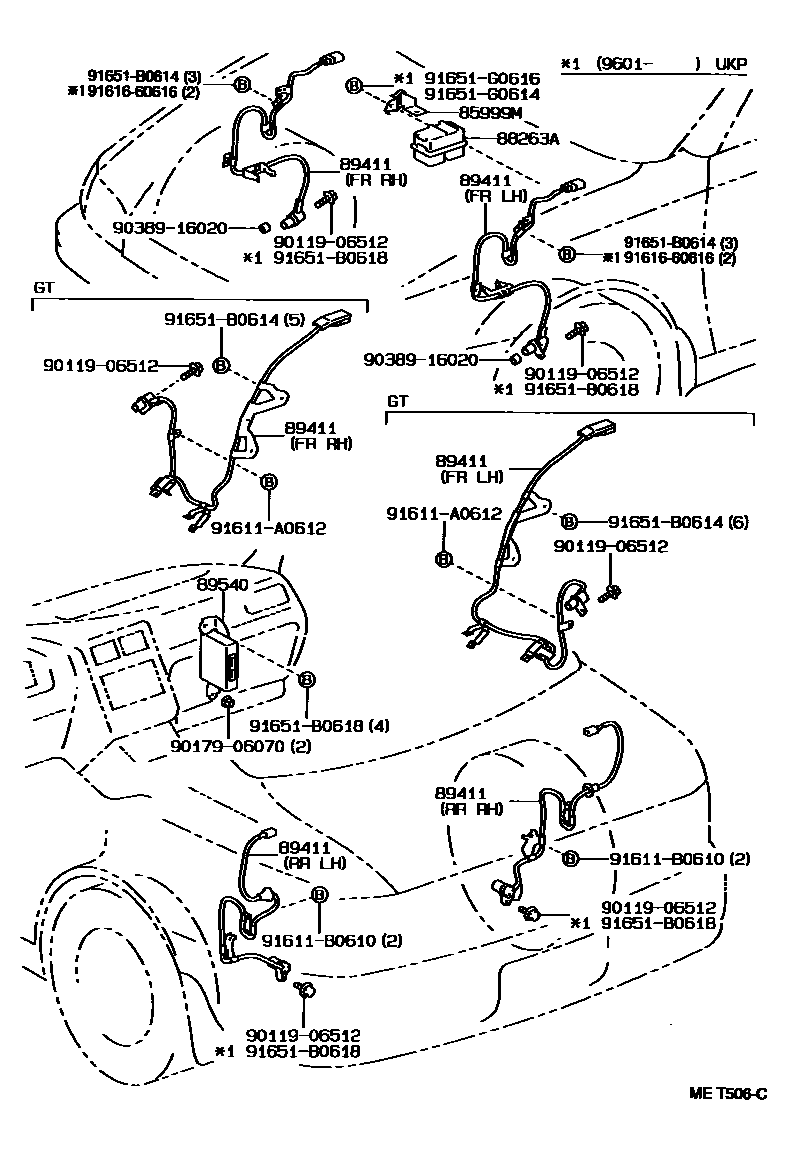

ABS & VSC

85999MBRACKET, RELAY

main85999-20500iAT19#,CT190,ST191..JPP199211-199601

88263ARELAY, SKID CONTROL

main88263-12070iAT190,CT190,ST191..JPP199211-199407

sub88263-12080

main88263-32060iAT19#,CT190,ST191..JPP199407-199601

89411SENSOR, SPEED

main89542-20080iAT19#,CT190,ST191..JPP199211-199601

FRONT RH

main89543-20080iAT19#,CT190,ST191..JPP199211-199601

FRONT LH

main89545-32030iAT19#,CT190,ST191..JPP199211-199601

REAR RH

sub89545-33020

main89546-32030iAT19#,CT190,ST191..JPP199211-199601

REAR LH

sub89546-33020

89540COMPUTER ASSY, SKID CONTROL

main89540-20250iAT19#,ST191..JPP..RHD199211-199601

main89540-20260iAT19#,CT190,ST191..JPP..LHD199211-199601

9011906512

main90119-06512

9017906070

main90179-06070

9038916020

main90389-16020

91611A0612

main91611-A0612

91611B0610

main91611-B0610

9161660616

main91616-60616

91651B0614

main91651-B0614

91651B0618

main91651-B0618

91651G0614

main91651-G0614

91651G0616

main91651-G0616

14 parts on this diagram · 1 diagram in section
