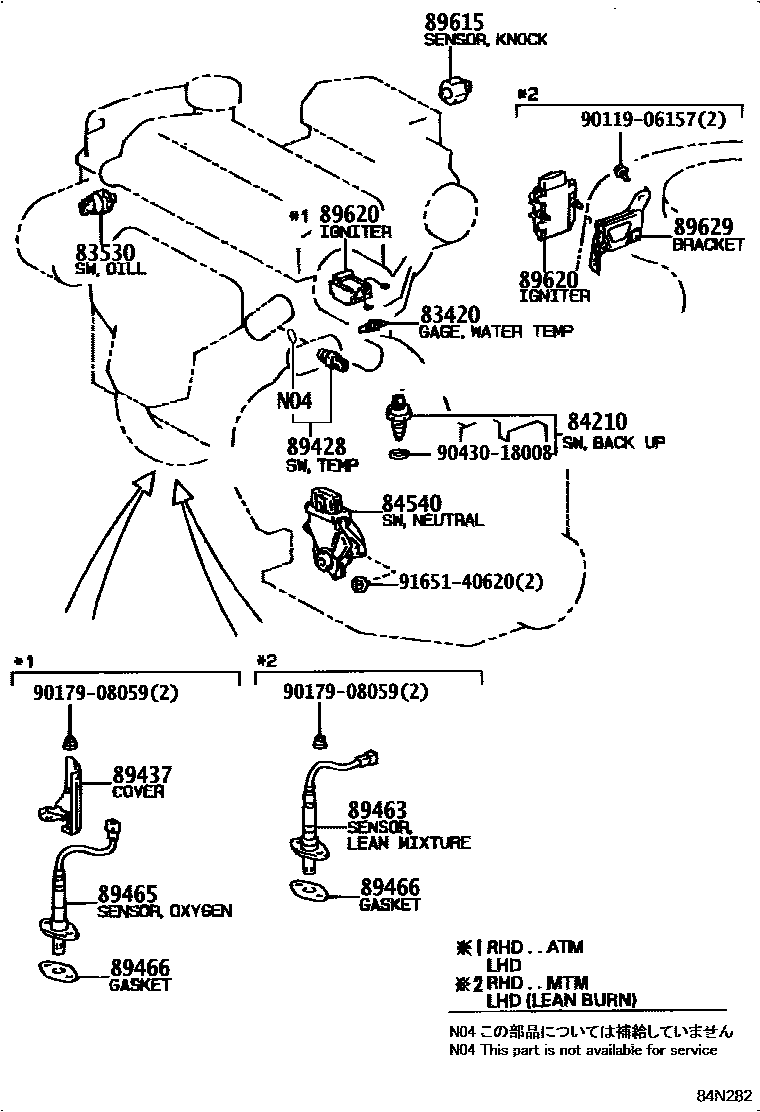

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1INSTRUMENT PANEL SWITCH 0007 1COWL 0008 1COWL 0009 1COMBINATION SWITCH 0010 1COMBINATION SWITCH 0011 1ROOF,DOOR,SEAT & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iST191..JPP199211-199601

TYPE B:REFER ILLUST.

main83420-20020iCT190..JPP199211-199601

main83420-20030iST191..JPP199211-199601

TYPE C:REFER ILLUST.

main83420-20040iAT19#..JPP199212-199601

NIPPONDENSO

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30090iAT19#..JPP199211-199601

NIPPONDENSO

sub83530-60020

main83530-30100iCT190..JPP199211-199601

sub83530-60010

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT19#,CT190,ST191..JPP..MTM199211-199601

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16040iST191..JPP..ATM199211-199601

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iAT19#..JPP199211-199601

AISIN

main89428-33010iCT190,ST191..JPP199211-199601

89437COVER, SENSOR

main89437-20050iST191..JPP199211-199403

89463SENSOR, LEAN MIXTURE

main89463-29045iAT190..JPP199211-199411

main89463-29055iAT19#..JPP199411-199601

89465SENSOR, OXYGEN

main89465-39435iST191..JPP199211-199601

89466GASKET, OXYGEN SENSOR

main89466-20020iAT19#,ST191..JPP199211-199601

89615SENSOR, KNOCK CONTROL

main89615-20030iST191..JPP199211-199601

TOYOTA

sub89615-32040

main89615-22030iAT191..JPP199411-199601

main89615-33020iST191..JPP199211-199601

NIPPONDENSO

sub89615-32030

89620IGNITER ASSY

main89621-12050iAT19#..JPP199211-199601

main89621-16020iST191..JPP199211-199601

sub89621-26010

89629BRACKET, IGNITER ASSY

main89629-20140iAT19#,ST191..JPP199211-199601

9011906157

main90119-06157

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

16 parts on this diagram · 11 diagrams in section
