METER

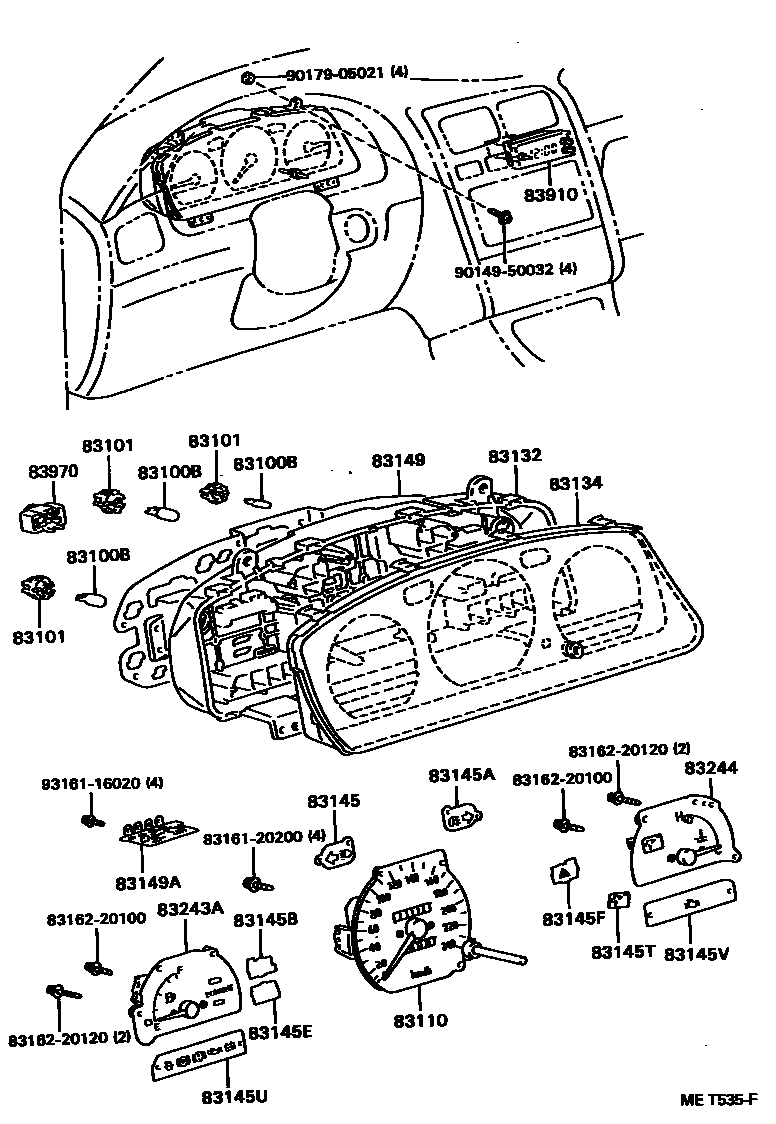

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83109-24030×4i199211-199601

12V3.4W W(GREEN CAP)

main90981-11018×9i199211-199601

12V 1.2W W/O SOCKET,W(TACHOMETER)

main99132-12034×3i199211-199601

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×12i199211-199601

HONG KONG SPEC,BULB:12V 1.4W

main83101-20040×3i199211-199601

BULB:12V 3.4W

main83101-20070×3i199211-199601

BULB:12V 3.4W,G.CAP

83110SPEEDOMETER ASSY

main83110-2D260i199211-199601

main83110-2D290i199211-199402

main83110-2D291i199402-199601

main83110-2D300i199211-199601

main83110-2D320i199211-199402

KM,W(TACHOMETER)

main83110-2D340i199211-199402

W(TACHOMETER)

main83110-2D350i199211-199402

KM,W(TACHOMETER)

main83110-2D600i199402-199601

KM,W(TACHOMETER)

main83110-2D610i199402-199601

W(TACHOMETER)

main83110-2D620i199402-199601

W(TACHOMETER)

main83110-2D640i199402-199601

HONG KONG SPEC

83132CASE, COMBINATION METER

main83132-20620i199211-199601

main83132-20660i199211-199402

W(TACHOMETER)

main83132-2D080i199402-199601

W(TACHOMETER)

main83132-2D100i199402-199601

W(TACHOMETER)

83134COVER, COMBINATION METER, NO.1

main83134-20180i199211-199601

main83134-20240i199211-199601

W(TACHOMETER)

main83134-20260i199211-199601

83145LENS, METER, NO.1

main83145-2D640i199311-199601

main83146-20520i199211-199311

83145ALENS, METER, NO.2

main83145-2D620i199311-199601

HONG KONG SPEC

main83145-2D720i199311-199601

main83146-20500i199211-199311

HONG KONG SPEC

main83146-20700i199211-199311

83145BLENS, METER, NO.3

main83145-2D700i199311-199601

main83146-20400i199211-199601

main83146-20680i199211-199311

83145ELENS, METER, NO.6

main83146-20420i199211-199601

83145FLENS, METER, NO.7

main83146-20360i199211-199601

83145TLENS, METER, NO.8

main83146-20460i199211-199601

83145ULENS, METER, NO.9

main83145-2A480i199311-199601

main83146-20320i199211-199311

83145VLENS, METER, NO.10

main83145-2A580i199311-199601

main83145-2A620i199311-199601

main83145-2A640i199311-199601

main83146-20340i199211-199311

main83146-20440i199211-199311

main83146-20480i199211-199311

83149PLATE, METER CIRCUIT

main83149-20160i199211-199601

main83149-20220i199211-199601

main83149-20240i199211-199601

main83149-20340i199211-199601

HONG KONG SPEC

main83149-20360i199211-199601

HONG KONG SPEC

main83149-20380i199411-199504

main83149-20420i199211-199601

W(TACHOMETER)

main83149-20460i199211-199601

main83149-20500i199211-199601

main83149-20520i199211-199601

main83149-20540i199211-199601

main83149-20560i199211-199601

W(TACHOMETER)

83149APLATE, METER CIRCUIT, NO.2

main83149-20200i199211-199601

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20620i199211-199601

main83243-20640i199211-199601

main83243-20700i199211-199402

HONG KONG SPEC

main83243-20720i199211-199402

main83243-20760i199211-199402

W(TACHOMETER)

main83243-20840i199211-199402

W(TACHOMETER)

main83243-2D100i199402-199601

W(TACHOMETER)

main83243-2D120i199402-199601

W(TACHOMETER)

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-20500i199211-199601

main83244-20540i199211-199601

83910CLOCK ASSY

main83910-20640i199211-199601

83970BUZZER ASSY, REVERSE WARNING

8316120200CASE, COMBINATION METER MIRROR, NO.1

main83161-20200

8316220100CASE, COMBINATION METER MIRROR, NO.2

main83162-20100

8316220120CASE, COMBINATION METER MIRROR, NO.2

main83162-20120

9014950032

main90149-50032

9017905021

main90179-05021

9316116020

main93161-16020

25 parts on this diagram · 5 diagrams in section
