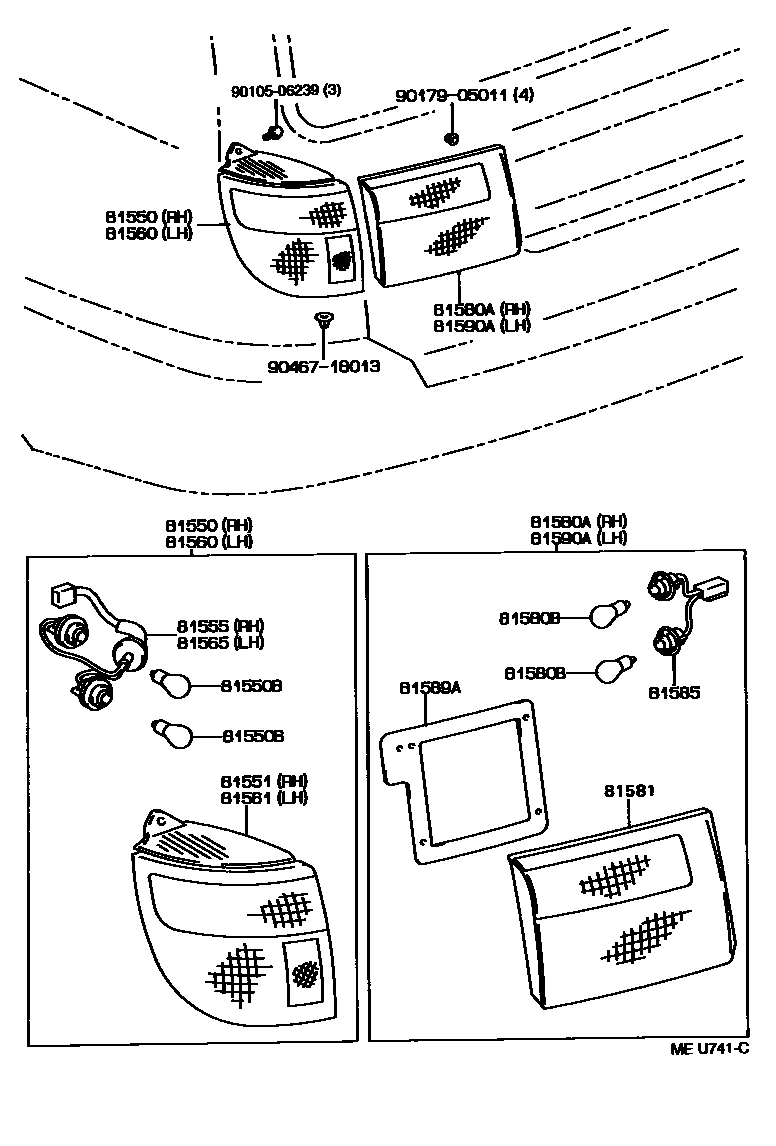

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-21150iAT190,CT190,ST191..JPP199211-199411

main81550-21151iAT19#,CT190,ST191..JPP199411-199601

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iAT19#,CT190,ST191..JPP199211-199601

12V 21W

main99132-21210×2iAT19#,CT190,ST191..JPP199211-199601

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-21150iAT190,CT190,ST191..JPP199211-199411

main81551-21151iAT19#,CT190,ST191..JPP199411-199601

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-21150iAT19#,CT190,ST191..JPP199211-199601

sub81555-21130

81560LAMP ASSY, REAR COMBINATION, LH

main81560-21150iAT190,CT190,ST191..JPP199211-199411

main81560-21151iAT19#,CT190,ST191..JPP199411-199601

81561LENS, REAR COMBINATION LAMP, LH

main81561-21150iAT190,CT190,ST191..JPP199211-199411

main81561-21151iAT19#,CT190,ST191..JPP199411-199601

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-21150iAT19#,CT190,ST191..JPP199211-199601

sub81555-21130

81580ALAMP ASSY, REAR

main81580-21010iAT19#,CT190,ST191..JPP..LHD199211-199601

HONG KONG SPEC

main81580-21020iAT19#,ST191..JPP..RHD199211-199601

81580BBULB (FOR REAR LAMP)

main99132-11210×2iAT19#,CT190,ST191..JPP..LHD199211-199601

12V 21W,HONK KONG SPEC

81581LENS, REAR LAMP

main81581-21010iAT19#,CT190,ST191..JPP..LHD199211-199601

RH

main81581-21020iAT19#,ST191..JPP..RHD199211-199601

RH

main81591-21010iAT19#,ST191..JPP..RHD199211-199601

LH

main81591-21020iAT19#,CT190,ST191..JPP..LHD199211-199601

LH

81585SOCKET & WIRE, REAR LAMP

main81585-21010iAT19#,CT190,ST191..JPP..LHD199211-199601

RH

main81585-21020iAT19#,CT190,ST191..JPP..LHD199211-199601

LH

81589AGASKET, REAR LAMP

main81589-21010×2iAT19#,ST191..JPP..RHD199211-199601

81590ALAMP ASSY, REAR, LH

main81590-21010iAT19#,ST191..JPP..RHD199211-199601

main81590-21020iAT19#,CT190,ST191..JPP..LHD199211-199601

9010506239

main90105-06239

9017905011

main90179-05011

9046718013

main90467-18013

16 parts on this diagram · 1 diagram in section
