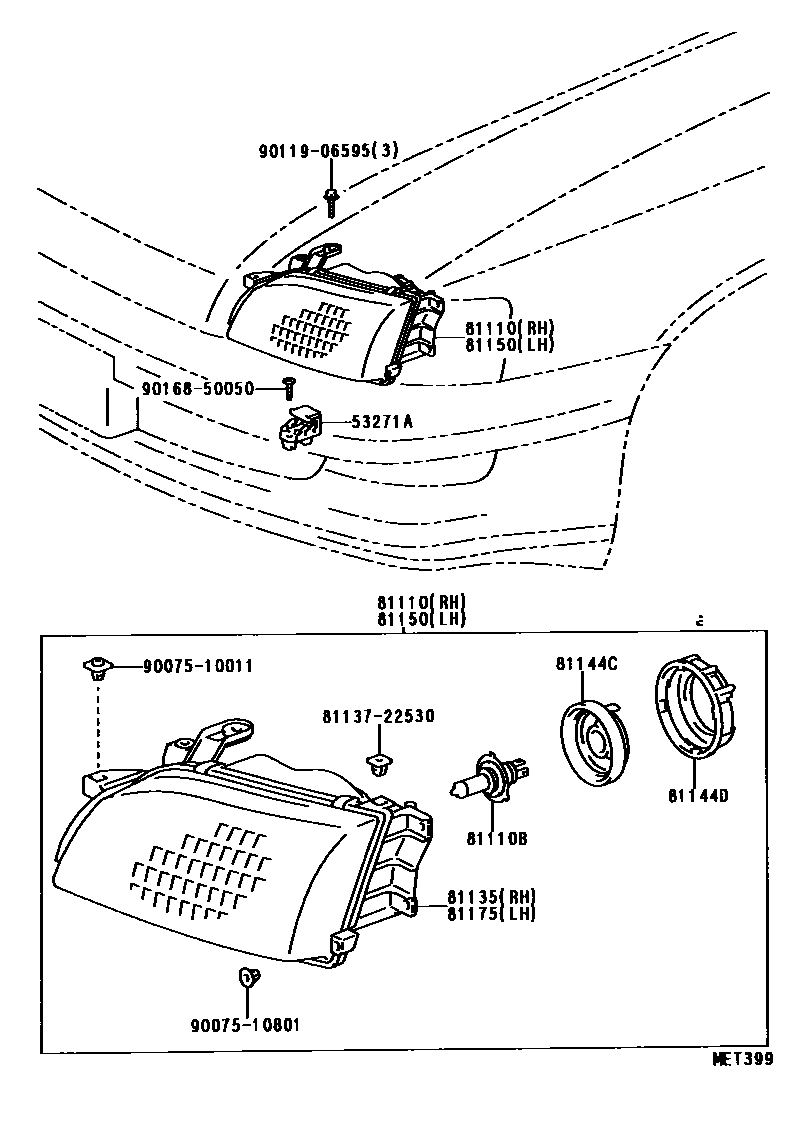

HEADLAMP

0001 1HONG KONG SPEC 0002 1KOITO 0003 1CARELLO

53271ABRACKET, HEADLAMP MOUNTING

main53271-12040iAT190,CT190,ST191..JPP199211-199404

sub53271-12060

main53271-12060iAT19#,CT190,ST191..JPP199404-199601

81110HEADLAMP ASSY, RH

main81110-2B650iAT190,CT190,ST191..JPP..LHD199211-199411

HONG KONG SPEC & LH TRAFFIC SPEC

sub81110-2B651

main81110-2B651iST191..JPP..RHD199411-199601

HONG KONG SPEC & LH TRAFFIC SPEC

main81110-2B660iAT190,CT190,ST191..JPP..LHD199211-199411

W(HEAD LAMP LEVELING)

sub81110-2B661

main81110-2B661iAT19#,CT190,ST191..JPP..LHD199411-199601

W(HEAD LAMP LEVELING)

main81110-2B670iST191..JPP..RHD199211-199411

HONG KONG SPEC

sub81110-2B671

main81110-2B671iST191..JPP..RHD199411-199601

HONG KONG SPEC

main81110-2B700iAT190,ST191..JPP..RHD199211-199411

sub81110-2B701

main81110-2B701iAT19#,ST191..JPP..RHD199411-199601

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iAT19#,CT190,ST191..JPP199211-199601

12V 60/55W,*HAL *WH

sub90981-13058

81135UNIT ASSY, HEADLAMP, RH

main81130-2B650iAT190,CT190,ST191..JPP..LHD199211-199601

WEST GERMANY SPEC

sub81130-2B651

main81130-2B650iAT190,CT190,ST191..JPP..LHD199211-199411

HONG KONG SPEC & LH TRAFFIC SPEC

sub81130-2B651

main81130-2B651iST191..JPP..RHD199411-199601

HONG KONG SPEC & LH TRAFFIC SPEC

main81130-2B660iAT190,CT190,ST191..JPP..LHD199211-199411

W(HEAD LAMP LEVELING)

sub81130-2B661

main81130-2B661iAT19#,CT190,ST191..JPP..LHD199411-199601

W(HEAD LAMP LEVELING)

main81130-2B670iST191..JPP..RHD199211-199411

HONG KONG SPEC

sub81130-2B671

main81130-2B671iST191..JPP..RHD199411-199601

HONG KONG SPEC

main81130-2B700iAT190,ST191..JPP..RHD199211-199411

sub81130-2B701

main81130-2B701iAT19#,ST191..JPP..RHD199411-199601

81144CCOVER, HEADLAMP SOCKET

main90075-99058iAT19#,CT190,ST191..JPP199211-199601

81144DCAP, HEADLAMP LOCKING

main90075-99057iAT19#,CT190,ST191..JPP199211-199601

81150HEADLAMP ASSY, LH

main81150-2B610iAT190,CT190,ST191..JPP..LHD199211-199411

HONG KONG SPEC & LH TRAFFIC SPEC

sub81150-2B611

main81150-2B611iAT19#,CT190,ST191..JPP..LHD199411-199601

W(HEAD LAMP LEVELING) & HONG KONG SPEC

main81150-2B620iAT190,CT190,ST191..JPP..LHD199211-199411

W(HEAD LAMP LEVELING)

sub81150-2B621

main81150-2B621iAT19#,CT190,ST191..JPP..LHD199411-199601

W(HEAD LAMP LEVELING)

main81150-2B630iST191..JPP..RHD199211-199411

HONG KONG SPEC

sub81150-2B631

main81150-2B631iST191..JPP..RHD199411-199601

HONG KONG SPEC

main81150-2B660iAT190,ST191..JPP..RHD199211-199411

sub81150-2B661

main81150-2B661iAT19#,ST191..JPP..RHD199408-199601

81175UNIT ASSY, HEADLAMP, LH

main81170-2B610iAT190,CT190,ST191..JPP..LHD199211-199601

WEST GERMANY SPEC

sub81170-2B611

main81170-2B610iAT190,CT190,ST191..JPP..LHD199211-199411

HONG KONG SPEC & LH TRAFFIC SPEC

sub81170-2B611

main81170-2B611iST191..JPP..RHD199411-199601

HONG KONG SPEC & LH TRAFFIC SPEC

main81170-2B620iAT190,CT190,ST191..JPP..LHD199211-199411

W(HEAD LAMP LEVELING)

sub81170-2B621

main81170-2B621iAT19#,CT190,ST191..JPP..LHD199411-199601

W(HEAD LAMP LEVELING)

main81170-2B630iST191..JPP..RHD199211-199411

HONG KONG SPEC

sub81170-2B631

main81170-2B631iST191..JPP..RHD199411-199601

HONG KONG SPEC

main81170-2B660iAT190,ST191..JPP..RHD199211-199411

sub81170-2B661

main81170-2B661iAT19#,ST191..JPP..RHD199411-199601

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007510011

main90075-10011

9007510801

main90075-10801

9011906595

main90119-06595

9016850050

main90168-50050

13 parts on this diagram · 3 diagrams in section
