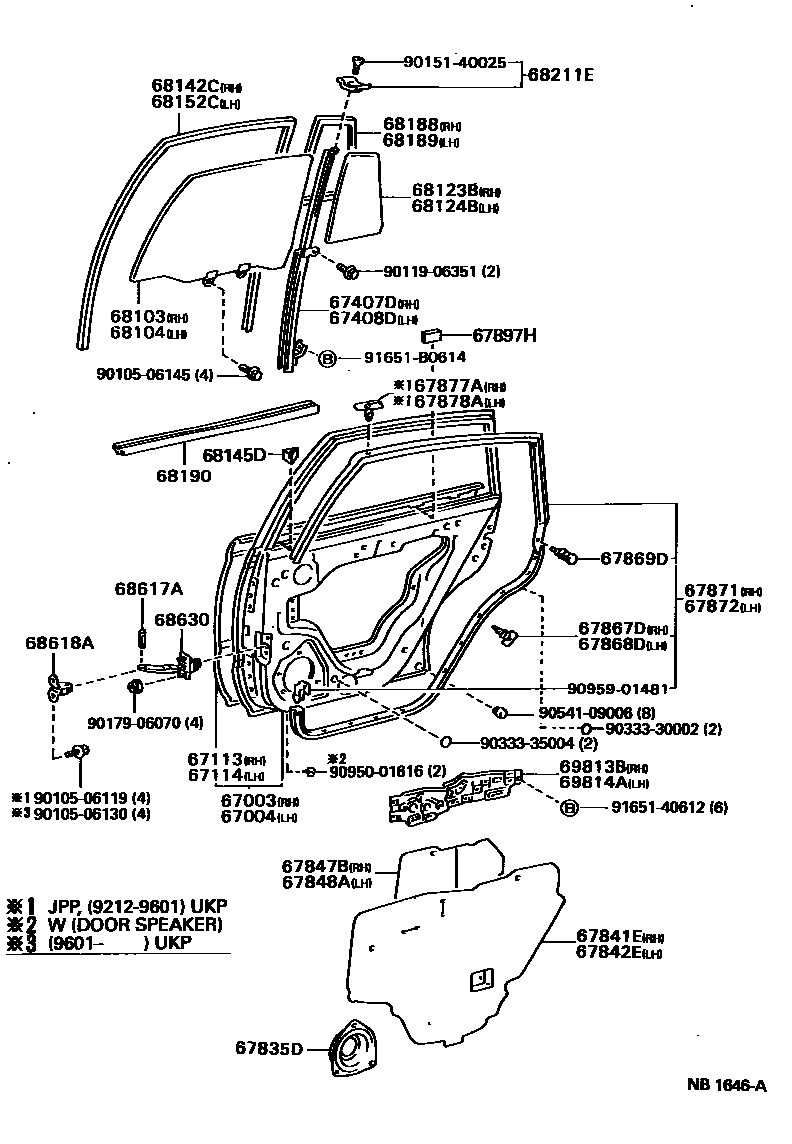

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67835DCOVER, REAR DOOR SERVICE HOLE, NO.3 RH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67877ARETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, RH
67878ARETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, LH
67897HCUSHION, REAR DOOR
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.5,BLUE
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.1,BLUE
68142CRUN, REAR DOOR GLASS, RH
68145DCUSHION, REAR DOOR WINDOW
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH
LH
68211ECLIP, DOOR GLASS WEATHERSTRIP
68617APIN, REAR DOOR CHECK
68618ABRACKET, REAR DOOR CHECK ARM, LH
9010506119
main90105-06119
9010506130
main90105-06130
9010506145
main90105-06145
9011906351
main90119-06351
9015140025
main90151-40025
9017906070
main90179-06070
9033330002
main90333-30002
9033335004
main90333-35004
9054109006
main90541-09006
9095001616
main90950-01616
9095901481
main90959-01481
9165140612
main91651-40612
91651B0614
main91651-B0614
48 parts on this diagram · 2 diagrams in section
