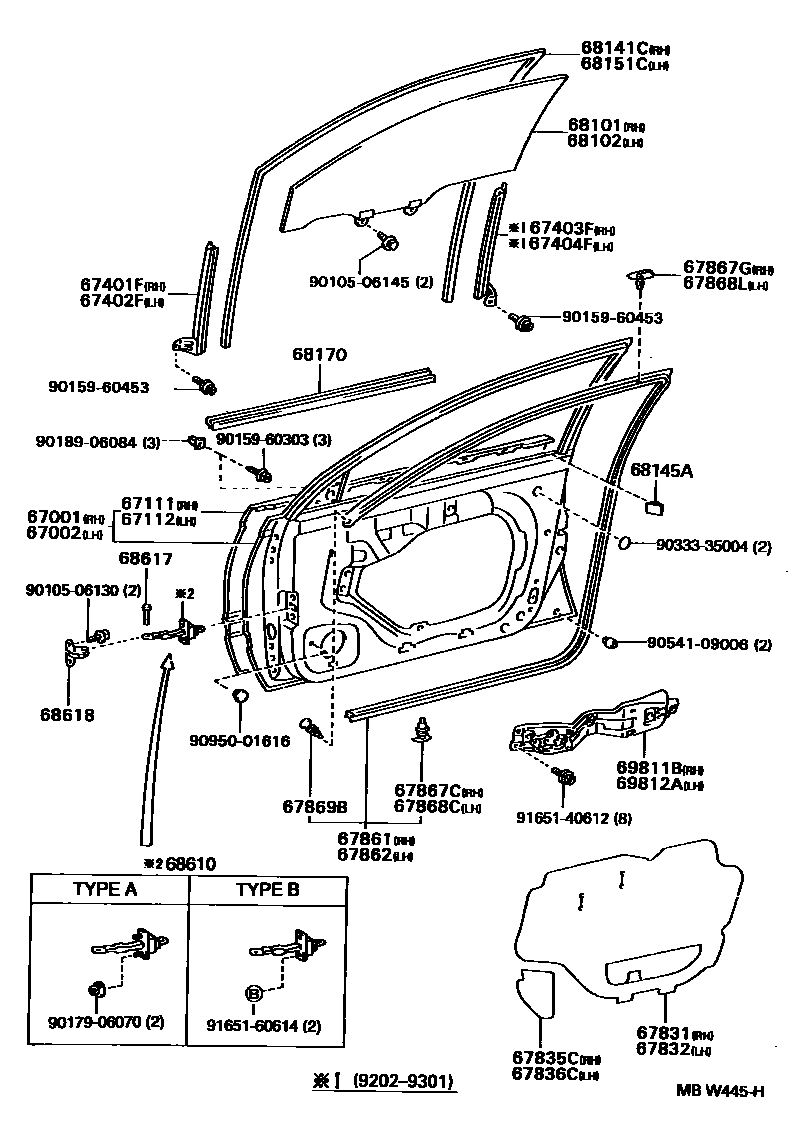

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH
67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=3.5,BLUE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=3.5,BLUE
68141CRUN, FRONT DOOR GLASS, RH
68145ACUSHION, FRONT DOOR WINDOW
68151CRUN, FRONT DOOR GLASS, LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68610CHECK ASSY, FRONT DOOR
TYPE B
68617PIN, FRONT DOOR CHECK
68618BRACKET, FRONT DOOR CHECK ARM, RH
69811BPLATE, FRONT DOOR WINDOW REGULATOR BASE, RH
sub69811-20100
69812APLATE, FRONT DOOR WINDOW REGULATOR BASE, RH
sub69812-20070
9010506130
main90105-06130
9010506145
main90105-06145
9015960303
main90159-60303
9015960453
main90159-60453
9017906070
main90179-06070
9018906084
main90189-06084
9033335004
main90333-35004
9054109006
main90541-09006
9095001616
main90950-01616
9165140612
main91651-40612
9165160614
main91651-60614
41 parts on this diagram · 3 diagrams in section
