DECK BOARD & DECK TRIM COVER
62533CBRACKET, DECK SIDE TRIM RH, FRONT
62534CBRACKET, DECK SIDE TRIM LH, FRONT
63709BBAND SUB-ASSY, ROOM RACK
64323ACLAMP, PACKAGE TRAY TRIM, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK. BLUE,TRIM8#
64324ACLAMP, PACKAGE TRAY TRIM, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK. BLUE,TRIM8#
64330DPANEL ASSY, PACKAGE TRAY TRIM
64429ABOX, LUGGAGE COMPARTMENT TRIM
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
64707CKNOB, JACK COVER
64707GSTOPPER, JACK COVER
64714CCOVER, DECK SIDE TRIM, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK. BLUE,TRIM8#
64715CCOVER, DECK SIDE TRIM, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK. BLUE,TRIM8#
64730BPANEL ASSY, DECK TRIM SIDE, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK. BLUE,TRIM8#
64730CBOARD, DECK TRIM SIDE, RH
64730ECLIP(FOR DECK TRIM SIDE BOARD)
BLACK,TRIM2#,8#,NO.1,PLANT.NO.A41
NO.1,PLANT.NO.C21-24
64735COVER, DECK TRIM SIDE SERVICE HOLE
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK. BLUE,TRIM8#
64740BBOARD, DECK TRIM SIDE, LH
64740CPANEL ASSY, DECK TRIM SIDE, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK. BLUE,TRIM8#
64748AHOOK, SIDE TRIM TOOL COVER, NO.1
64749GHOOK, SIDE TRIM TOOL COVER, NO.2
64770DCOVER ASSY, SPARE WHEEL
64777ACLAMP, SPARE WHEEL COVER
64786APLATE, JACK COVER
64910JCOVER ASSY, TONNEAU
64933ABRACKET, TONNEAU COVER HOLDER, RH
64934ABRACKET, TONNEAU COVER HOLDER, LH
64935HOLDER, TONNEAU COVER, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK. BLUE,TRIM8#
6777121020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-21020
6777189014WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89014
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104
9018305016
main90183-05016
9046710148
main90467-10148
9046710161
main90467-10161
9046711089
main90467-11089
9046804152
main90468-04152
9163140614
main91631-40614
9326955012
main93269-55012
9356054012
main93560-54012
9356614512
main93566-14512

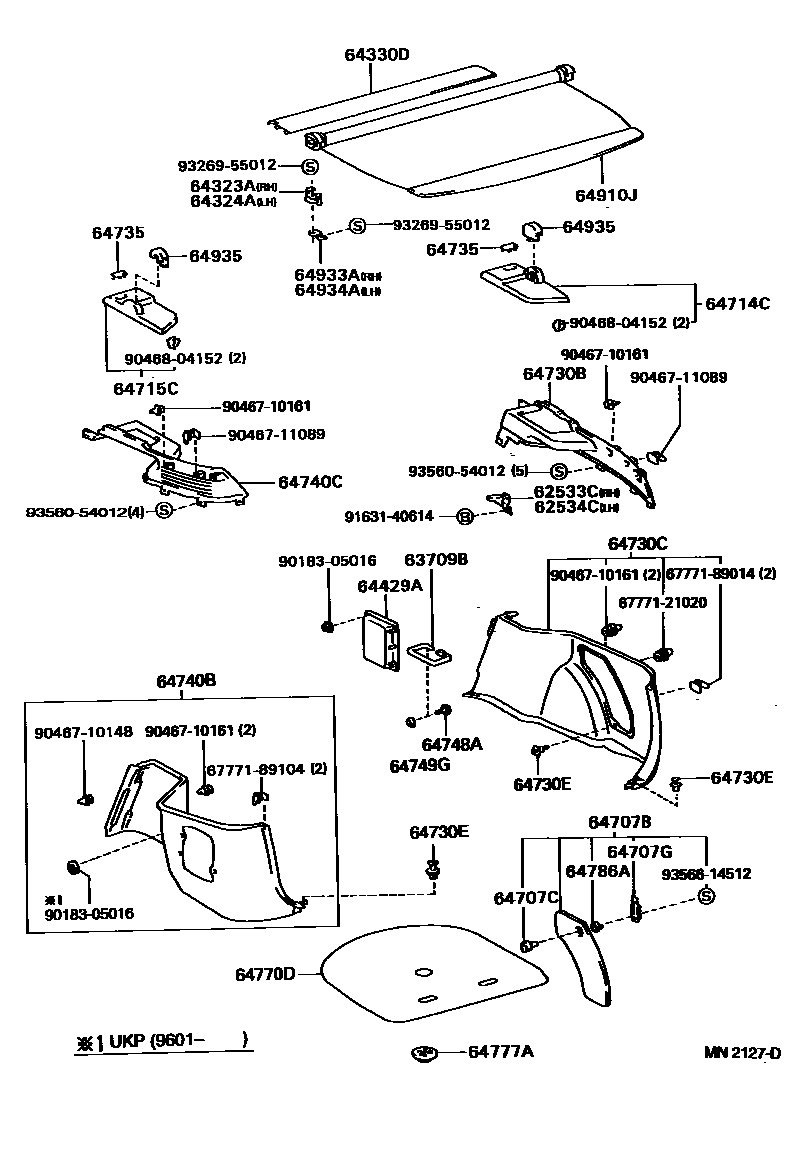

39 parts on this diagram · 1 diagram in section
