INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

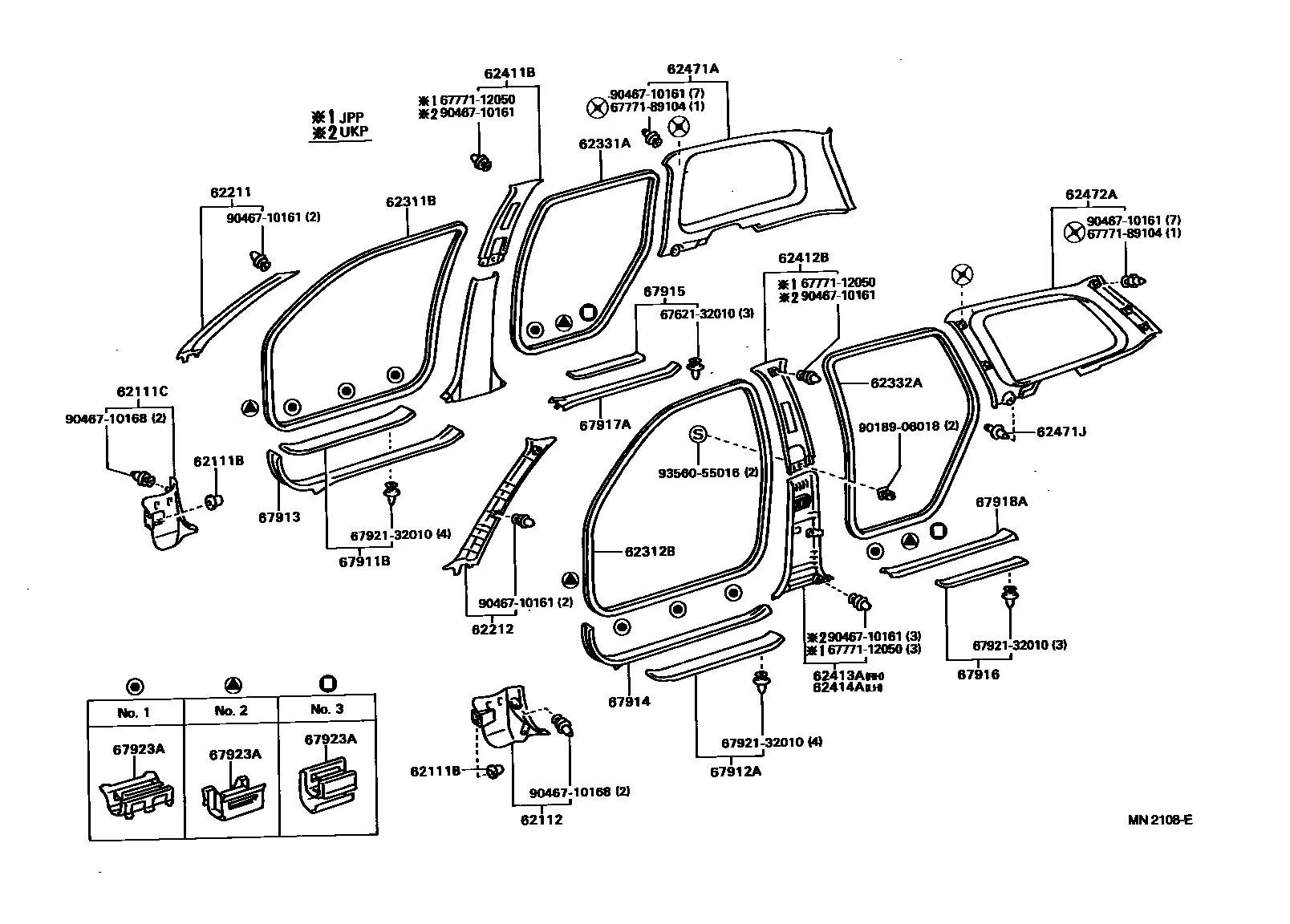

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06074i¥140199211-199601
PLANT.NO.C21-24
main90467-06094i¥130199211-199601
PLANT.NO.A41
62111CBOARD, COWL SIDE TRIM, RH
main62111-20260-B0i199402-199601
SHADOW GRAY,TRIM1#
sub62111-20260¥3,510
main62111-20260-C0i199211-199402
BLACK,TRIM2#
sub62111-20260¥3,510
main62111-20260-J0i199211-199601
DK.BLUE,TRIM8#
sub62111-20260¥3,510
62112BOARD, COWL SIDE TRIM, LH
main62112-20280-B0i199402-199601
SHADOW GRAY,TRIM1#
sub62112-20290¥3,510
sub62112-20280¥3,510
main62112-20280-C0i199211-199402
BLACK,TRIM2#
sub62112-20290¥3,510
sub62112-20280¥3,510
main62112-20280-J0i199211-199601
DK.BLUE,TRIM8#
sub62112-20290¥3,510
sub62112-20280¥3,510
62211GARNISH, FRONT PILLAR, RH
main62211-20230-B1i199211-199402
GRAY,TRIM2#,8#
sub62211-20230¥5,500
main62211-20230-B1i199402-199601
GRAY,TRIM1#,8#
sub62211-20230¥5,500
62212GARNISH, FRONT PILLAR, LH
main62212-20230-B1i199211-199402
GRAY,TRIM2#,8#
sub62212-20230¥5,500
main62212-20230-B1i199402-199601
GRAY,TRIM1#,8#
sub62212-20230¥5,500
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-20120-C0i199211-199402
BLACK,TRIM2#,8#
sub62311-20100¥10,900
main62311-20120-C0i199402-199601
BLACK,TRIM1#,8#
sub62311-20100¥10,900
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-20120-C0i199211-199402
BLACK,TRIM2#,8#
sub62312-20100¥10,900
main62312-20120-C0i199402-199601
BLACK,TRIM1#,8#
sub62312-20100¥10,900
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-21030-C0i199211-199402
BLACK,TRIM2#,8#
sub62331-21031¥10,900
main62331-21030-C0i199402-199601
BLACK,TRIM1#,8#
sub62331-21031¥10,900
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-21030-C0i199211-199402
BLACK,TRIM2#,8#
sub62332-21031¥10,900
main62332-21030-C0i199402-199601
BLACK,TRIM1#,8#
sub62332-21031¥10,900
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-20290-B1i199211-199402
GRAY,TRIM2#,8#
sub62411-20290¥4,300
main62411-20290-B1i199402-199601
GRAY,TRIM1#,8#
sub62411-20290¥4,300
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-20290-B1i199211-199402
GRAY,TRIM2#,8#
main62412-20290-B1i199402-199601
GRAY,TRIM1#,8#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-20160-B0i199411-199601
SHADOW GRAY,TRIM1#
sub62413-20230¥5,100
main62413-20160-J0i199411-199601
DK.BLUE,TRIM8#
sub62413-20230¥5,100
main62413-20170-B0i199402-199411
SHADOW GRAY,TRIM1#
sub62413-20160¥5,100
main62413-20170-C0i199211-199402
BLACK,TRIM2#
sub62413-20160¥5,100
main62413-20170-J0i199211-199411
DK.BLUE,TRIM8#
sub62413-20160¥5,100
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-20140-B0i199402-199411
SHADOW GRAY,TRIM1#
sub62414-20170¥5,100
main62414-20140-C0i199211-199402
BLACK,TRIM2#
sub62414-20170¥5,100
main62414-20140-J0i199211-199411
DK.BLUE,TRIM8#
sub62414-20170¥5,100
main62414-20170-B0i199411-199601
SHADOW GRAY,TRIM1#
sub62414-20210¥5,100
main62414-20170-J0i199411-199601
DK.BLUE,TRIM8#
sub62414-20210¥5,100
62471AGARNISH, ROOF SIDE, INNER RH
main62471-21010-B0i199402-199601
GRAY,TRIM1#,8#
main62471-21010-B0i199211-199402
GRAY,TRIM2#,8#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-07041-C0i199211-199310
BLACK,TRIM2#,8#
sub90467-07041¥140
62472AGARNISH, ROOF SIDE, INNER LH
main62472-21010-B0i199211-199402
GRAY,TRIM2#,8#
main62472-21010-B0i199402-199601
GRAY,TRIM1#,8#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-20040-C0i199211-199402
BLACK,TRIM2#,8#
sub67911-20040¥2,190
main67911-20040-C0i199402-199601
BLACK,TRIM1#,8#
sub67911-20040¥2,190
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-20040-C0i199402-199601
BLACK,TRIM1#,8#
sub67912-20040¥2,190
main67912-20040-C0i199211-199402
BLACK,TRIM2#,8#
sub67912-20040¥2,190
67913PLATE, FRONT DOOR SCUFF, RH
main67913-20190-B0i199402-199601
SHADOW GRAY,TRIM1#
sub67913-20191¥2,190
sub67913-20190¥2,190
main67913-20190-C0i199211-199402
BLACK,TRIM2#
sub67913-20191¥2,190
sub67913-20190¥2,190
main67913-20190-J0i199211-199601
DK.BLUE,TRIM8#
sub67913-20191¥2,190
sub67913-20190¥2,190
67914PLATE, FRONT DOOR SCUFF, LH
main67914-20150-B0i199402-199601
SHADOW GRAY,TRIM1#
sub67914-20150¥2,190
main67914-20150-C0i199211-199402
BLACK,TRIM2#
sub67914-20150¥2,190
main67914-20150-J0i199211-199402
DK.BLUE,TRIM2#
sub67914-20150¥2,190
main67914-20150-J0i199402-199601
DK.BLUE,TRIM8#
sub67914-20150¥2,190
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-20030-C0i199211-199402
BLACK,TRIM2#,8#
sub67915-20030¥2,190
main67915-20030-C0i199402-199601
BLACK,TRIM1#,8#
sub67915-20030¥2,190
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-20030-C0i199211-199402
BLACK,TRIM2#,8#
main67916-20030-C0i199402-199601
BLACK,TRIM1#,8#
67917APLATE, REAR DOOR SCUFF, RH
main67917-20170-B0i199402-199601
SHADOW GRAY,TRIM1#
sub67917-20170¥2,190
main67917-20170-C0i199211-199402
BLACK,TRIM2#
sub67917-20170¥2,190
main67917-20170-J0i199211-199601
DK.BLUE,TRIM8#
sub67917-20170¥2,190
67918APLATE, REAR DOOR SCUFF, LH
main67918-20130-B0i199402-199601
SHADOW GRAY,TRIM1#
sub67918-20130¥2,190
main67918-20130-C0i199211-199402
BLACK,TRIM2#
sub67918-20130¥2,190
main67918-20130-J0i199211-199601
DK.BLUE,TRIM8#
sub67918-20130¥2,190
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-20030i¥240199308-199507
N0.1
main67923-20030i¥240199211-199308
NO.1
main67923-20050i¥210199507-199601
NO.1
main67924-20030i¥250199211-199308
NO.2
main67924-20030i¥250199308-199601
N0.2
main67924-20040i¥270199211-199601
NO.3
6762132010PROTECTOR, FRONT DOOR TRIM, RH
main67621-32010
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050¥160
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104¥160
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010¥160
9018906018
main90189-06018¥80
9046710161
main90467-10161¥90
9046710168
main90467-10168¥160
9356055016
main93560-55016¥70

33 parts on this diagram · 1 diagram in section
