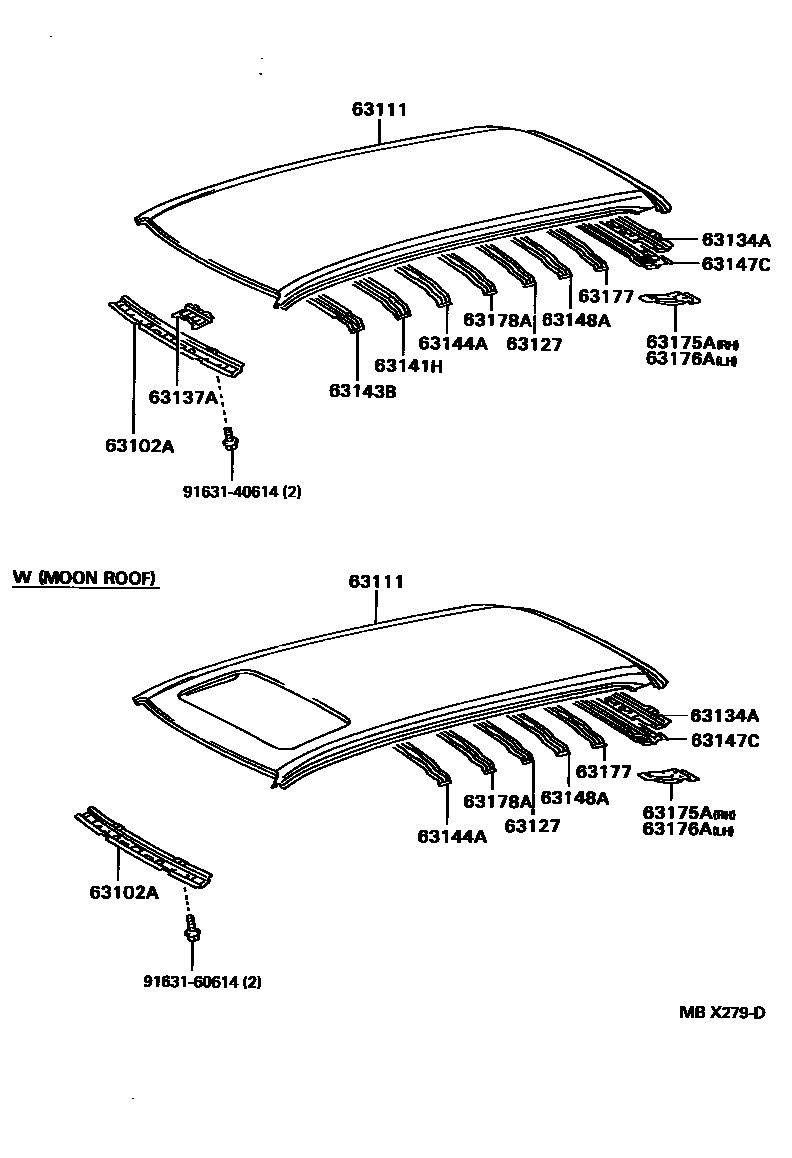

ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(MOON ROOF)
63111PANEL, ROOF
W(MOON ROOF & EQUIPPED ROOF PANEL)
W(MOON ROOF)
W(EQUIPPED ROOF PANEL)
63127REINFORCEMENT, ROOF PANEL, NO.5
63134AFRAME, BACK DOOR OPENING, UPPER
63137ABRACKET, DOME LAMP, NO.1
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63147CREINFORCEMENT, BACK DOOR OPENING FRAME, UPPER CENTER
63148AREINFORCEMENT, ROOF PANEL, NO.7
63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH
63177REINFORCEMENT, ROOF PANEL, NO.9
63178AREINFORCEMENT, ROOF PANEL, NO.10
9163140614
main91631-40614
9163160614
main91631-60614
16 parts on this diagram · 3 diagrams in section
