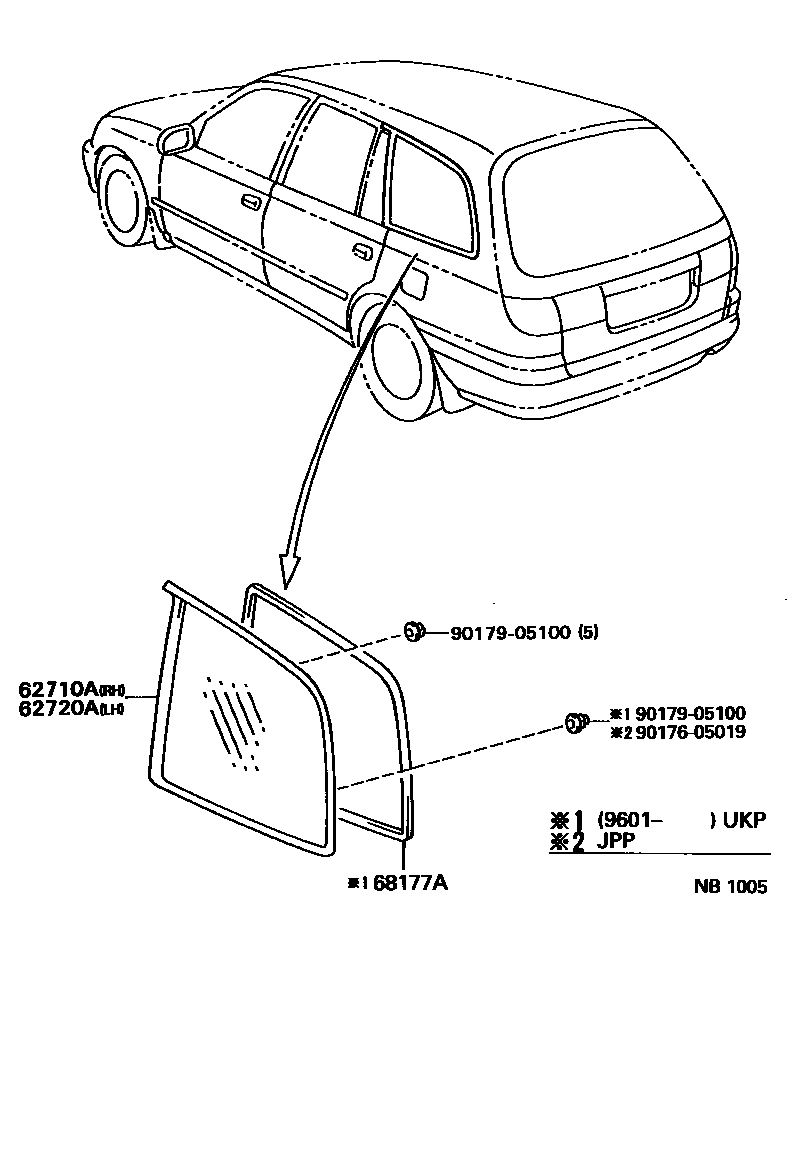

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-21030iAT19#,CT190,ST191..JPP199211-199601

*TT,T=3.5

sub62710-21070

62720AWINDOW ASSY, QUARTER, LH

main62720-21030iAT19#,CT190,ST191..JPP199211-199601

*TT,T=3.5

sub62720-21090

68177ASEAL, QUARTER WINDOW NO.2 GLASS, NO.1

9017605019

main90176-05019

9017905100

main90179-05100

5 parts on this diagram · 1 diagram in section
