SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
55714CPANEL, COWL TOP SIDE, LH
55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH
55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH
57421BPLATE, FLOOR SIDE RAIL, RH
57422APLATE, FLOOR SIDE RAIL, LH
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
58791ACARRIER, JACK
58792BSUPPORT, JACK CARRIER
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
W(ANTENNA HOLE)
W/O(ANTENNA HOLE)
61132PILLAR, FRONT BODY, UPPER OUTER LH
W(ANTENNA HOLE)
W/O(ANTENNA HOLE)
61211RAIL, ROOF SIDE, OUTER RH
61211BRAIL, ROOF SIDE, OUTER REAR RH
61212RAIL, ROOF SIDE, OUTER LH
61212BRAIL, ROOF SIDE, OUTER REAR LH
61265ACHANNEL, ROOF DRIP SIDE, CENTER RH
61266ACHANNEL, ROOF DRIP SIDE, CENTER LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61611PANEL, QUARTER, RH
sub61601-21150
61612PANEL, QUARTER, LH
sub61602-21140
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61653BBRACKET, DECK SIDE TRIM
61654ABRACKET, DECK SIDE TRIM, NO.2
61679BSEAL, QUARTER WHEEL HOUSE
61713BREINFORCE, ROOF SIDE, OUTER RH
61714BREINFORCE, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61775AGUIDE, ROOF SIDE DRAIN HOSE, NO.1 RH
61776BGUIDE, ROOF SIDE DRAIN HOSE, NO.1 LH
61824PLATE, NOISE CONTROL, NO.1
61838BPLATE, NOISE CONTROL, NO.5
62151BPAD, COWL SIDE SILENCER
63344PAD, ROOF SILENCER, NO.4
5744295700PLUG, STEP PANEL HOLE
main57442-95700
6624320010PLATE, REAR FENDER SET
main66243-20010
9095001181
main90950-01181
9095001326
main90950-01326
9095001392
main90950-01392
9095001409
main90950-01409
9095001824
main90950-01824
9095001864
main90950-01864
9095001871
main90950-01871
9163140612
main91631-40612
9165160816
main91651-60816

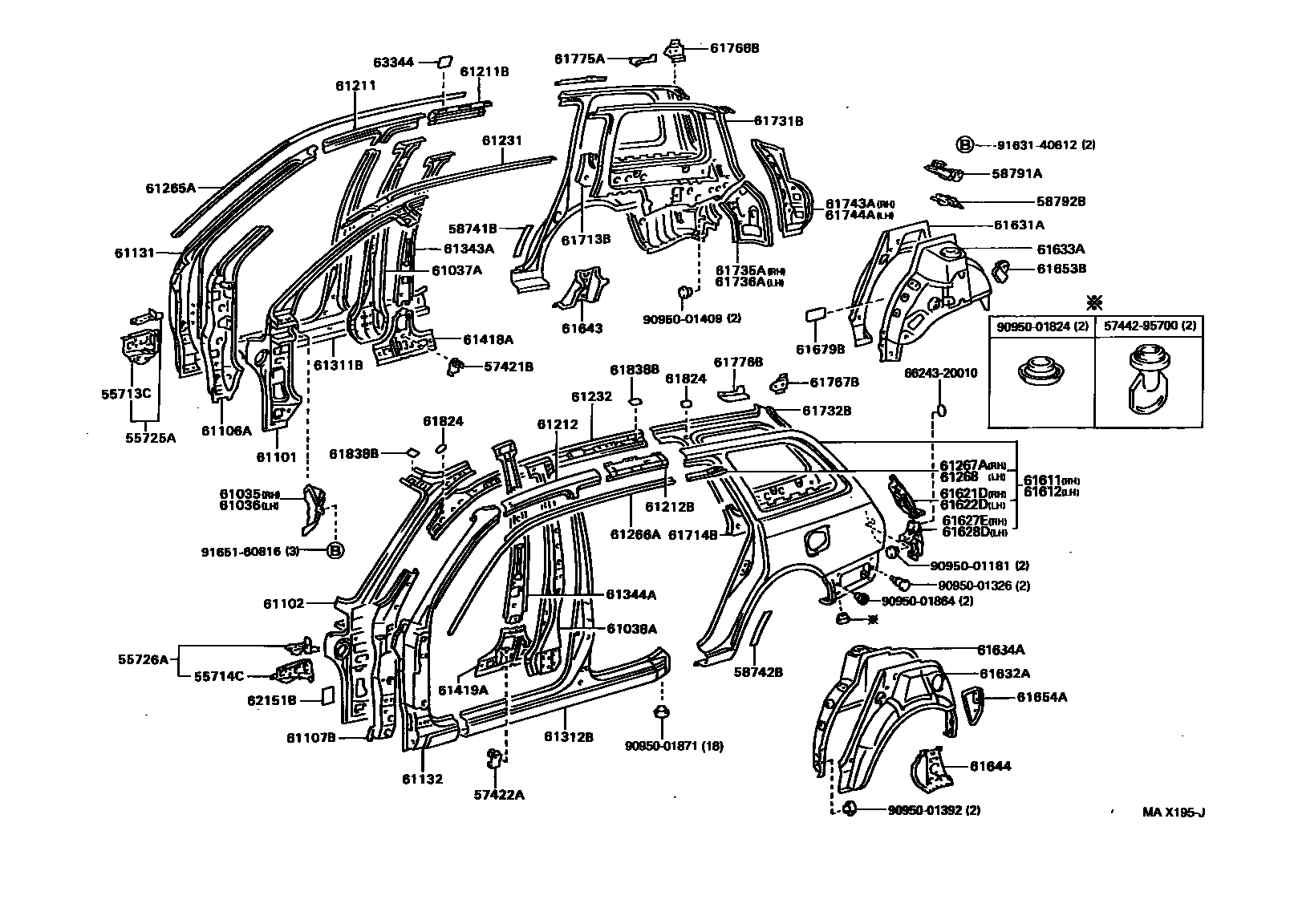

78 parts on this diagram · 1 diagram in section
