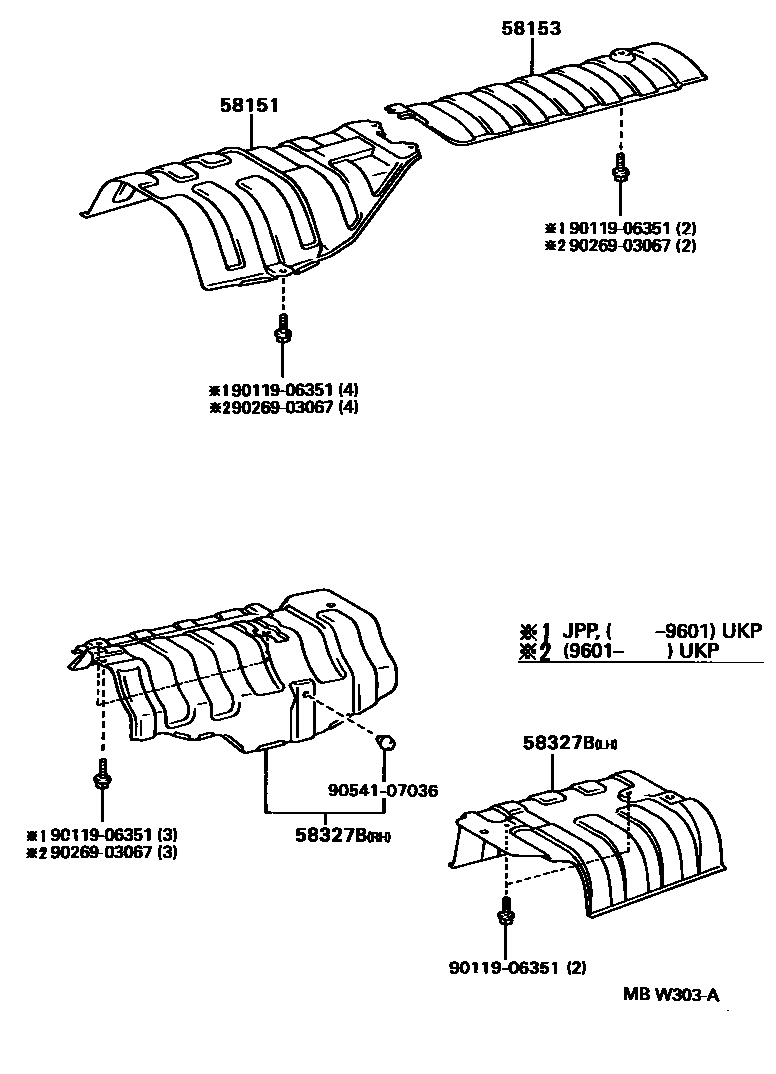

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-20080iAT190,ST191..JPP¥3,410199211-199311

sub58151-20081¥3,420

main58151-20081iAT19#,ST191..JPP¥3,420199311-199601

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20100iAT19#,ST191..JPP¥2,520199211-199601

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-20080iAT19#,CT190,ST191..JPP¥4,210199211-199601

9011906351

main90119-06351¥100

9026903067

main90269-03067¥60

9054107036

main90541-07036¥110

6 parts on this diagram · 1 diagram in section
