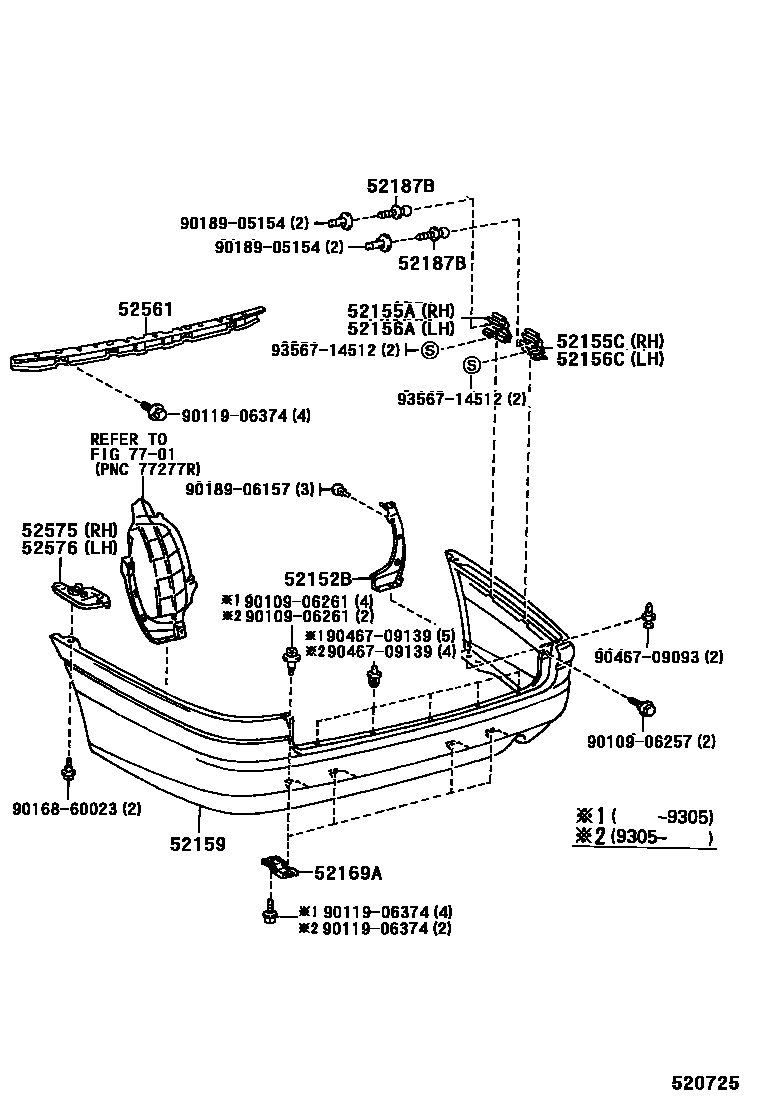

REAR BUMPER & BUMPER STAY

52152BEXTENSION, REAR BUMPER, RH

main52152-20180iAT19#,CT190,ST191..JPP¥2,730199211-199601

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-21010iAT19#,CT190,ST191..JPP¥630199211-199601

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-21020iAT19#,CT190,ST191..JPP¥630199211-199601

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-21010iAT19#,CT190,ST191..JPP¥630199211-199601

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-21020iAT19#,CT190,ST191..JPP¥630199211-199601

52159COVER, REAR BUMPER

main52159-21020iAT19#,CT190,ST191..JPP¥35,900199211-199601

52169ASUPPORT, REAR BUMPER SIDE, NO.3

main52169-21020iAT190,CT190,ST191..JPP¥400199211-199601

52187BGUIDE, REAR BUMPER LOCATION

main52187-12140iAT19#,CT190,ST191..JPP¥460199211-199601

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-21020iAT19#,CT190,ST191..JPP¥4,150199211-199601

52575RETAINER, REAR BUMPER SIDE, RH

main52575-20030iAT19#,CT190,ST191..JPP¥910199211-199601

52576RETAINER, REAR BUMPER SIDE, LH

main52576-20030iAT19#,CT190,ST191..JPP¥910199211-199601

7701

9010906257

main90109-06257¥120

9010906261

main90109-06261¥60

9011906374

main90119-06374¥120

9016860023

main90168-60023¥120

9018905154

main90189-05154¥130

9018906157

main90189-06157¥80

9046709093

main90467-09093¥190

9046709139

main90467-09139¥240

9356714512

main93567-14512¥70

21 parts on this diagram · 1 diagram in section
