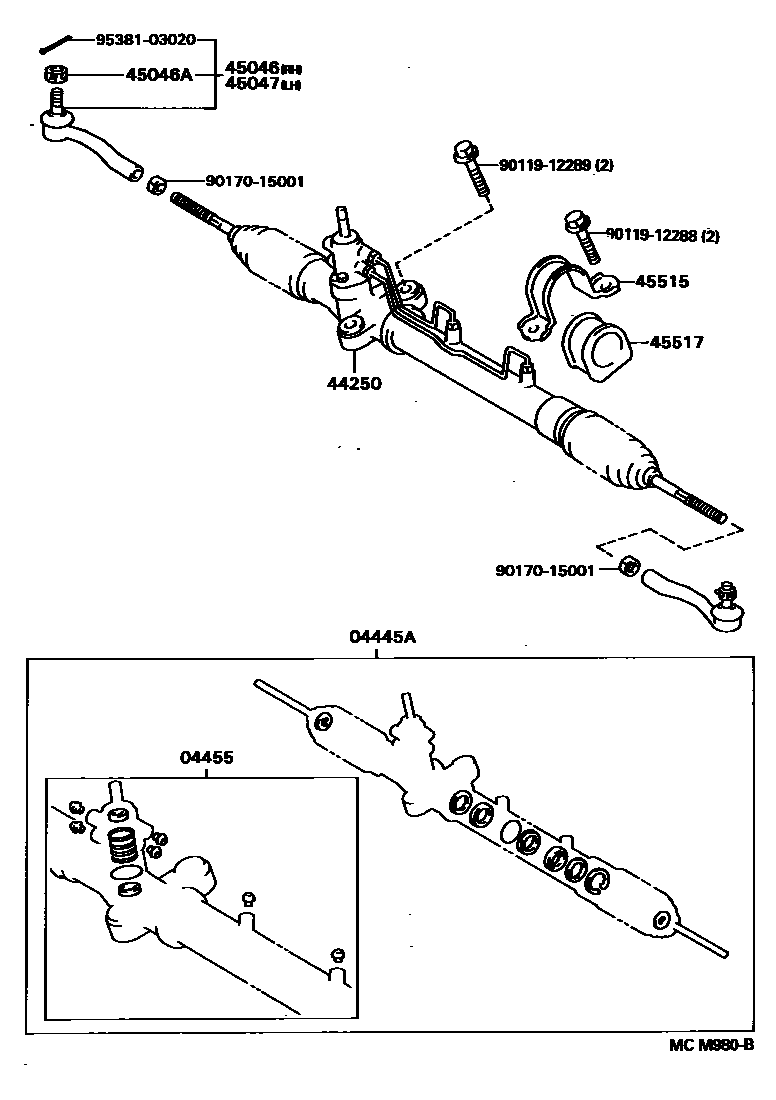

FRONT STEERING GEAR & LINK

0001 1POWER STEERING:TOYODA KOKI 0002 1POWER STEERING:TOYODA KOKI 0003 1POWER STEERING:TOYODA KOKI 0004 1POWER STEERING:TOYODA KOKI 0005 1MANUAL STEERING

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20160iAT190,CT190,ST191..JPP199211-199411

sub04445-20161

main04445-20161iAT19#,CT190,ST191..JPP199411-199601

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20120iAT19#,CT190,ST191..JPP199211-199601

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20390iAT190,ST191..JPP..RHD199211-199402

main44250-20391iAT19#,ST191..JPP..RHD199402-199601

sub44250-20392

main44250-20580iAT190,CT190,ST191..JPP..LHD199211-199402

main44250-20581iAT19#,CT190,ST191..JPP..LHD199402-199601

sub44250-20583

45046END SUB-ASSY, TIE ROD, RH

main45046-29275iAT19#,CT190,ST191..JPP199211-199511

sub45046-29335

main45046-29335iAT19#,CT190,ST191..JPP199511-199601

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAT19#,CT190,ST191..JPP199211-199601

45047END SUB-ASSY, TIE ROD, LH

main45047-29075iAT19#,CT190,ST191..JPP199211-199511

sub45047-29105

main45047-29105iAT19#,CT190,ST191..JPP199511-199601

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iAT190..JPP..LHD..XL199211-199501

main45515-20160iAT19#,ST191..JPP..RHD199211-199601

main45515-20170iCT190..JPP199211-199601

main45515-20210iAT190..JPP..LHD..XL199211-199501

W(POWER STEERING)

main45515-20210iAT19#,ST191..JPP..LHD199501-199601

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20150iAT19#,ST191..JPP..RHD199211-199601

sub45517-20250

main45517-20170iAT190..JPP..LHD..XL199211-199501

main45517-20180iAT190..JPP..LHD..XL199211-199501

W(POWER STEERING)

main45517-20180iAT19#,CT190,ST191..JPP..LHD199501-199601

9011912288

main90119-12288

9011912289

main90119-12289

9017015001

main90170-15001

9538103020

main95381-03020

12 parts on this diagram · 5 diagrams in section
