FRONT AXLE HUB

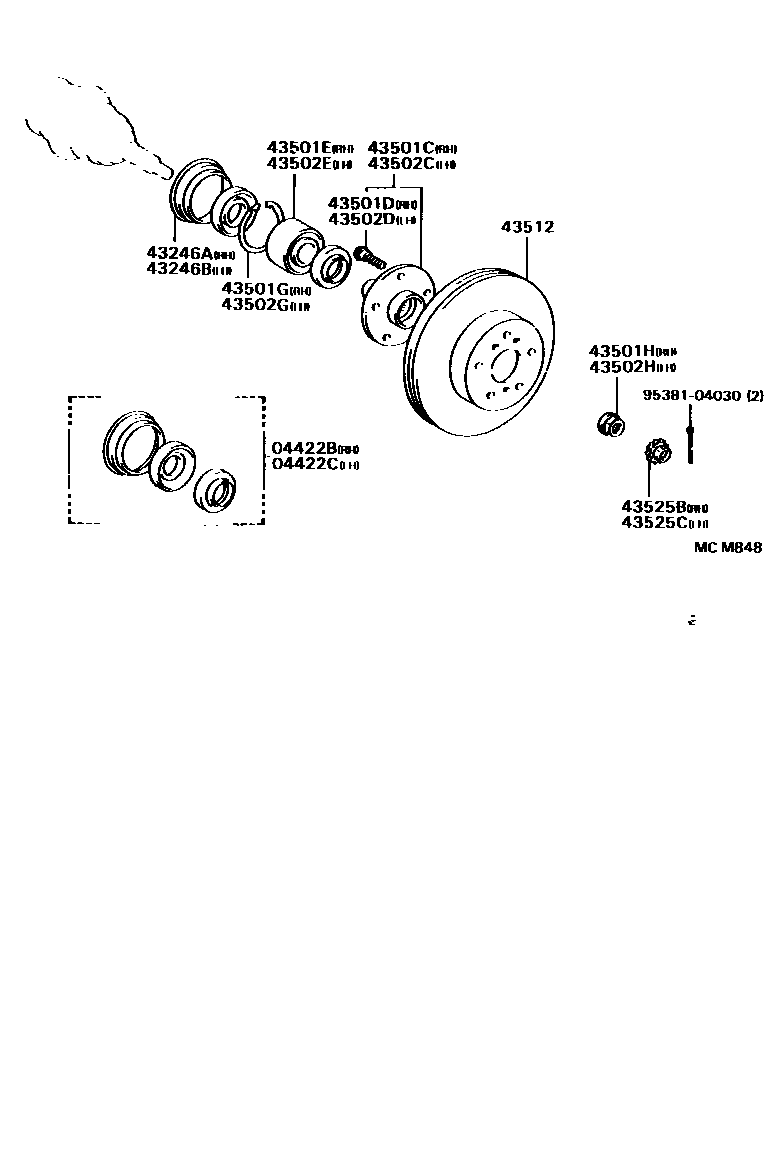

Parts diagram
04422BSEAL KIT, FRONT AXLE OIL, RH
main04422-12060i199211-199601
main04422-20080i199211-199601
W(*66)
main04422-20080i199402-199501
W(*66 & POWER STEERING)
04422CSEAL KIT,FRONT AXLE OIL, LH
main04422-12060i199211-199601
main04422-20080i199211-199601
W(*66)
main04422-20080i199402-199501
W(*66 & POWER STEERING)
43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
main43246-12020i199211-199601
W(*66)
main43246-12020i199402-199501
W(*66 & POWER STEERING)
main43246-12040i199211-199601
43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
main43246-12020i199211-199601
W(*66)
main43246-12020i199402-199501
W(*66 & POWER STEERING)
main43246-12040i199211-199601
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-20131i199211-199601
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049i199211-199601
43501EBEARING (FOR FRONT AXLE HUB RH)
main90369-38003i199211-199601
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-79002i199211-199601
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90179-22020i199211-199601
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-20131i199211-199601
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049i199211-199601
43502EBEARING (FOR FRONT AXLE HUB LH)
main90369-38003i199211-199601
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-79002i199211-199601
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90179-22020i199211-199601
43512DISC, FRONT
main43512-20470i199211-199601
sub43512-21010
main43512-20500i199211-199601
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main43525-20030i199211-199601
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-20030i199211-199601
9538104030
main95381-04030

18 parts on this diagram · 1 diagram in section
