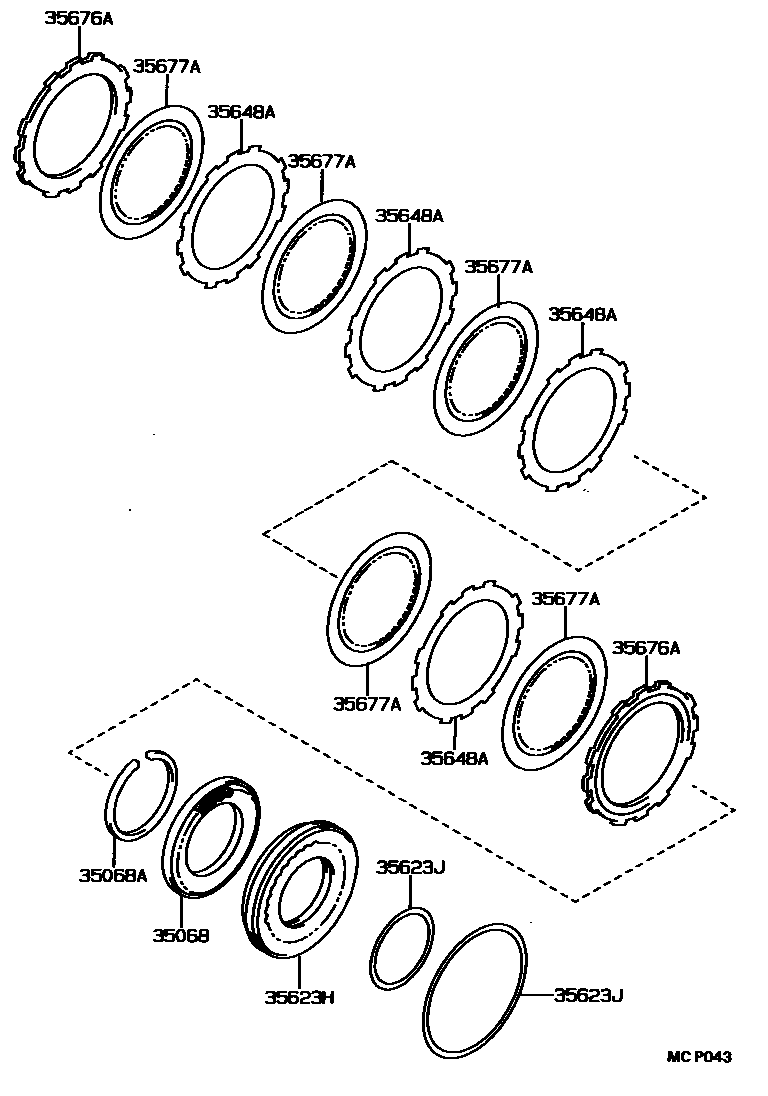

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iST191..JPP..ATM199211-199601

sub35068-20010

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iST191..JPP..ATM199211-199601

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12050iST191..JPP..ATM199308-199601

main35623-20010iST191..JPP..ATM199211-199308

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iST191..JPP..ATM199211-199601

INNER

main90301-99022iST191..JPP..ATM199211-199601

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iST191..JPP..ATM199211-199601

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iST191..JPP..ATM199211-199601

T=3.5

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12040iST191..JPP..ATM199211-199311

sub35677-12060

main35677-12060iST191..JPP..ATM199311-199601

7 parts on this diagram · 1 diagram in section
