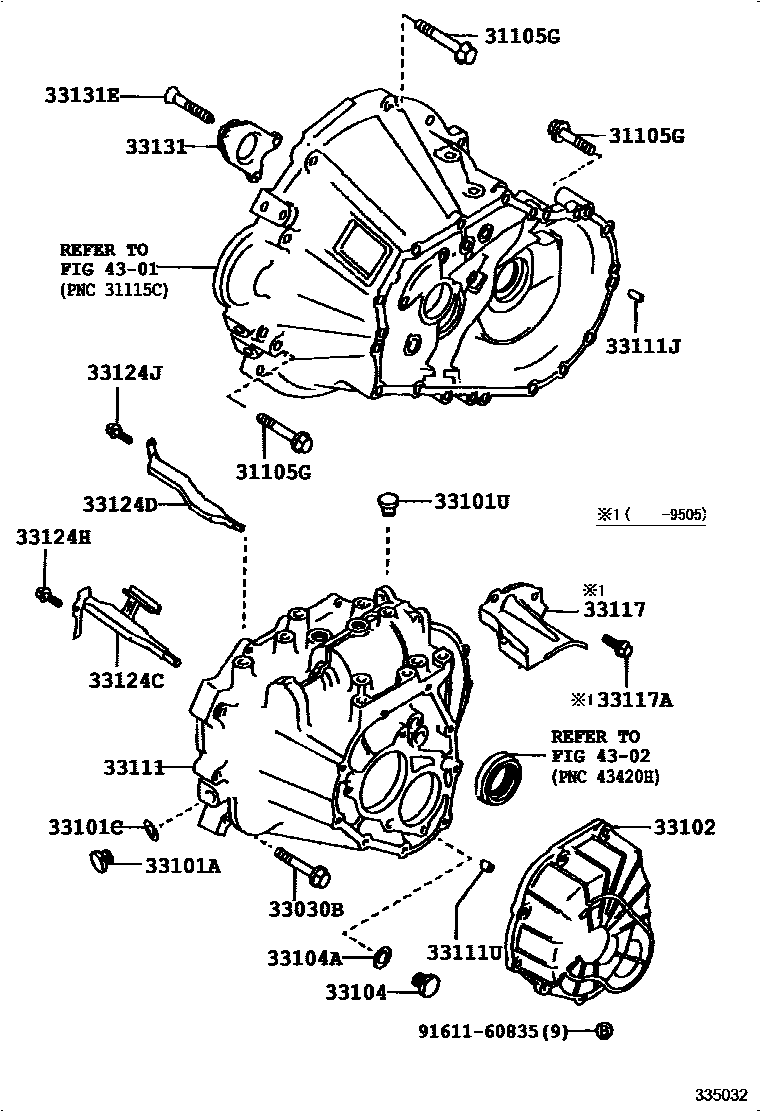

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C51,C52,C57 0002 1S50,S54

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT190,ST191..JPP..MTM¥180199211-199601

*8-1.25PX18-15

sub91641-H0820¥90

main90105-10077iAT19#,CT190,ST191..JPP..MTM¥260199211-199601

*10-1.25PX43-26

main90119-12042iAT19#..JPP¥260199211-199601

*12-1.25PX75-30

main90119-12168iCT190,ST191..JPP..MTM¥170199211-199601

*12-1.25PX55-30

main91651-41022iST191..JPP..MTM¥160199211-199601

*10-1.25PX22-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCT190,ST191..JPP..MTM¥300199211-199601

*8-1.25PX45-27.5

sub90105-08430¥100

main90105-08064iAT19#..JPP¥190199211-199601

*8-1.25PX51-28

sub90105-08353¥100

main90105-08086iAT19#..JPP¥110199211-199601

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAT19#,CT190,ST191..JPP..MTM¥180199211-199601

main90341-18033iCT190,ST191..JPP..MTM¥190199211-199306

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT19#,CT190,ST191..JPP..MTM¥110199211-199601

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iAT19#,CT190,ST191..JPP..MTM¥370199211-199601

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iAT19#..JPP¥9,800199211-199601

main33102-33020iCT190,ST191..JPP..MTM¥16,300199211-199601

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT19#,CT190,ST191..JPP..MTM¥180199211-199601

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT19#,CT190,ST191..JPP..MTM¥110199211-199601

33111CASE, MANUAL TRANSMISSION

main33111-12211iAT19#..JPP¥35,000199505-199506

sub33111-16061¥35,100

main33111-16040iAT190..JPP¥35,000199211-199405

sub33111-16070¥35,000

sub90109-12073¥230

main33111-16060iAT19#..JPP¥35,000199405-199505

sub33111-16070¥35,000

sub90109-12073¥230

main33111-16061iAT19#..JPP¥35,100199506-199601

sub33111-16062¥35,100

sub90109-12073¥230

main33111-33030iCT190,ST191..JPP..MTM¥37,900199211-199411

sub33111-33040¥37,800

main33111-33031iCT190,ST191..JPP..MTM¥38,100199411-199601

sub33111-32030¥38,100

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAT19#..JPP¥120199211-199601

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT19#..JPP¥120199211-199601

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010iAT19#..JPP¥730199211-199505

main33117-32011iCT190,ST191..JPP..MTM¥2,010199211-199601

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAT19#,CT190,ST191..JPP..MTM¥180199211-199601

sub91641-H0820¥90

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT19#..JPP¥1,190199211-199503

main33124-12012iAT19#..JPP¥710199503-199601

sub33124-20050¥440

main33124-33010iCT190,ST191..JPP..MTM¥720199211-199601

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT190..JPP¥1,190199211-199405

main33124-12021iAT19#..JPP¥720199405-199601

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iAT19#..JPP¥200199211-199601

sub91611-G0820¥160

main91651-60618iCT190,ST191..JPP..MTM¥90199211-199601

33124JBOLT, W/WASHER

main91611-60820iAT19#..JPP¥200199211-199601

sub91611-G0820¥160

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAT19#..JPP¥1,760199211-199601

sub33131-12080¥1,760

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT19#..JPP¥70199211-199601

4301

4302

9161160835

main91611-60835¥90

22 parts on this diagram · 2 diagrams in section
