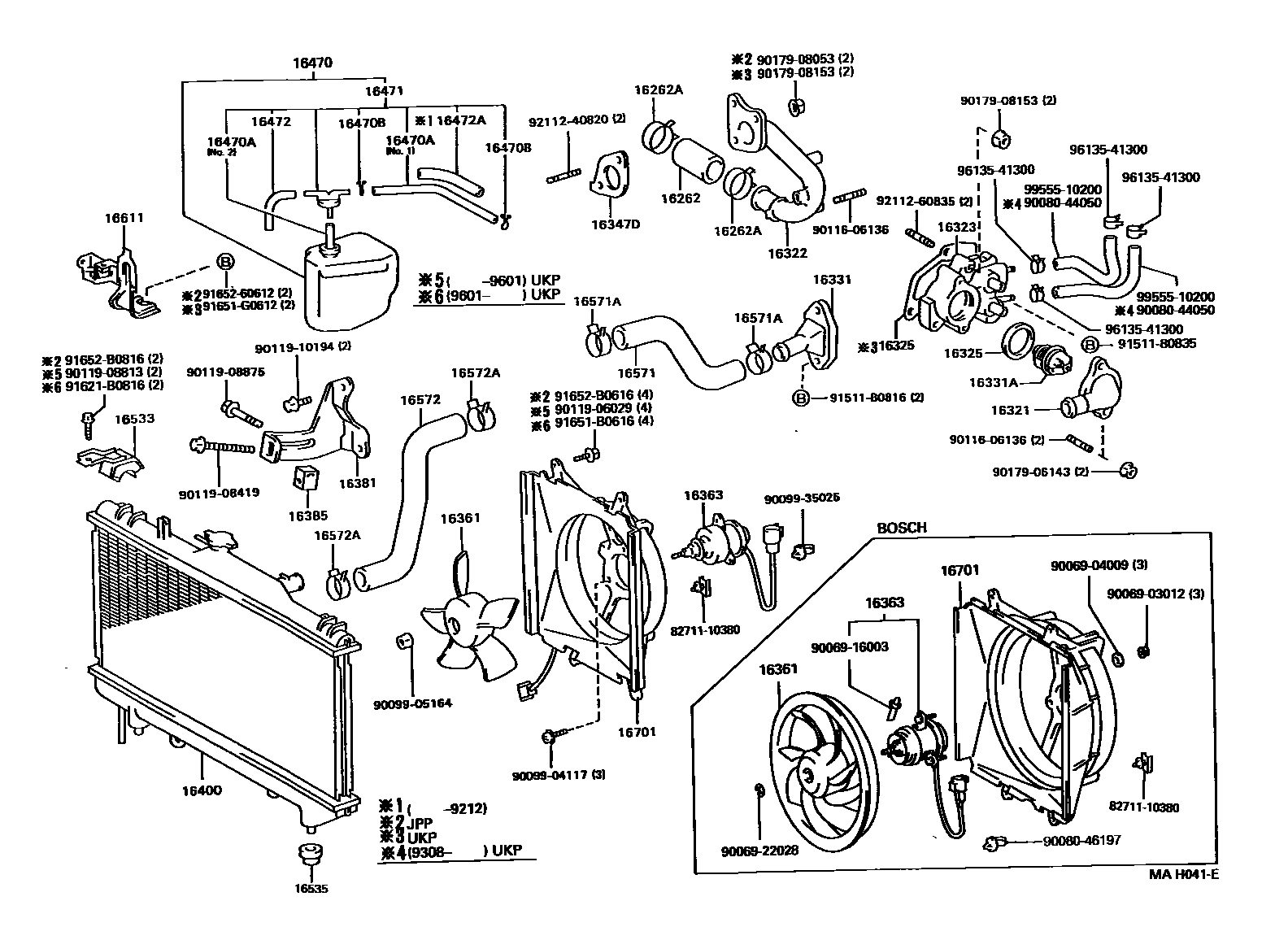

RADIATOR & WATER OUTLET
16262HOSE, WATER INLET
sub16262-16030
16262ACLIP(FOR WATER INLET HOSE)
sub90467-37005
16322PIPE, WATER INLET
16323HOUSING, WATER INLET
sub16323-16410
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16347DGASKET, WATER BY-PASS
16361FAN
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
sub16470-74230
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
*H,L=435,NO.1
L=600,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16472APROTECTOR, HOSE
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9006903012
main90069-03012
9006904009
main90069-04009
9006916003
main90069-16003
9006922028
main90069-22028
9008044050
main90080-44050
9008046197
main90080-46197
9009904117
main90099-04117
9009905164
main90099-05164
9009935025
main90099-35025
9011606136
main90116-06136
9011906029
main90119-06029
9011908419
main90119-08419
9011908813
main90119-08813
9011908875
main90119-08875
9011910194
main90119-10194
9017906143
main90179-06143
9017908053
main90179-08053
9017908153
main90179-08153
9151180835
main91511-80835
91511B0816
main91511-B0816
91621B0816
main91621-B0816
91651B0616
main91651-B0616
91651G0612
main91651-G0612
9165260612
main91652-60612
91652B0616
main91652-B0616
91652B0816
main91652-B0816
9211240820
main92112-40820
9211260835
main92112-60835
9613541300
main96135-41300
9955510200
main99555-10200
59 parts on this diagram · 5 diagrams in section
