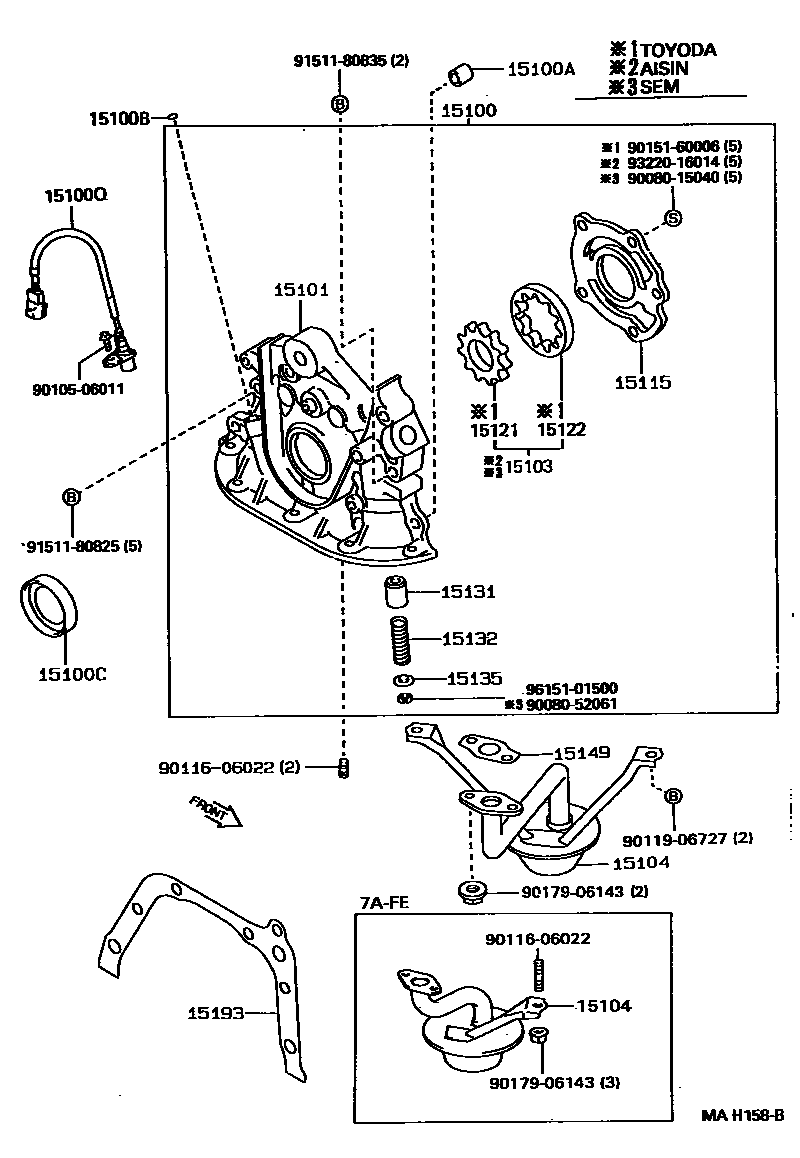

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15100PUMP ASSY, OIL

main15100-15060i4AFE..AT190..JPP199211-199601

main15100-16040i7AFE..AT191..JPP199411-199601

main15100-64040i2C..CT190..JPP199211-199601

sub15100-64041

sub90119-08B81

main15100-74010i3SFE..ST191..JPP199211-199508

sub15100-74060

sub15197-74040

main15100-74060i3SFE..ST191..JPP199508-199601

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i4AFE,7AFE..AT19#..JPP199211-199601

15100BRING, O(FOR OIL PUMP)

main15188-63010i3SFE..ST191..JPP199211-199304

main15188-88382i3SFE..ST191..JPP199304-199601

sub15188-74050

main96721-19010i4AFE,7AFE..AT19#..JPP199211-199601

15100CSEAL(FOR OIL PUMP)

main15165-70010i3SFE..ST191..JPP199211-199304

main15165-74020i3SFE..ST191..JPP199304-199601

main90029-21022i2C..CT190..JPP199211-199308

sub04151-64010

sub04151-64020

main90311-32018i4AFE,7AFE..AT19#..JPP199211-199601

sub90311-32020

15100QSENSOR, CRANK POSITION

15101BODY SUB-ASSY, OIL PUMP

main15011-15060i4AFE..AT190..JPP199211-199601

AISIN SEIKI

main15011-16040i7AFE..AT191..JPP199411-199601

AISIN SEIKI

main15101-15070i4AFE..AT190..JPP199211-199601

TOYODA KOUKI

main15101-16050i7AFE..AT191..JPP199411-199601

TOYODA KOUKI

main15101-64030i2C..CT190..JPP199211-199308

sub15100-64031

sub15100-64042

sub90119-08B81

15103GEAR SET, OIL PUMP

main15103-15020i4AFE..AT190..JPP199211-199601

main15103-16040i7AFE..AT191..JPP199411-199601

15104STRAINER SUB-ASSY, OIL

main15104-15090i4AFE..AT190..JPP199211-199601

main15104-16060i7AFE..AT191..JPP199411-199601

main15104-64070i2C..CT190..JPP199211-199601

main15104-88380i3SFE..ST191..JPP199211-199601

15115COVER, OIL PUMP

main15115-15020i4AFE,7AFE..AT19#..JPP199211-199601

AISIN SEIKI

main15115-16060i4AFE,7AFE..AT19#..JPP199211-199601

TOYODA KOUKI

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AFE..AT190..JPP199211-199601

main15121-16050i7AFE..AT191..JPP199411-199601

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AFE..AT190..JPP199211-199601

main15122-16050i7AFE..AT191..JPP199411-199601

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AFE,7AFE..AT19#..JPP199211-199601

TOYODA KOUKI

main15131-24010i4AFE,7AFE..AT19#..JPP199211-199601

AISIN SEIKI

main15131-64020i2C..CT190..JPP199211-199601

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AFE,7AFE..AT19#..JPP199211-199601

TOYODA KOUKI

main15132-40010i3SFE..ST191..JPP199211-199601

AISIN SEIKI

main15132-64012i2C..CT190..JPP199211-199601

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AFE,7AFE..AT19#..JPP199211-199601

AISIN SEIKI

main15135-15030i4AFE,7AFE..AT19#..JPP199211-199601

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-16010i4AFE,7AFE..AT19#..JPP199211-199601

15193GASKET, OIL PUMP

main15193-64021i2C..CT190..JPP199211-199601

sub15193-64022

main15197-15012i4AFE..AT190..JPP199211-199408

sub15197-15030

main15197-15030i4AFE..AT190..JPP199408-199601

sub15197-16030

main15197-16010i7AFE..AT191..JPP199411-199601

main15197-63021i3SFE..ST191..JPP199211-199309

main15197-74030i3SFE..ST191..JPP199309-199508

main15197-74040i3SFE..ST191..JPP199508-199601

9008015040

main90080-15040

9008052061

main90080-52061

9010506011

main90105-06011

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

27 parts on this diagram · 4 diagrams in section
