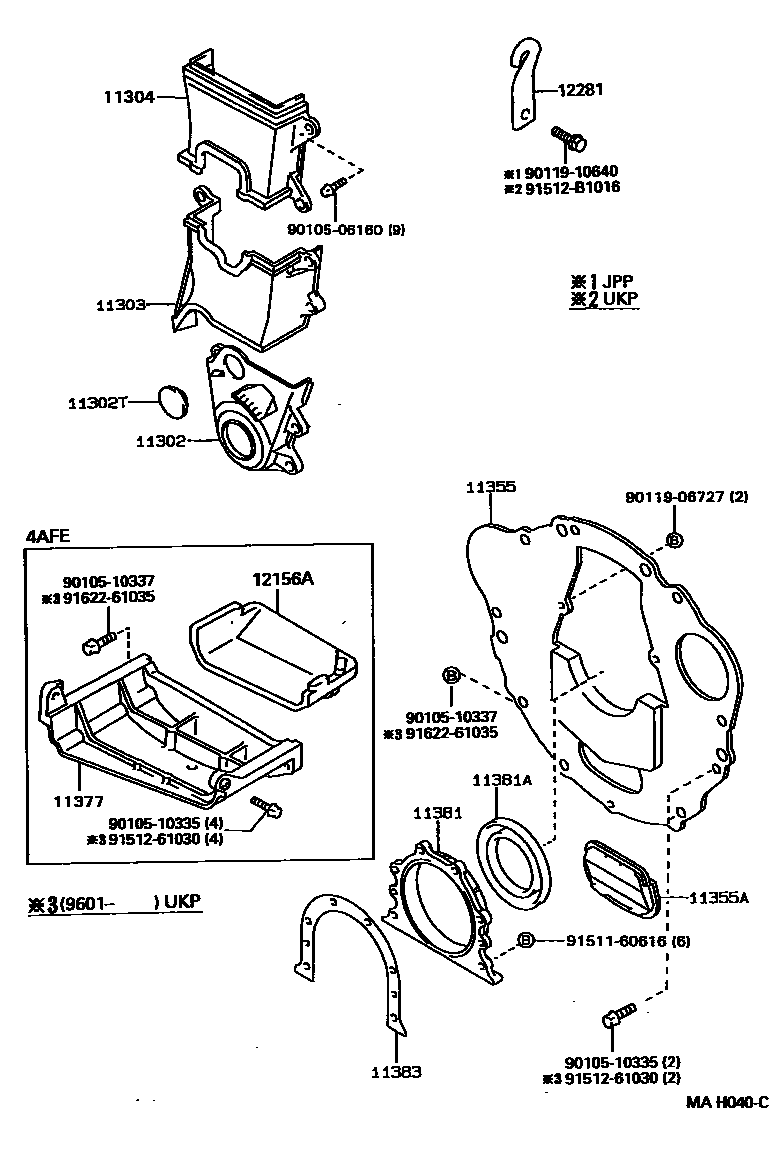

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302TPLUG, HOLE
11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11304COVER, TIMING CHAIN OR BELT, NO.2
11355APLUG, HOLE(FOR REAR END PLATE)
11383GASKET, ENGINE REAR OIL SEAL RETAINER
12156AINSULATOR, OIL PAN
12281HANGER, ENGINE, NO.1
9010506160
main90105-06160
9010510335
main90105-10335
9010510337
main90105-10337
9011906727
main90119-06727
9011910640
main90119-10640
9151160616
main91511-60616
9151261030
main91512-61030
91512B1016
main91512-B1016
9162261035
main91622-61035
21 parts on this diagram · 3 diagrams in section
