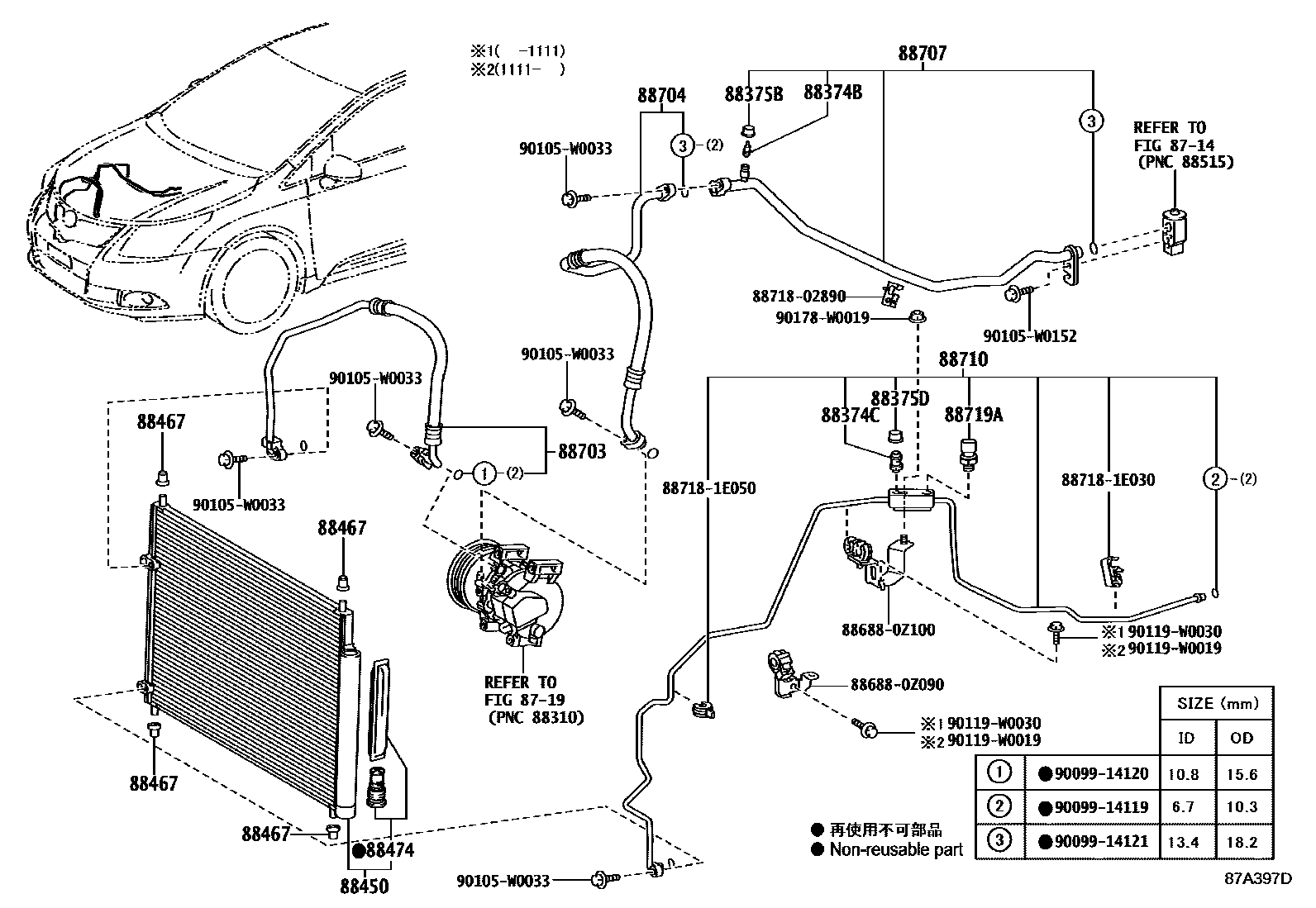

HEATING & AIR CONDITIONING - COOLER PIPING

Parts diagram
8714
8719
88374BVALVE, SERVICE, NO.1
main88374-30010i201505
BASE PACKAGE
main88374-30010i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88374-30010i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88374-30010i200811-201505
88374CVALVE, SERVICE, NO.2
main88374-30010i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88374-30010i201505
BASE PACKAGE
main88374-30010i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88374-30010i200811-201505
main88374-33070i200811-201505
88375BCAP, SERVICE VALVE, NO.1
main88375-30290i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88375-30290i200811-201505
main88375-30290i201505-201607
BASE PACKAGE
main88375-30290i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88375-30310i201607
BASE PACKAGE
main88375-30310i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88375-30310i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
88375DCAP, SERVICE VALVE, NO.2
main88375-30280i200811-201505
main88375-30280i201505-201607
BASE PACKAGE
main88375-30280i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88375-30280i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88375-30320i201607
BASE PACKAGE
main88375-30320i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88375-30320i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
88450CONDENSER ASSY, W/RECEIVER
main88450-02280i201607
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE
main88450-02280i200811-201111
main88450-02280i201505-201606
BASE PACKAGE
main88450-02280i201505-201606
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88450-02280i201505-201606
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88450-02520i201505-201606
BASE PACKAGE
main88450-02520i201505-201606
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88450-05220i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88450-05220i201607
BASE PACKAGE
main88450-0F170i201607
BASE PACKAGE
main88450-0F170i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88450-0F170i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88450-12280i201111-201505
BASE PACKAGE
88467CUSHION, COOLER CONDENSER, NO.1
main16716-28010i201111-201505
BASE PACKAGE
main16716-28010i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main16716-28010i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main16716-28010i200811-201111
88474DRYER, COOLER
main88474-12010i201505-201606
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88474-12010i201505-201606
BASE PACKAGE
main88474-12030i201111-201505
BASE PACKAGE
main88474-17010i201505-201606
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88474-17010i200811-201606
BASE PACKAGE
main88474-17010i200811-201111
AIR CONDITIONER-WITHOUT
main88474-17010i201505-201606
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
88703HOSE SUB-ASSY, DISCHARGE
main88703-05350i200811-201505
main88703-05360i200811-201505
main88703-05380i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88703-05380i201505-201607
BASE PACKAGE
main88703-05380i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88703-05390i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88703-05390i201505
BASE PACKAGE
main88703-05410i201607
BASE PACKAGE
main88703-05410i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88703-05410i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
88704HOSE SUB-ASSY, SUCTION
main88704-05380i200811-201505
main88704-05390i200811-201505
main88704-05600i201505
main88704-0F090i201505-201607
BASE PACKAGE
main88704-0F090i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88704-0F090i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88704-0F100i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88704-0F100i201607
BASE PACKAGE
main88704-0F100i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88704-0F120i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88704-0F120i201607
BASE PACKAGE
main88704-0Z130i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88704-0Z130i201505-201607
BASE PACKAGE
88707PIPE SUB-ASSY, SUCTION
main88707-02190i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88707-02190i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88707-02190i201607
BASE PACKAGE
main88707-02200i201505
main88707-02200i201505-201607
BASE PACKAGE
main88707-02200i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88707-02200i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88707-05070i200811-201505
88710TUBE ASSY, AIR CONDITIONER
main88710-05410i200811-201505
main88710-05420i200811-201505
main88710-05500i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88710-05500i201505-201607
BASE PACKAGE
main88710-05500i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88710-05510i201505-201607
BASE PACKAGE
main88710-05510i201505-201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88710-05520i201505
main88710-05530i201607
BASE PACKAGE
main88710-05530i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88710-05530i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
main88710-05540i201607
BASE PACKAGE
main88710-05540i201607
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
88719ASENSOR, AIR CONDITIONER PRESSURE
main88719-33020i200811-201505
main88719-33020i201505
BASE PACKAGE
main88719-33020i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)
main88719-33020i201505
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-REAR SPEAKER LESS&WITH(AUDIOLESS COVER
886880Z090BRACKET, COOLER DIAPHRAGM
main88688-0Z090
886880Z100BRACKET, COOLER DIAPHRAGM
main88688-0Z100
8871802890PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-02890
887181E030PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-1E030
887181E050PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-1E050
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
90105W0033
main90105-W0033
90105W0152
main90105-W0152
90119W0019
main90119-W0019
90119W0030
main90119-W0030
90178W0019
main90178-W0019

27 parts on this diagram · 5 diagrams in section
