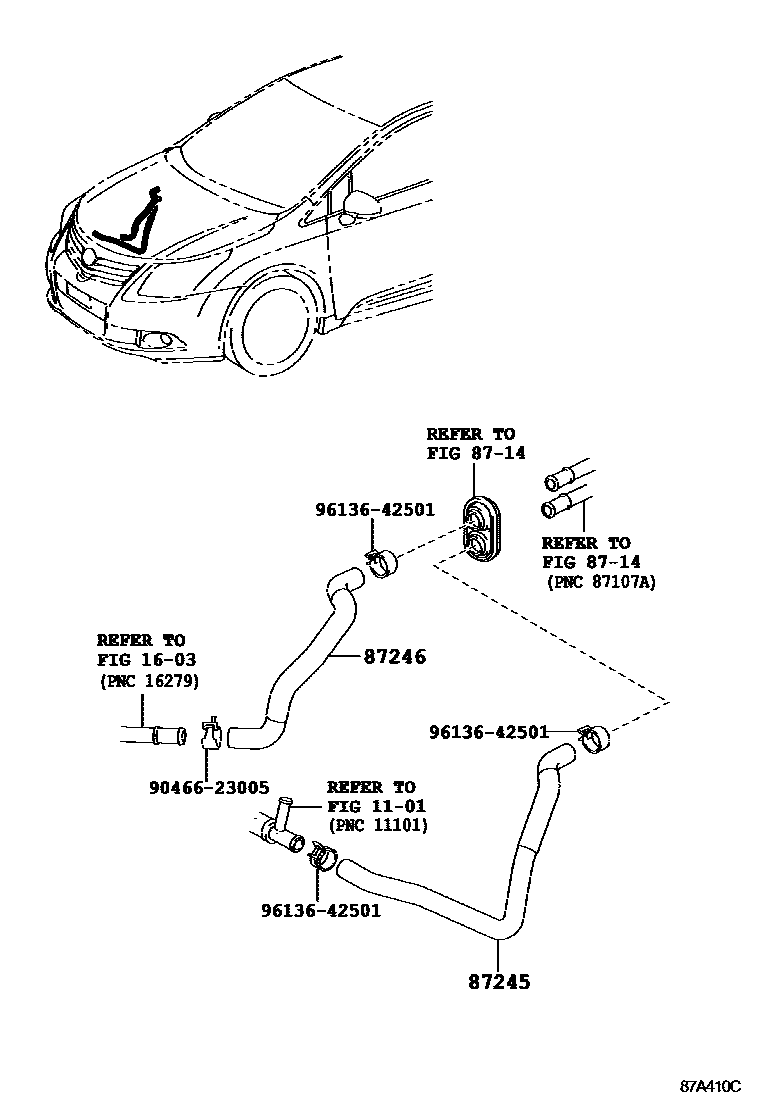

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1W(STOVE HEATER) 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1W(STOVE HEATER)

1101

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-05050iZRT272..CVT200811-201211

main87209-05051iZRT272..CVT201212-201505

main87209-05070iWWT27#201505

PTC HEATER-WITHOUT & WITH(STOVE HEATER)

main87209-05080iZRT272..HTWVM201505

main87245-02A10iZRT270,271200811-201207

sub87245-02P00

main87245-02M40iADT27#201111-201505

ENGINE-1AD-FTV&HEATER-WITH(STOVE HEATER)

main87245-02M40iADT27#201111-201505

HEATER-WITH(STOVE HEATER)

main87245-02P00iZRT270,271201208-201505

main87245-05690iZRT272..6F..HTWVM;ZRT272..LHD..HTWC200811-201111

main87245-05700iZRT272..HTWC201111-201505

main87245-05710iADT27#200811-200906

sub87245-05711

main87245-05711iADT271;ADT270..RHD;ADT270..LHD..(E,N)200907-201111

87246HOSE, HEATER WATER, OUTLET

main87209-05040iZRT271..CVT200811-201211

main87209-05041iZRT271..CVT201212-201505

main87245-02A20iZRT270,271..6F200811-201505

main87245-02A90iADT27#200811-200906

sub87245-02A91

main87245-02A91iADT271;ADT270..RHD;ADT270..LHD..(E,N)200907-201110

main87245-02A92iADT27#201110-201111

main87245-02M50iADT270..LHD201111-201505

ENGINE-1AD-FTV&HEATER-WITH(STOVE HEATER)

main87245-02M50iADT270..LHD201111-201505

HEATER-WITH(STOVE HEATER)

main87245-05690iZRT272200811-201505

main87245-05700iZRT272..6F..HTWVM;ZRT272..LHD..HTWC200811-201111

main87245-05730iWWT27#201505

9046623005

main90466-23005

9613642501

main96136-42501

7 parts on this diagram · 8 diagrams in section
