E
EPC Data

MIRROR

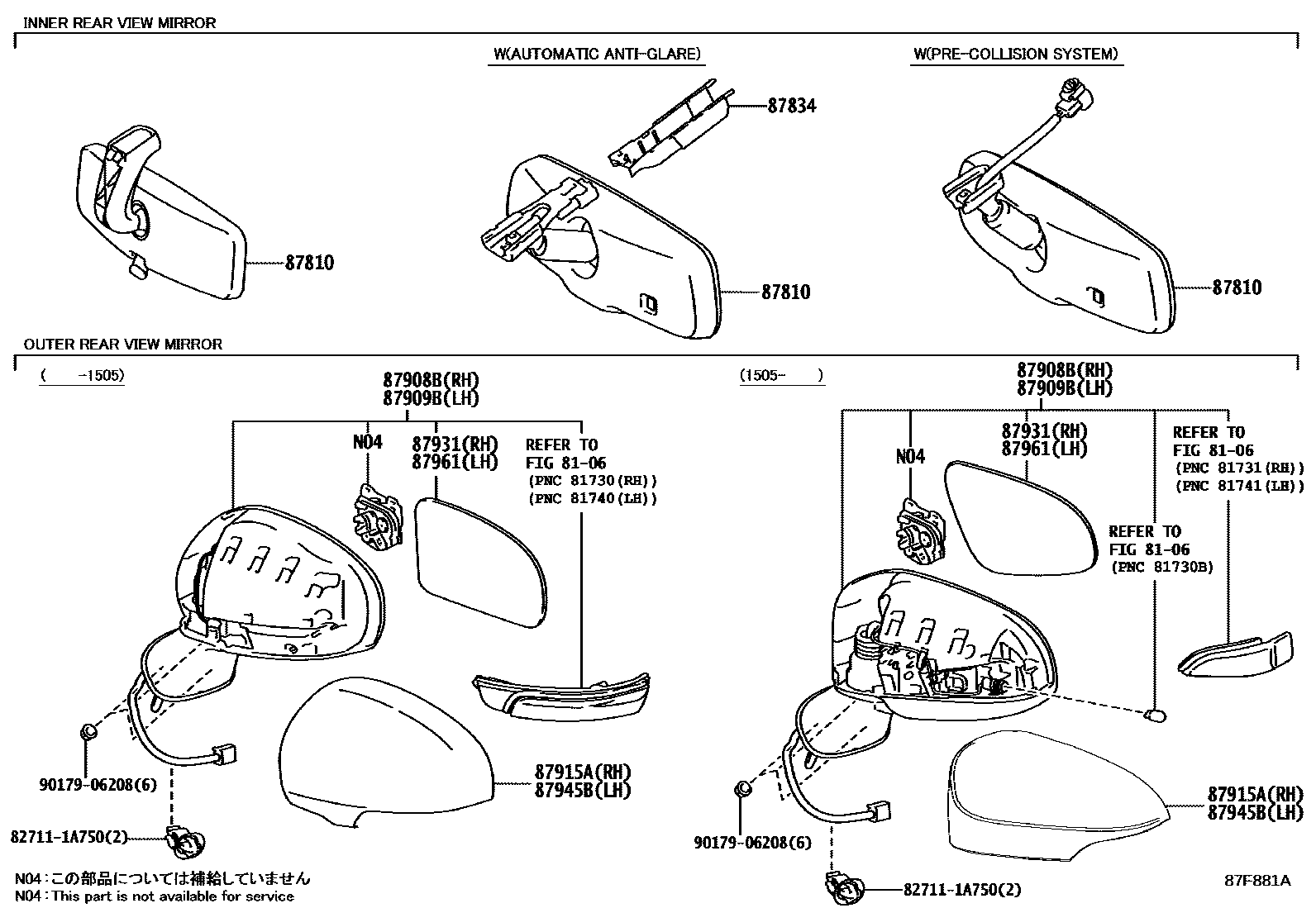

Parts diagram
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-0F010i200811-201104
main87810-0F050i201111-201402
main87810-0W810i201402-201505
main87810-0WQ50i201505
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
main87810-05050i201111-201406
SOL GRADE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER
main87810-05051i201407-201505
SOL GRADE&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0F030i201402-201505
main87818-33010i200811-201111
main87818-02070i201402-201505
CRUISE CONTROL-WITH(W/RADAR CRUISE)&HEADLAMP-DISCHARGE & AFS&AUDIO-DISPLAY AUDIO &11SPEAKER & DAB
87908BMIRROR SUB-ASSY, RH
main87908-05400-A0supersedes 87908-05410-A0i200811-201111
SUPER WHITE 2,040
sub87908-05900
main87908-05400-A1i201302-201505
WHITE PEARL CS.,070
sub87908-05900
main87908-05400-B0supersedes 87908-05410-B0i201111-201505
GRAY ME.,1G3
sub87908-05900
main87908-05400-B1supersedes 87908-05410-B1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),SILVER ME.,1F7
sub87908-05900
main87908-05400-B2supersedes 87908-05410-B2i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),GRAY ME.,1G6
sub87908-05900
main87908-05400-B3supersedes 87908-05410-B3i201006-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK. STEEL MC.,1H2
sub87908-05900
main87908-05400-C0supersedes 87908-05410-C0i200811-201111
BLACK MC.,209
sub87908-05900
main87908-05400-D0supersedes 87908-05410-D0i200811-201111
RED M.M.,3R3
sub87908-05900
main87908-05400-D1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),DK RED MC,3Q7
sub87908-05900
main87908-05400-E0i201402-201505
AVANT-GARDE BRONZE ME.,4V8
sub87908-05900
main87908-05400-G0supersedes 87908-05410-G0i201111-201302
OLIVE M.M.,6T7
sub87908-05900
main87908-05400-J0supersedes 87908-05410-J0i200811-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK.BLUE MC.,8S6
sub87908-05900
main87908-05400-J1supersedes 87908-05410-J1i200811-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK.BLUE ME.,8U5
sub87908-05900
main87908-05400-K0i200811-201006
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK.PURPLE,9AK
sub87908-05900
main87908-05410-A0i200811-201111
SUPER WHITE 2,040
sub87908-05901
main87908-05410-A1i201302-201505
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),WHITE PEARL CS.,070
sub87908-05901
main87908-05410-B0i201111-201505
GRAY ME.,1G3
sub87908-05901
main87908-05410-B1i201111-201505
SILVER ME.,1F7
sub87908-05901
main87908-05410-B2i200811-201111
GRAY ME.,1G6 ,3R3
sub87908-05901
main87908-05410-B3i201006-201111
OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),DK. STEEL MC.,1H2
sub87908-05901
main87908-05410-C0i200811-201111
BASE PACKAGE,BLACK MC.,209
sub87908-05901
main87908-05410-D0i200811-201111
BASE PACKAGE,RED M.M.,3R3
sub87908-05901
main87908-05410-D1i201111-201505
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),DK RED MC,3Q7
sub87908-05901
main87908-05410-E0i201402-201505
AVANT-GARDE BRONZE ME.,4V8
sub87908-05901
main87908-05410-G0i200811-201111
BASE PACKAGE,OLIVE M.M.,6T7
sub87908-05901
main87908-05410-J0i200811-201111
BASE PACKAGE,DK.BLUE MC.,8S6
sub87908-05901
main87908-05410-J1i201111-201505
BASE PACKAGE,DK.BLUE ME.,8U5
sub87908-05901
main87908-05410-K0i200811-201006
DK.PURPLE,9AK
sub87908-05901
main87908-05420-A0i201111-201505
SUPER WHITE 2,040
sub87908-05902
main87908-05420-A1i201302-201505
WHITE PEARL CS.,070
sub87908-05902
main87908-05420-B0i200811-201111
GRAY ME.,1G3 ,8S6
sub87908-05902
main87908-05420-B1supersedes 87908-05430-B1i200811-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),SILVER ME.,1F7
sub87908-05902
main87908-05420-B2supersedes 87908-05430-B2i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),GRAY ME.,1G6
sub87908-05902
main87908-05420-B3i201006-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK. STEEL MC.,1H2
sub87908-05902
main87908-05420-C0supersedes 87908-05430-C0i201111-201505
BLACK MC.,209
sub87908-05902
main87908-05420-D0supersedes 87908-05430-D0i200811-201111
RED M.M.,3R3
sub87908-05902
main87908-05420-D1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),DK RED MC,3Q7
sub87908-05902
main87908-05420-E0i201402-201505
AVANT-GARDE BRONZE ME.,4V8
sub87908-05902
main87908-05420-G0supersedes 87908-05430-G0i201111-201302
OLIVE M.M.,6T7
sub87908-05902
main87908-05420-J0supersedes 87908-05430-J0i201111-201402
DK.BLUE MC.,8S6
sub87908-05902
main87908-05420-J1supersedes 87908-05430-J1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),DK.BLUE ME.,8U5
sub87908-05902
main87908-05420-K0i200811-201006
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK.PURPLE,9AK
sub87908-05902
main87908-05430-A0i200811-201111
SUPER WHITE 2,040
sub87908-05903
main87908-05430-A1i201302-201505
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),WHITE PEARL CS.,070
sub87908-05903
main87908-05430-B0i200811-201104
GRAY ME.,1G3
sub87908-05903
main87908-05430-B1i200811-201111
SILVER ME.,1F7
sub87908-05903
main87908-05430-B2i200811-201111
BASE PACKAGE,GRAY ME.,1G6
sub87908-05903
main87908-05430-B3i201006-201111
DK. STEEL MC.,1H2
sub87908-05903
main87908-05430-C0i201111-201505
BASE PACKAGE,BLACK MC.,209
sub87908-05903
main87908-05430-D0i200811-201111
BASE PACKAGE,RED M.M.,3R3
sub87908-05903
main87908-05430-D1i201111-201505
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),DK RED MC,3Q7
sub87908-05903
main87908-05430-E0i201402-201505
AVANT-GARDE BRONZE ME.,4V8
sub87908-05903
main87908-05430-G0i201111-201302
BASE PACKAGE,OLIVE M.M.,6T7
sub87908-05903
main87908-05430-J0i201111-201402
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),DK.BLUE MC.,8S6
sub87908-05903
main87908-05430-J1i200811-201111
DK BLUE ME.,8U5
sub87908-05903
main87908-05430-K0i200811-201006
DK.PURPLE,9AK
sub87908-05903
main87910-05440i201505
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE
main87910-05450i201505
BASE PACKAGE
main87910-05460i201505
main87910-05470i201505
BASE PACKAGE
87909BMIRROR SUB-ASSY, LH
main87909-05380-A0supersedes 87909-05390-A0i200811-201111
SUPER WHITE 2,040
sub87909-05900
main87909-05380-A1i201302-201505
WHITE PEARL CS.,070
sub87909-05900
main87909-05380-B0supersedes 87909-05390-B0i200811-201111
GRAY ME.,1G3
sub87909-05900
main87909-05380-B1supersedes 87909-05390-B1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),SILVER ME.,1F7
sub87909-05900
main87909-05380-B2supersedes 87909-05390-B2i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),GRAY ME.,1G6
sub87909-05900
main87909-05380-B3supersedes 87909-05390-B3i201006-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK. STEEL MC.,1H2
sub87909-05900
main87909-05380-C0supersedes 87909-05390-C0i201111-201505
BLACK MC.,209
sub87909-05900
main87909-05380-D0supersedes 87909-05390-D0i200811-201111
RED M.M.,3R3
sub87909-05900
main87909-05380-D1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),DK RED MC,3Q7
sub87909-05900
main87909-05380-E0i201402-201505
AVANT-GARDE BRONZE ME.,4V8
sub87909-05900
main87909-05380-G0supersedes 87909-05390-G0i201111-201302
OLIVE M.M.,6T7
sub87909-05900
main87909-05380-J0supersedes 87909-05390-J0i200811-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK.BLUE MC.,8S6
sub87909-05900
main87909-05380-J1supersedes 87909-05390-J1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),DK.BLUE ME.,8U5
sub87909-05900
main87909-05380-K0i200811-201006
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK.PURPLE,9AK
sub87909-05900
main87909-05390-A0i201111-201505
SUPER WHITE 2,040
sub87909-05901
main87909-05390-A1i201302-201505
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),WHITE PEARL CS.,070
sub87909-05901
main87909-05390-B0i200811-201111
GRAY ME.,1G3
sub87909-05901
main87909-05390-B1i201111-201505
SILVER ME.,1F7
sub87909-05901
main87909-05390-B2i201111-201505
GRAY ME.,1G6
sub87909-05901
main87909-05390-B3i201006-201111
BASE PACKAGE,DK. STEEL. MC.,1H2
sub87909-05901
main87909-05390-C0i201111-201505
BASE PACKAGE,BLACK MC.,209
sub87909-05901
main87909-05390-D0i200811-201111
BASE PACKAGE,RED M.M.,3R3
sub87909-05901
main87909-05390-D1i201111-201505
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),DK RED MC,3Q7
sub87909-05901
main87909-05390-E0i201402-201505
BASE PACKAGE,AVANT-GARDE BRONZE ME.,4V8
sub87909-05901
main87909-05390-G0i201111-201302
BASE PACKAGE,OLIVE M.M.,6T7
sub87909-05901
main87909-05390-J0i201111-201402
BASE PACKAGE,DK.BLUE MC.,8S6
sub87909-05901
main87909-05390-J1i200811-201111
BASE PACKAGE,DK.BLUE ME.,8U5
sub87909-05901
main87909-05390-K0i200811-201006
DK.PURPLE,9AK
sub87909-05901
main87909-05400-A0i201111-201505
SUPER WHITE 2,040
sub87909-05902
main87909-05400-A1i201302-201505
WHITE PEARL CS.,070
sub87909-05902
main87909-05400-B0i200811-201111
GRAY ME.,1G3 ,8S6
sub87909-05902
main87909-05400-B1supersedes 87909-05410-B1i200811-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),SILVER ME.,1F7
sub87909-05902
main87909-05400-B2supersedes 87909-05410-B2i200811-201111
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),GRAY ME.,1G6
sub87909-05902
main87909-05400-B3i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),DK. STEEL MC.,1H2
sub87909-05902
main87909-05400-C0supersedes 87909-05410-C0i201111-201505
BLACK MC.,209
sub87909-05902
main87909-05400-D0supersedes 87909-05410-D0i200811-201111
RED M.M.,3R3
sub87909-05902
main87909-05400-D1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),DK RED MC,3Q7
sub87909-05902
main87909-05400-E0i201402-201505
AVANT-GARDE BRONZE ME.,4V8
sub87909-05902
main87909-05400-G0supersedes 87909-05410-G0i201111-201302
OLIVE M.M.,6T7
sub87909-05902
main87909-05400-J0supersedes 87909-05410-J0i201111-201402
DK.BLUE MC.,8S6
sub87909-05902
main87909-05400-J1supersedes 87909-05410-J1i201111-201505
OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),DK.BLUE ME.,8U5
sub87909-05902
main87909-05400-K0i200811-201006
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),DK.PURPLE,9AK
sub87909-05902
main87909-05410-A0i201111-201505
SUPER WHITE 2,040
sub87909-05903
main87909-05410-A1i201302-201505
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),WHITE PEARL CS.,070
sub87909-05903
main87909-05410-B0i201111-201505
GRAY ME.,1G3
sub87909-05903
main87909-05410-B1i200811-201111
SILVER ME.,1F7
sub87909-05903
main87909-05410-B2i200811-201111
BASE PACKAGE,GRAY ME.,1G6
sub87909-05903
main87909-05410-B3i201006-201111
OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),DK. STEEL MC.,1H2
sub87909-05903
main87909-05410-C0i200811-201111
BASE PACKAGE,BLACK MC.,209
sub87909-05903
main87909-05410-D0i200811-201111
BASE PACKAGE,RED M.M.,3R3
sub87909-05903
main87909-05410-D1i201111-201505
OUTER REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),DK RED MC,3Q7
sub87909-05903
main87909-05410-E0i201402-201505
BASE PACKAGE,AVANT-GARDE BRONZE ME.,4V8
sub87909-05903
main87909-05410-G0i201111-201302
BASE PACKAGE,OLIVE M.M.,6T7
sub87909-05903
main87909-05410-J0i201111-201402
BASE PACKAGE,DK.BLUE MC.,8S6
sub87909-05903
main87909-05410-J1i200811-201111
BASE PACKAGE,DK.BLUE ME.,8U5
sub87909-05903
main87909-05410-K0i200811-201006
DK.PURPLE,9AK
sub87909-05903
main87940-05420i201505
OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE
main87940-05430i201505
BASE PACKAGE
main87940-05440i201505
main87940-05450i201505
BASE PACKAGE
87915ACOVER, OUTER MIRROR, RH
main87915-02370-A0i201505
SUPER WHITE 2,040
sub87915-02925
main87915-02370-A1i201505
WHITE PEARL CS.,070
sub87915-02925
main87915-02370-B0i201505
SILVER ME.,1F7
sub87915-02925
main87915-02370-B1i201505
GRAY ME.,1G6
sub87915-02925
main87915-02370-B2i201505-201710
DK. STEEL MC.,1H2
sub87915-02925
main87915-02370-B3i201505
GRAY ME.,1G3
sub87915-02925
main87915-02370-B4i201604
GRAY ME.,1G2
sub87915-02925
main87915-02370-B5i201710
CEMENT GRAY ME.,1H5
sub87915-02925
main87915-02370-C0i201505
BLACK MC.,209
sub87915-02925
main87915-02370-D1i201610
RED MC.,3T3
sub87915-02925
main87915-02370-E0i201505-201604
AVANT-GARDE BRONZE ME.,4V8
sub87915-02925
main87915-02370-E1i201505-201610
DK. BROWN M.M.,4U3
sub87915-02925
main87915-02370-J3i201505
DK.BLUE MC.,8T5
sub87915-02925
main87915-05913i201111-201505
87931OUTER MIRROR, RH
main87931-05400i200811-201104
main87931-05420i200811-201111
main87931-05440i201505
main87931-05460i201505
87945BCOVER, OUTER MIRROR, LH
main87945-02380-A0i201505
SUPER WHITE 2,040
sub87945-02925
main87945-02380-A1i201505
WHITE PEARL CS.,070
sub87945-02925
main87945-02380-B0i201505
SILVER ME.,1F7
sub87945-02925
main87945-02380-B1i201505
GRAY ME.,1G6
sub87945-02925
main87945-02380-B2i201505-201710
DK. STEEL MC.,1H2
sub87945-02925
main87945-02380-B3i201505
GRAY ME.,1G3
sub87945-02925
main87945-02380-B4i201604
GRAY ME.,1G2
sub87945-02925
main87945-02380-B5i201710
CEMENT GRAY ME.,1H5
sub87945-02925
main87945-02380-C0i201505
BLACK MC.,209
sub87945-02925
main87945-02380-D1i201610
RED MC.,3T3
sub87945-02925
main87945-02380-E0i201505-201604
AVANT-GARDE BRONZE ME.,4V8
sub87945-02925
main87945-02380-E1i201505-201610
DK. BROWN M.M.,4U3
sub87945-02925
main87945-02380-J3i201505
DK.BLUE MC.,8T5
sub87945-02925
main87945-05913i200811-201104
87961MIRROR OUTER, LH
main87961-05380i201111-201505
main87961-05400i201111-201505
main87961-05420i201505
main87961-05421i201505
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9017906208
main90179-06208

11 parts on this diagram · 1 diagram in section

MIRROR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
